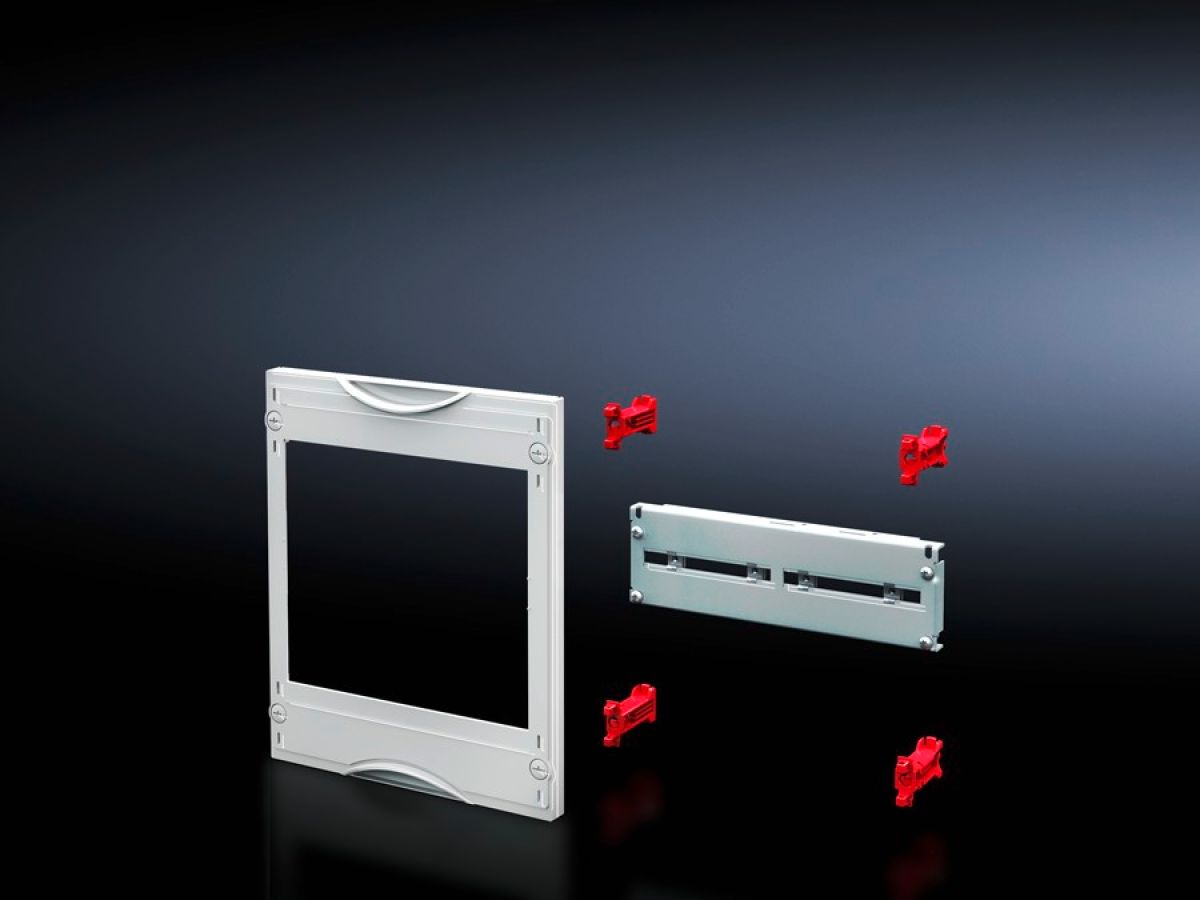

Rittal SV 9666.390, NH fuse-switch-disconnector module
Rittal SV 9666.390, NH fuse-switch-disconnector module
Regular price
€63,04
Regular price
Sale price
€63,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.390
Suitable for accommodating RiLine NH fuse-switch disconnectors for mounting plate assembly. Cover is prepared for a lead seal.
| Article number: | SV 9666.390 |
| Product description | Suitable for accommodating NH fuse-switch disconnectors for mounting plate assembly. Cover is prepared for a lead seal. |
| Material | Cover: PolystyreneCross member: Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Assembly instruction | When using the NH fuse-switch disconnector 2 x size 2 (9344.210/.230/.250) or 1 x size 3 (9344.310/.330/.350), the disconnector cross-member 9666.420 and contact hazard protection module 9666.060 should be used as the module unit. |
| Dimensions | Width: 500 mmHeight: 300 mm |
| Size | Width units (WU) @ 250 mm: 2Height units (U) @ 150 mm: 2 |
| To fit Model No. | 9344.000 |
| For size | 4 x Gr. 00 |
| Packs of | 1 pc(s). |
| Net weight | 1.59 kg |
| Gross weight | 1.6 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177676350 |
| ETIM 9 | EC001893 |
| ECLASS 8.0 | 27400608 |
| Product description | SV NH fuse-switch disconnector module (ISV), 2 WU (500 mm), 2 U (300 mm), for 4 x size 00 |
