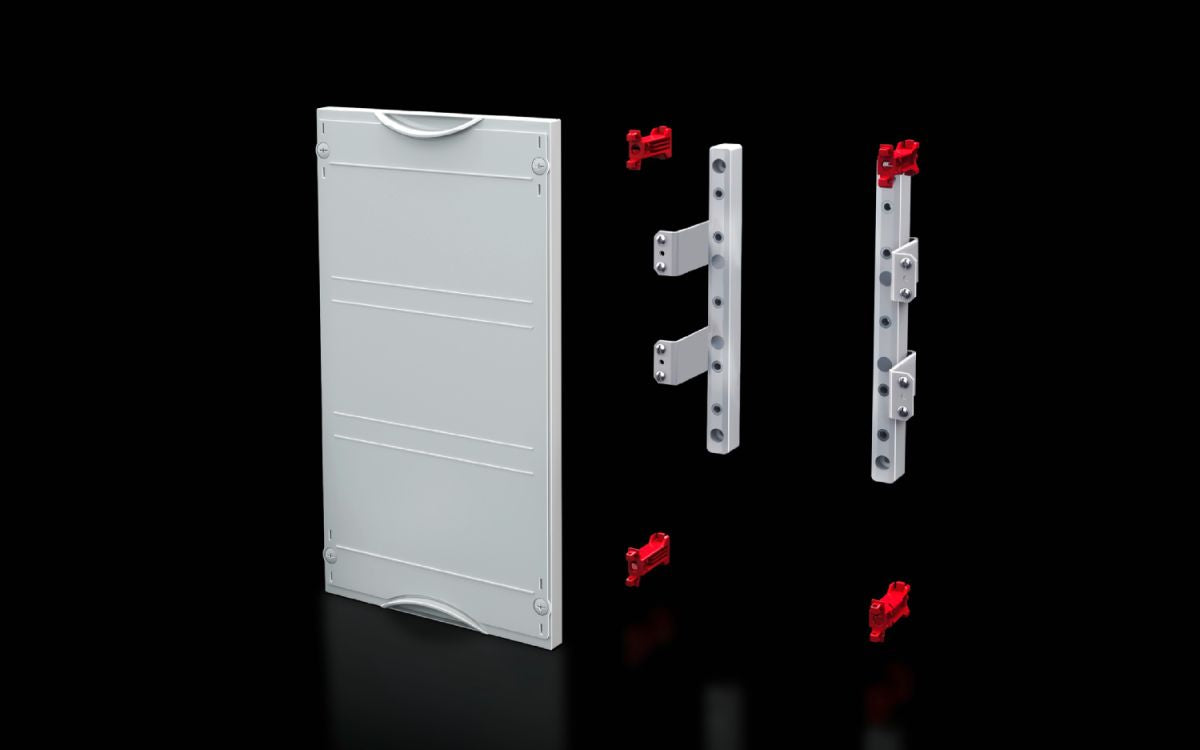

Rittal SV 9666.583, NH slimline fuse-switch-disconnector module
Rittal SV 9666.583, NH slimline fuse-switch-disconnector module
Regular price
€157,43
Regular price
Sale price
€157,43
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.583
For NH slimline fuse-switch disconnectors, sizes 00 to 3 (3-pole, 100/185 mm bar centre distance).
| Article number: | SV 9666.583 |
| Product description | For NH slimline fuse-switch disconnectors, sizes 00 to 3 (3-pole, 100/185 mm bar centre distance). |
| Material | Cover: PolystyreneHolder: Fibreglass-reinforced plastic |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Note | In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules. |
| Dimensions | Width: 750 mmHeight: 450 mm |
| Size | Width units (WU) @ 250 mm: 3Height units (U) @ 150 mm: 3 |
| For size | 10 x Gr. 00 |
| To fit Model No. | 9346.020 |
| To fit busbars | 40 x 10 mm |
| Centre-to-centre spacing of busbars | 100 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.33 kg |
| Gross weight | 3.34 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177676473 |
| ETIM 9 | EC001893 |
| ECLASS 8.0 | 27400608 |
| Product description | SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm) |
