Rittal

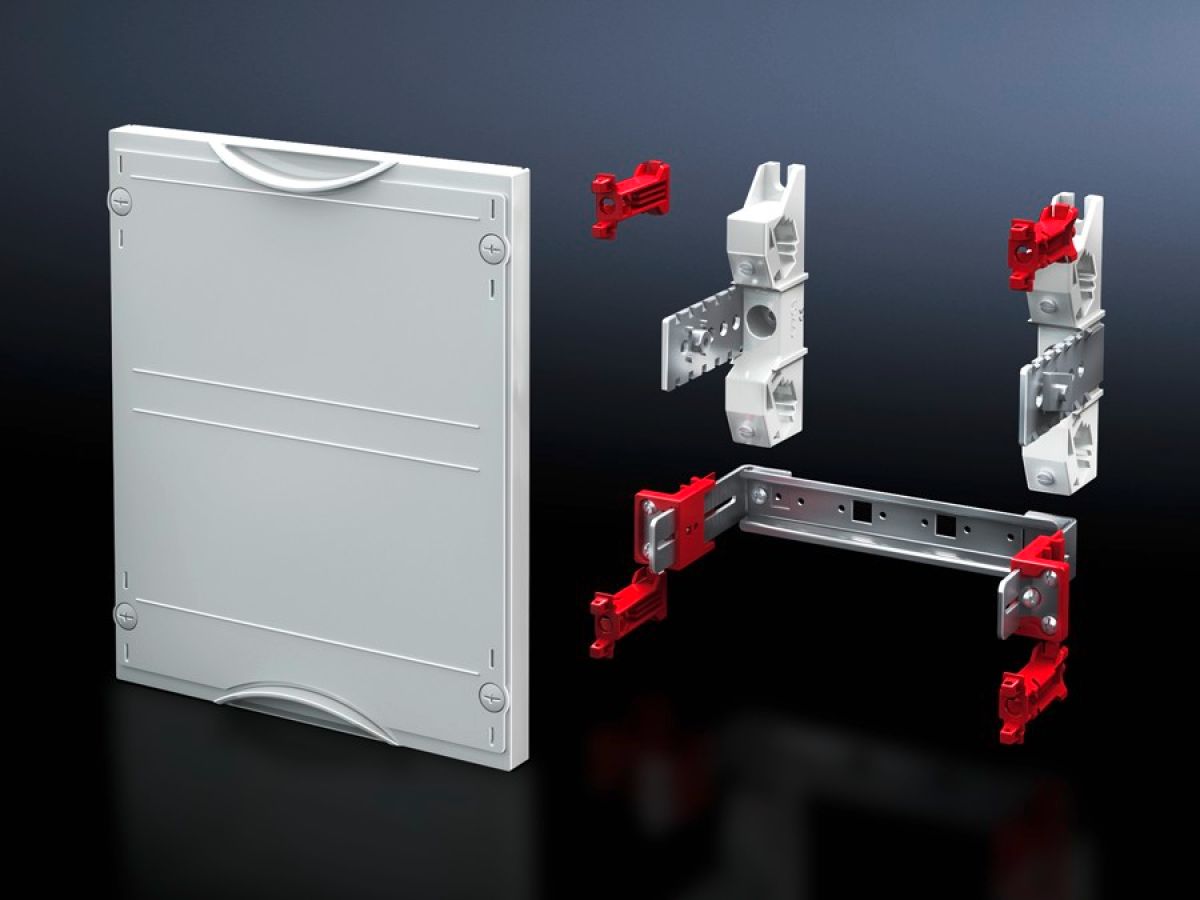

Rittal SV 9666.590, Busbar module N/PE
Rittal SV 9666.590, Busbar module N/PE
Regular price
€62,61
Regular price
Sale price
€62,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.590
For attaching busbars for N and PE Cover is prepared for a lead seal.
| Article number: | SV 9666.590 |
| Product description | For attaching busbars 12 x 5/10 mm, 20 x 5/10 and 30 x 5/10 mm for N and PE. Cover is prepared for a lead seal. |
| Material | Cover: PolystyreneHolder: Fibreglass-reinforced plasticSupport rail: Sheet steel, zinc-plated |
| Colour | RAL 7035 |
| Dimensions | Width: 250 mmHeight: 300 mm |
| Size | Width units (WU) @ 250 mm: 1Height units (U) @ 150 mm: 2 |
| To fit busbars | 12 x 5/10 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.304 kg |
| Gross weight | 1.452 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177676480 |
| ETIM 9 | EC001896 |
| ECLASS 8.0 | 27400610 |
| Product description | SV Busbar module N/PE (ISV), 1 WU (250 mm), 2 U (300 mm) |
