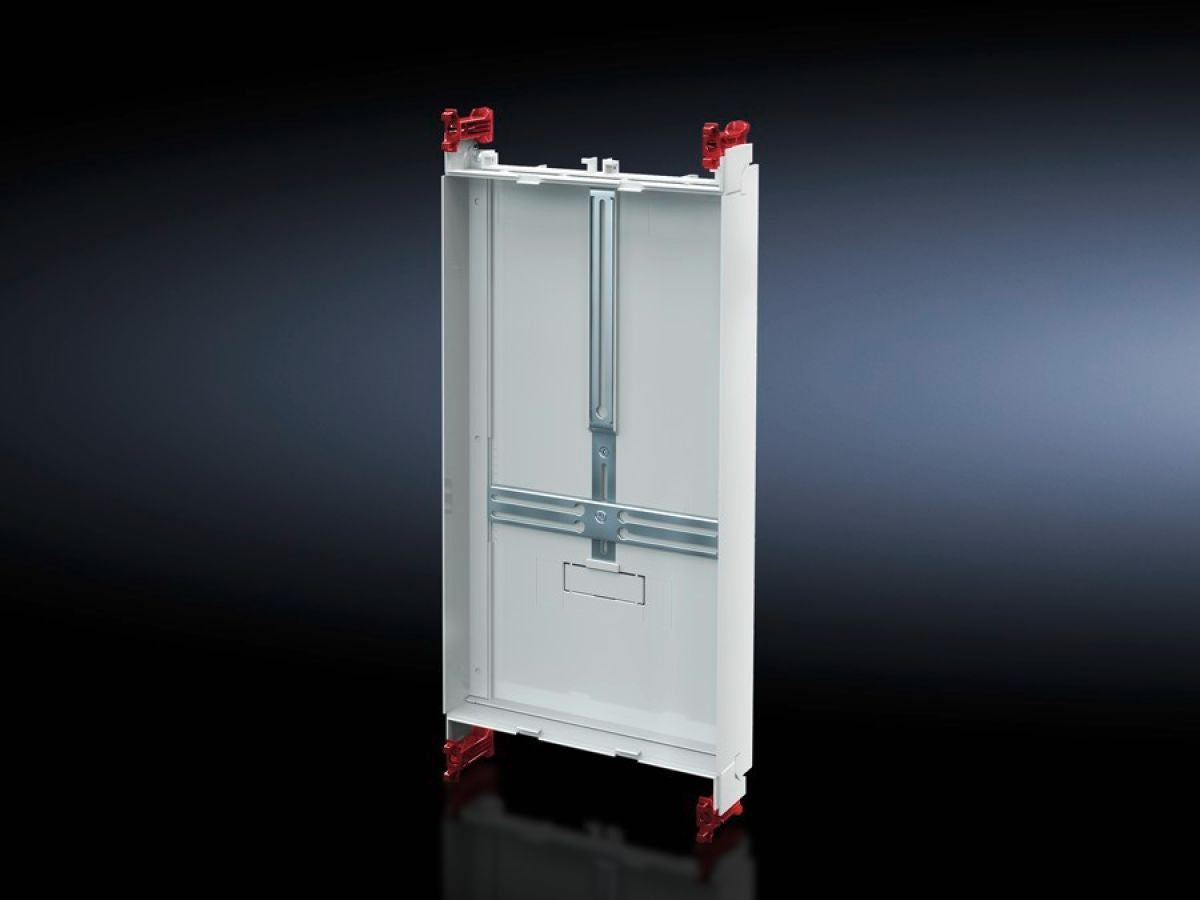

Rittal SV 9666.640, Meter mounting board module
Rittal SV 9666.640, Meter mounting board module
Regular price
€66,04
Regular price
Sale price
€66,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9666.640
Open module for internal measurements.
| Article number: | SV 9666.640 |
| Design | Attachment rails to accommodate a meter |
| Product description | Open module for internal measurements. Clearance depth available for meter installation 170 mm. |
| Material | Meter mounting board: PolystyreneMounting rails: sheet steel, zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Assembly instruction | 1 contact hazard protection module / DIN rail-mounted device module or support rail module with 1 WU and at least 1 U is required both above and below the meter mounting board module. |
| Note | The meter mounting board module does not comply with meter mounting board standard DIN 43 870/VDE 0603 and does not meet the conditions for total insulation. Use in unmetered areas only by arrangement with the local electricity supply company. |
| Dimensions | Width: 250 mmHeight: 450 mm |
| Size | Width units (WU) @ 250 mm: 1Height units (U) @ 150 mm: 3 |
| Packs of | 1 pc(s). |
| Net weight | 1.3 kg |
| Gross weight | 1.48 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177676510 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Meter mounting board module (ISV), 1 WU (250 mm), 3 U (450 mm) |
