Rittal

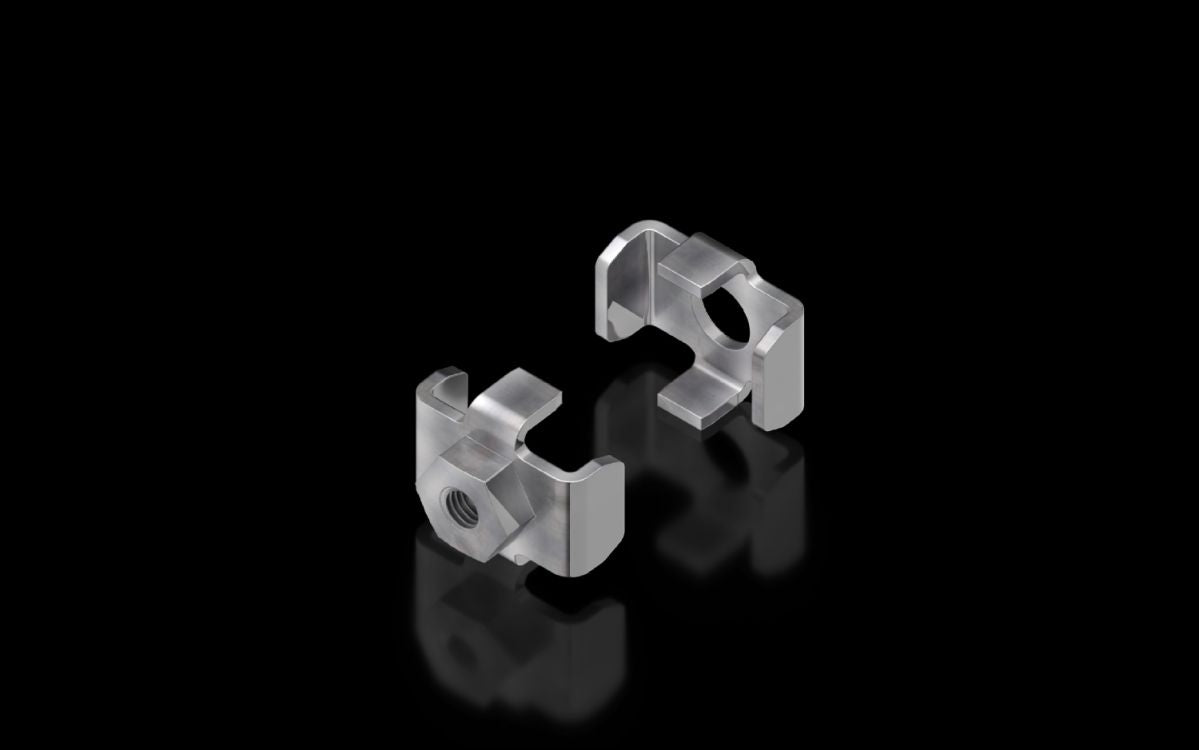

Rittal SV 9676.017, Busbar claw for flat copper busbars
Rittal SV 9676.017, Busbar claw for flat copper busbars
Regular price
€18,57
Regular price
Sale price
€18,57
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9676.017
For flat copper busbars with increased short-circuit resistance or for the mechanical stabilisation of busbar stacks.
| Article number: | SV 9676.017 |
| Product description | For mechanical stabilisation of busbar stacks. Suitable for 10 mm bar thickness. |
| Material | Stainless steel |
| Assembly instruction | The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply. |
| Mounting dimensions | 20 mm |
| Number of busbars | 2 |
| Packs of | 1 pc(s). |
| Net weight | 0.05 kg |
| Gross weight | 0.061 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177625518 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Busbar claw, for 2 busbars H: 10 mm, (Flat-PLS) |
