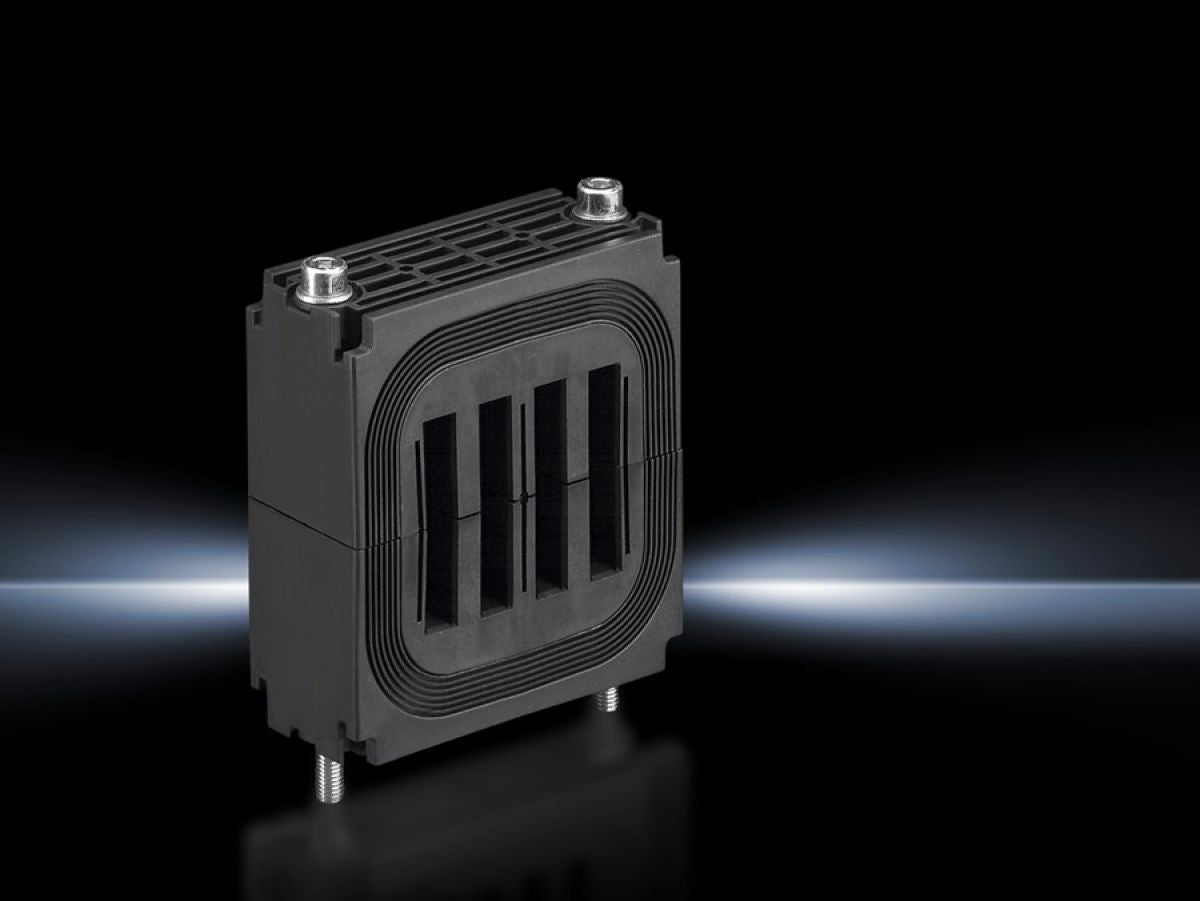

Rittal SV 9676.021, Busbar support for stabiliser bar
Rittal SV 9676.021, Busbar support for stabiliser bar
Regular price
€54,04
Regular price
Sale price
€54,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9676.021
For the configuration of busbar systems from flat copper bars with increased short-circuit resistance.
| Article number: | SV 9676.021 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 9005 |
| Number bars | 4 |
| Number of bars per conductor footnote | When using only 1, 2 or 3 bars, the vacant bar slots should be closed using the filler pieces |
| To fit busbar system | Flat-PLS 100 |
| To fit busbars | Flat copper busbars |
| Cross-section | 100 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.308 kg |
| Gross weight | 1.309 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177600898 |
| ETIM 9 | EC001900 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Busbar support, Flat-PLS 100, for busbar WH: 80/100x10 mm, (stabiliser bar) |
