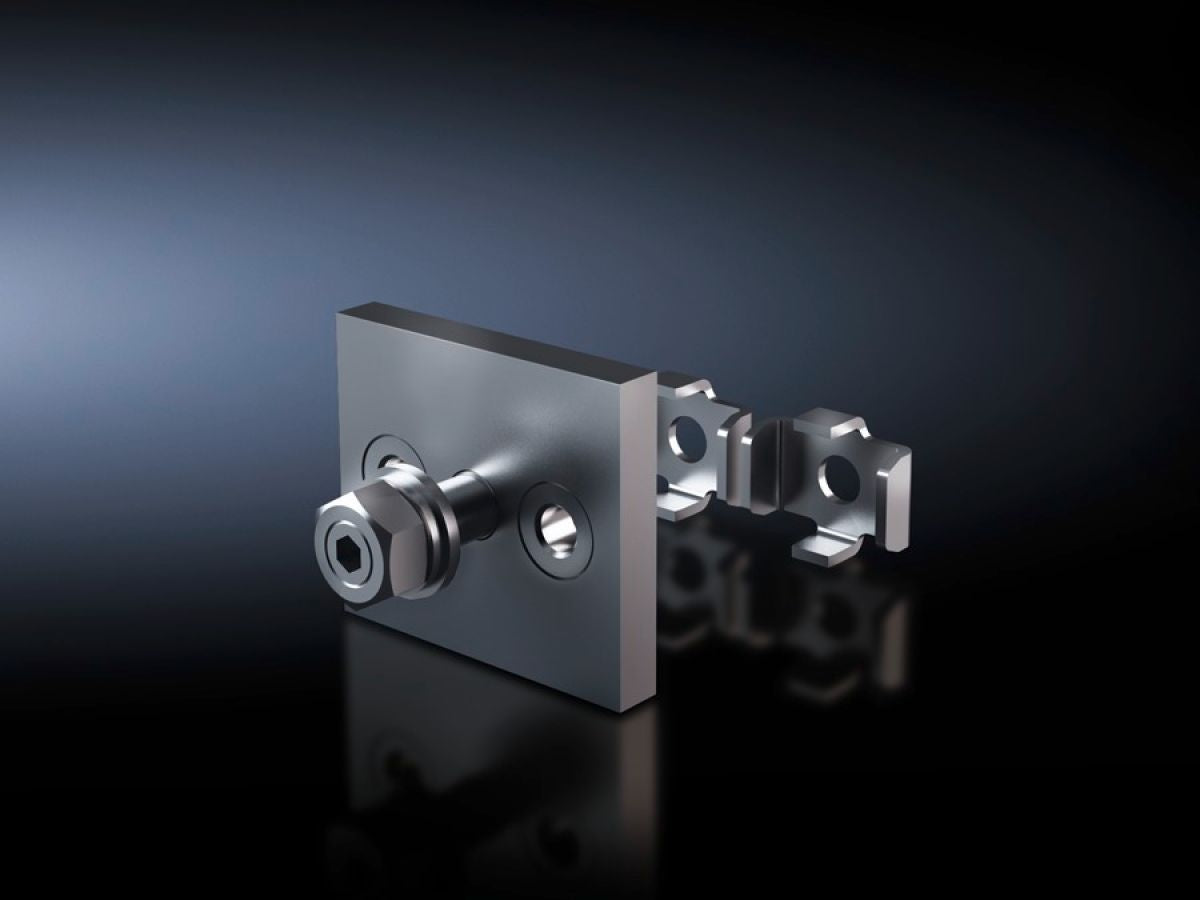

Rittal SV 9676.700, Connection plate for ring terminals
Rittal SV 9676.700, Connection plate for ring terminals
Regular price
€49,90
Regular price
Sale price
€49,90
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9676.700
For connecting ring terminals to a Flat-PLS busbar system with 2 – 4 bars per conductor.
| Article number: | SV 9676.700 |
| Product description | For connecting ring terminals to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness. |
| Material | Connection plate: E-Cu, nickel-platedBusbar claw: Stainless steel |
| Supply includes | Assembly parts (excluding screws)Grub screw |
| Assembly instruction | The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply. |
| Number of bars per conductor | 2 |
| Dimensions | Thread: M12 |
| Mounting dimensions | 20 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.6 kg |
| Gross weight | 0.612 kg |
| Copper weight (kg per piece) | 0.49 |
| Customs tariff number | 73269098 |
| EAN | 4028177625754 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Connection plate, with bolts M12, (Flat-PLS) |
