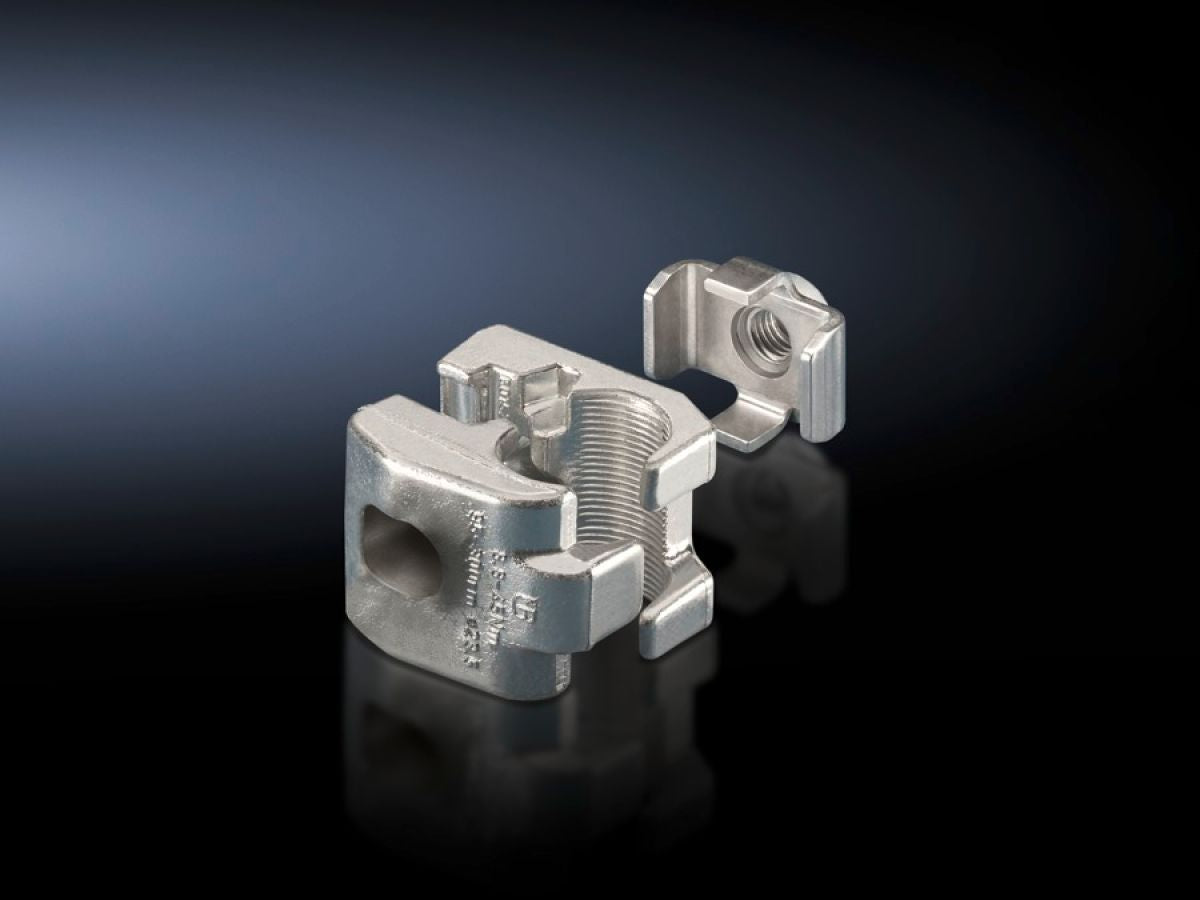

Rittal SV 9676.730, Direct connection terminal for round conductors
Rittal SV 9676.730, Direct connection terminal for round conductors
Regular price
€40,05
Regular price
Sale price
€40,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9676.730
For the direct connection of round conductors 95 – 300 mm² (single-wire and multi-wire).
| Article number: | SV 9676.730 |
| Product description | For connecting round conductors to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness. |
| Material | Connection clamp: Brass, tin-platedBusbar claw: Stainless steel |
| Supply includes | Assembly parts (excluding screws) |
| Assembly instruction | The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply. |
| Number of bars per conductor | 2 |
| Connection of round conductors | 95 ‐ 300 mm² |
| Mounting dimensions | 60 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.32 kg |
| Gross weight | 0.327 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177625549 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Direct connection terminal, round conductor connection 95-300 mm², (Flat-PLS 60/100), excluding screw |
