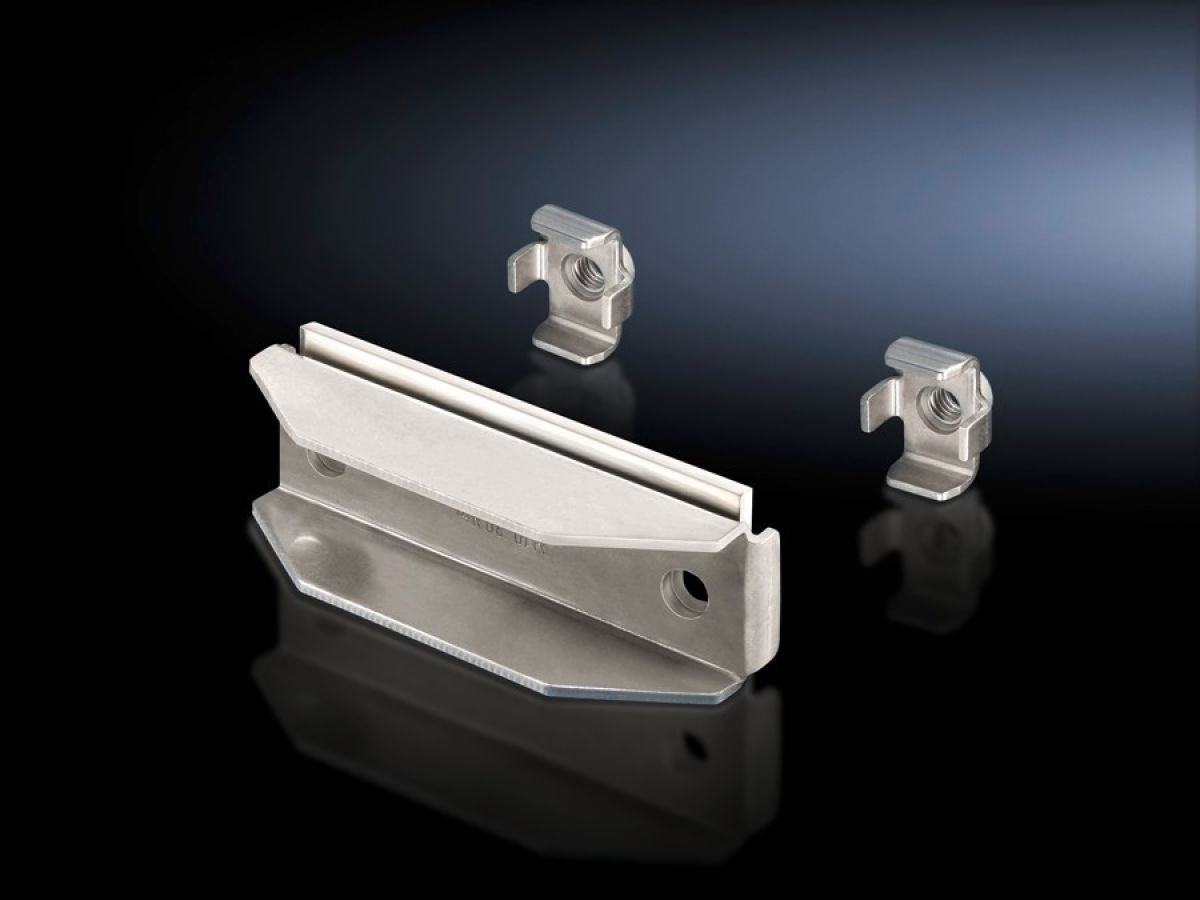

Rittal SV 9676.749, Connection plate for laminated copper bars
Rittal SV 9676.749, Connection plate for laminated copper bars
Regular price
€43,05
Regular price
Sale price
€43,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9676.749
For the connection of laminated flat copper bars.
| Article number: | SV 9676.749 |
| Product description | For connecting laminated copper bars to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness. |
| Material | Connection plate: E-CuThrust piece: Stainless steelBusbar claw: Stainless steel |
| Supply includes | Assembly parts (excluding screws) |
| Assembly instruction | The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply. |
| Number of bars per conductor | 2 |
| Mounting dimensions | 50 mm |
| Clamping area for laminated copper bars (W x H) | 100 x 20 mm |
| To fit laminated copper bars | Qty.: 2with no. of membranes: 10with membrane width: 100 mmwith membrane thickness: 1 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.62 kg |
| Gross weight | 0.639 kg |
| Copper weight (kg per piece) | 0.27 |
| Customs tariff number | 73269098 |
| EAN | 4028177625570 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV Connection plate, clamping area WH: 100x20 mm, (Flat-PLS) |
