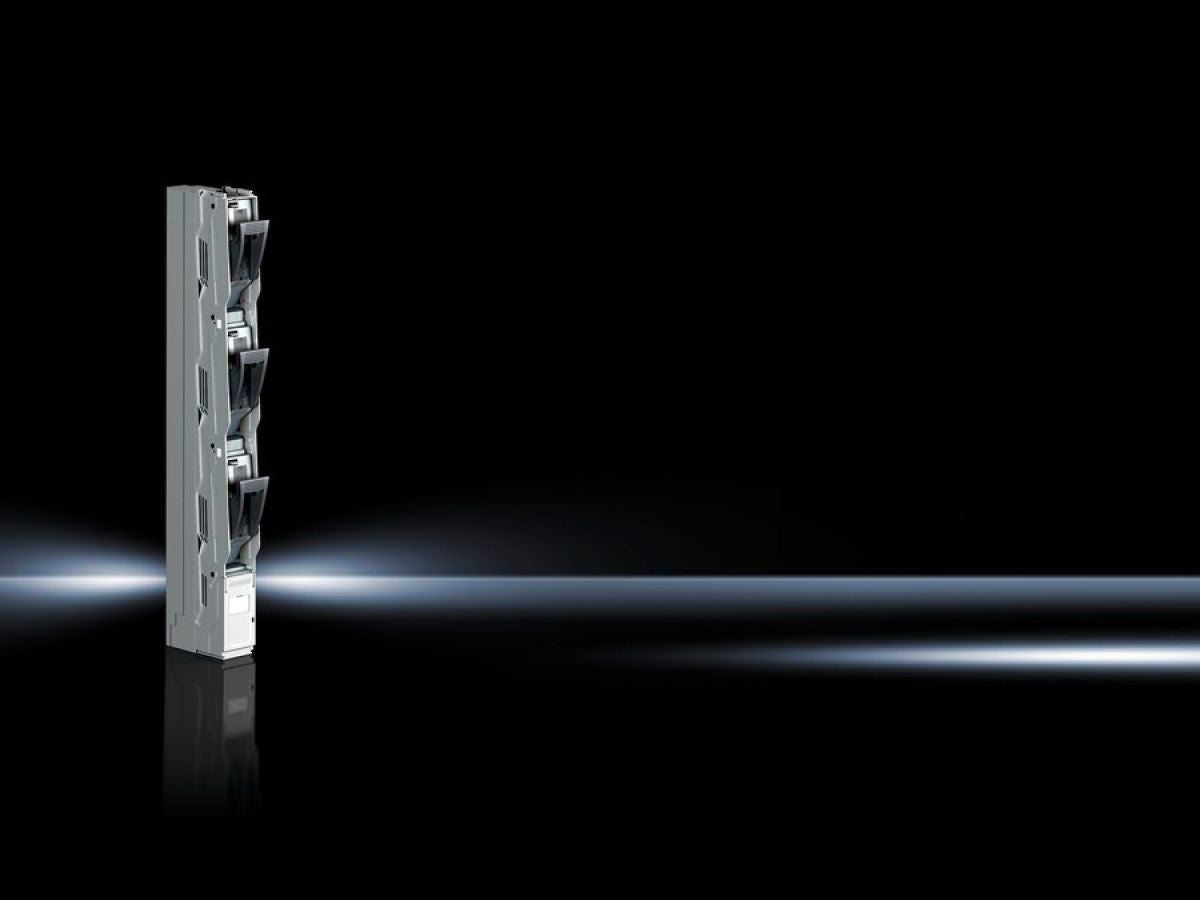

Rittal SV 9677.010, NH slimline fuse-switch disconnector
Rittal SV 9677.010, NH slimline fuse-switch disconnector
Regular price
€126,73
Regular price
Sale price
€126,73
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.010
3-pole, for bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.010 |
| Design | single-pole, switchable |
| Material | PolyamideFire protection corresponding to UL 94-V0Contact tracks: Partially silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001Handle: RAL 7016 |
| For NH size | 00 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M8 |
| Number of poles | 3-pole |
| Rated operating voltage | 690 V (AC), 3~ |
| Rated operating current max. | 160 A |
| Note | When using components on busbars with contact hazard protection cover, the contact terminal must be used |
| Test specification | IEC/DIN EN 60 947-3 |
| For converter installation | Yes |
| Dimensions | Width: 50 mmHeight: 670 mm |
| Connection of round conductors | 1.5 ‐ 95 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 2.44 kg |
| Gross weight | 2.64 kg |
| Copper weight (kg per piece) | 0.6 |
| Customs tariff number | 85365080 |
| EAN | 4028177705463 |
| ETIM 9 | EC001046 |
| ECLASS 8.0 | 27371402 |
| Product description | SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, single-pole, switchable, for current transformer installation |
