Rittal

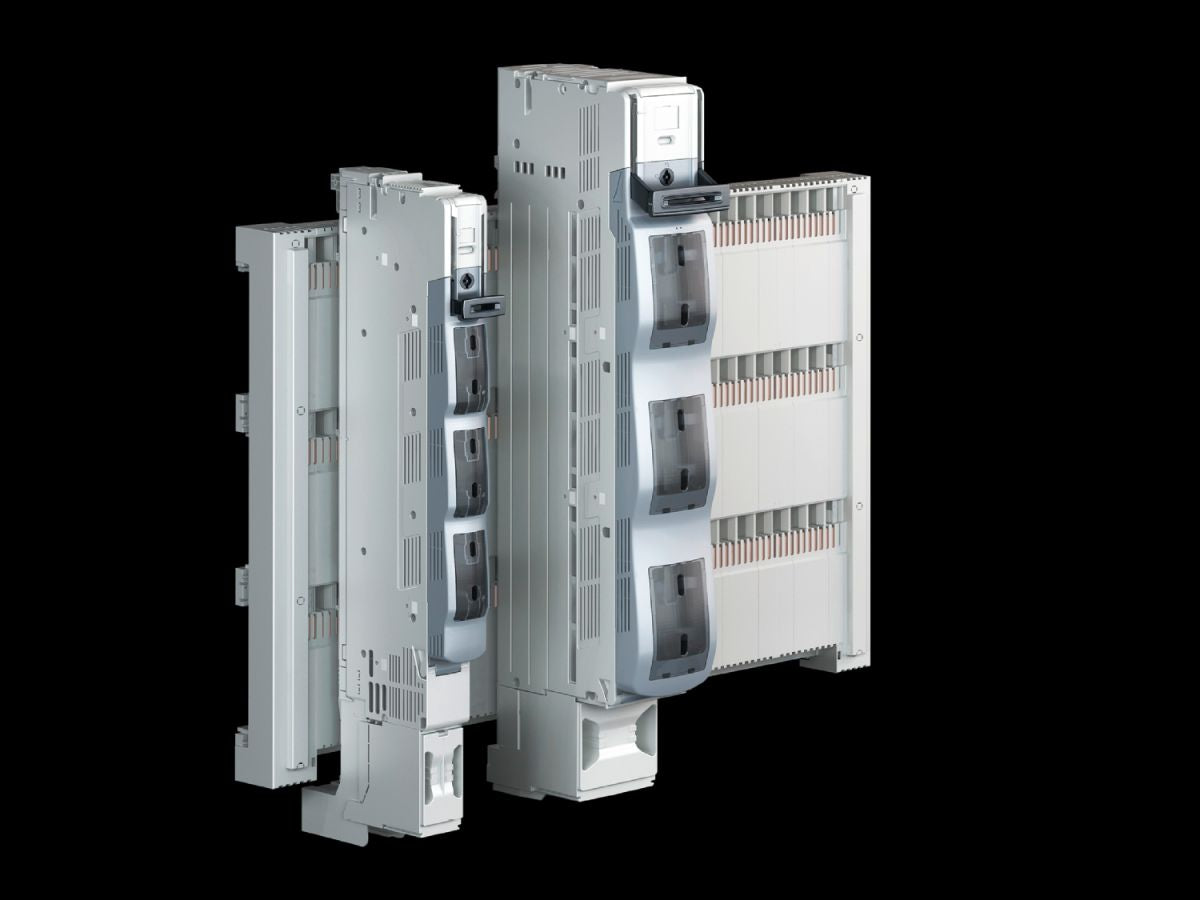

Rittal SV 9677.080, NH slimline switch-disconnector with electronic fuse monitoring
Rittal SV 9677.080, NH slimline switch-disconnector with electronic fuse monitoring
Regular price
€540,45
Regular price
Sale price
€540,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.080
3-pole, for bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.080 |
| Design | 3-pole, switchable |
| Function principle | Automatic quick-break contact allows operator-independent switching |
| Material | PolyamideFire protection corresponding to UL 94-V0Contact tracks: Partially silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001Handle: RAL 7016 |
| For NH size | 00 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Bottom |
| Type of electrical connection | Screw M8 |
| Installation type | Clamping attachment |
| Number of poles | 3-pole |
| Rated operating voltage | 400 V, 3~ |
| Rated operating current max. | 160 A |
| Test specification | IEC/DIN EN 60 947-3 |
| For converter installation | Yes |
| Dimensions | Width: 50 mmHeight: 860 mm |
| Connection of round conductors | 1.5 ‐ 95 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 5 kg |
| Gross weight | 5.48 kg |
| Copper weight (kg per piece) | 1.072 |
| Customs tariff number | 85043129 |
| EAN | 4028177806726 |
| ETIM 9 | EC001040 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH slimline switch disconnector, size 00, 160 A, 400 V, 3-pole, screw M8, 185 mm, cable outet bottom, clamping attachment |
