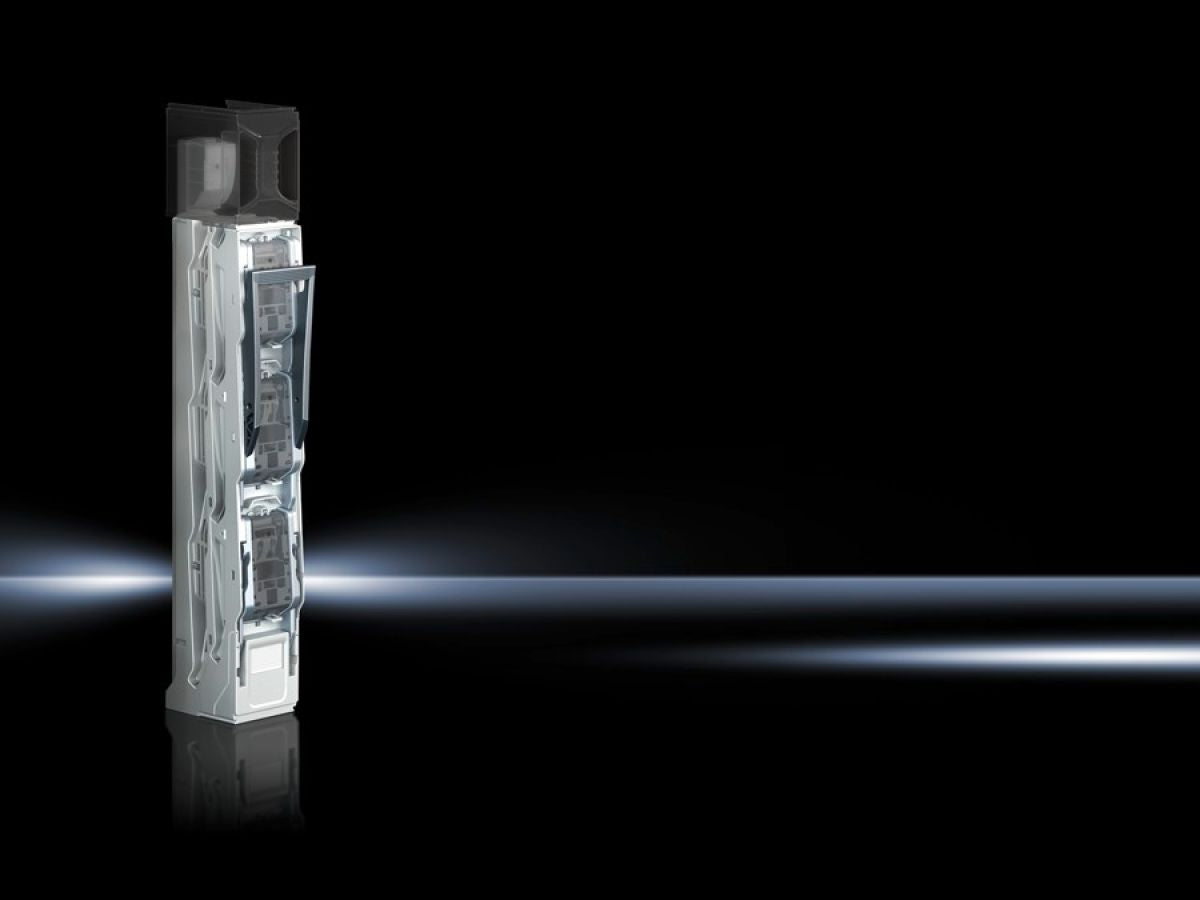

Rittal SV 9677.215, NH slimline fuse-switch disconnector with electronic fuse monitoring
Rittal SV 9677.215, NH slimline fuse-switch disconnector with electronic fuse monitoring
Regular price
€314,41
Regular price
Sale price
€314,41
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.215
3-pole, for bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.215 |
| Design | 3-pole, switchable |
| Material | PolyamideFire protection corresponding to UL 94-V0Contact tracks: Partially silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001Handle: RAL 7016 |
| For NH size | 2 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Bolt M12 |
| Number of poles | 3-pole |
| Rated operating voltage | 400 V, 3~ |
| Rated operating current max. | 400 A |
| Note | When using components on busbars with contact hazard protection cover, the contact terminal must be used |
| Test specification | IEC/DIN EN 60 947-3 |
| For converter installation | Yes |
| Dimensions | Width: 100 mmHeight: 830 mm |
| Connection of round conductors | 6 ‐ 240 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 5.93 kg |
| Gross weight | 6.33 kg |
| Copper weight (kg per piece) | 1.73 |
| Customs tariff number | 85365080 |
| EAN | 4028177705531 |
| ETIM 9 | EC001046 |
| ECLASS 8.0 | 27371402 |
| Product description | SV NH slimline fuse-switch disconnector, size 2, 400 A, 400 V, 3-pole, bolt M12, 185 mm, with electronic fuse monitoring, for current transformer installation |
