Rittal

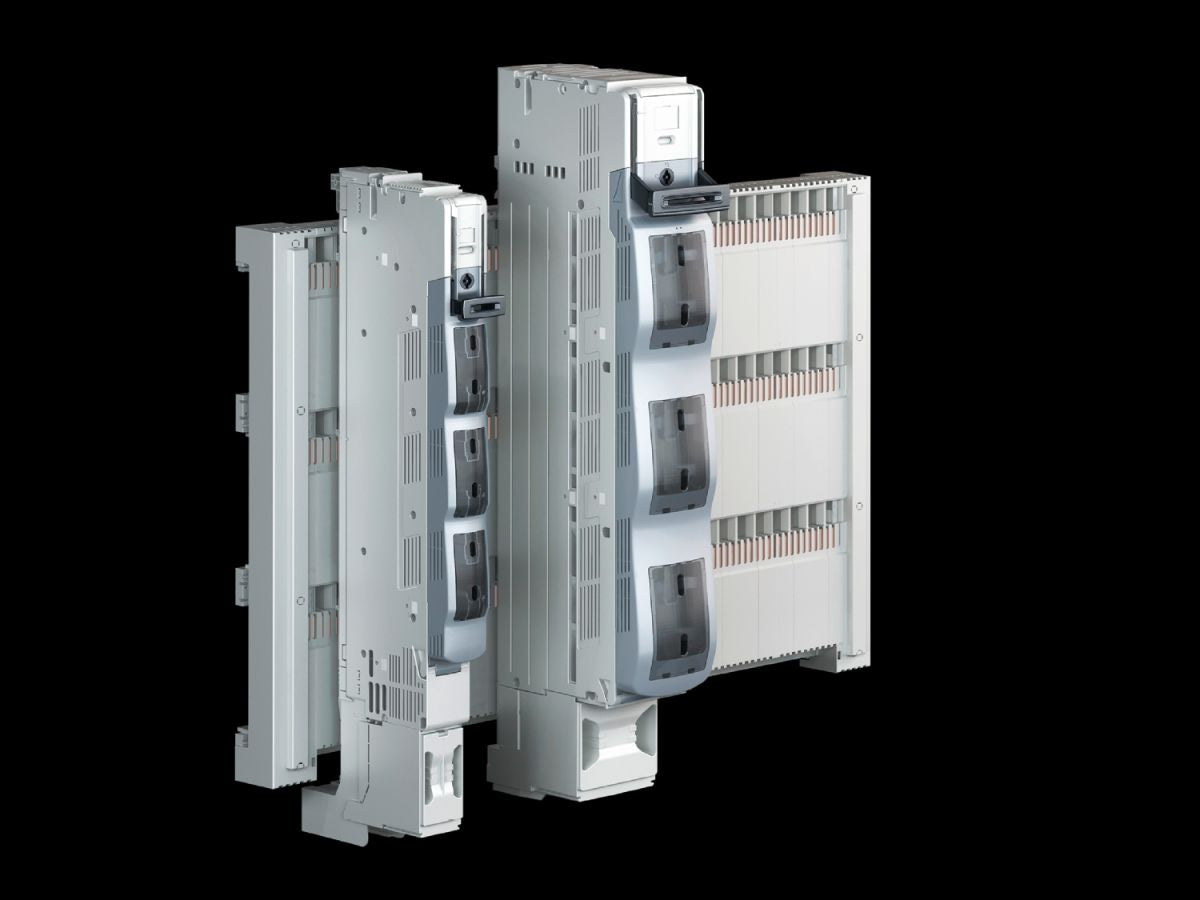

Rittal SV 9677.260, NH slimline switch-disconnector
Rittal SV 9677.260, NH slimline switch-disconnector
Regular price
€602,44
Regular price
Sale price
€602,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.260
3-pole, for bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.260 |
| Design | 3-pole, switchable |
| Function principle | Automatic quick-break contact allows operator-independent switching |
| Material | PolyamideFire protection corresponding to UL 94-V0Contact tracks: Partially silver-plated hard copper |
| Colour | Chassis: RAL 7035Cover: RAL 7001Handle: RAL 7016 |
| For NH size | 2 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Bottom |
| Type of electrical connection | Screw M12 |
| Installation type | Screw attachment |
| Number of poles | 3-pole |
| Rated operating voltage | 690 V, 3~ |
| Rated operating current max. | 400 A |
| Test specification | IEC/DIN EN 60 947-3 |
| Dimensions | Width: 100 mmHeight: 772 mm |
| Connection of round conductors | 6 ‐ 240 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 11.82 kg |
| Gross weight | 12.22 kg |
| Copper weight (kg per piece) | 3.685 |
| Customs tariff number | 85043129 |
| EAN | 4028177806771 |
| ETIM 9 | EC001040 |
| ECLASS 8.0 | 27371401 |
| Product description | SV NH slimline switch disconnector, size 2, 400 A, 690 V, 3-pole, bolt M12, 185 mm, cable outet bottom, screw attachment |
