Rittal

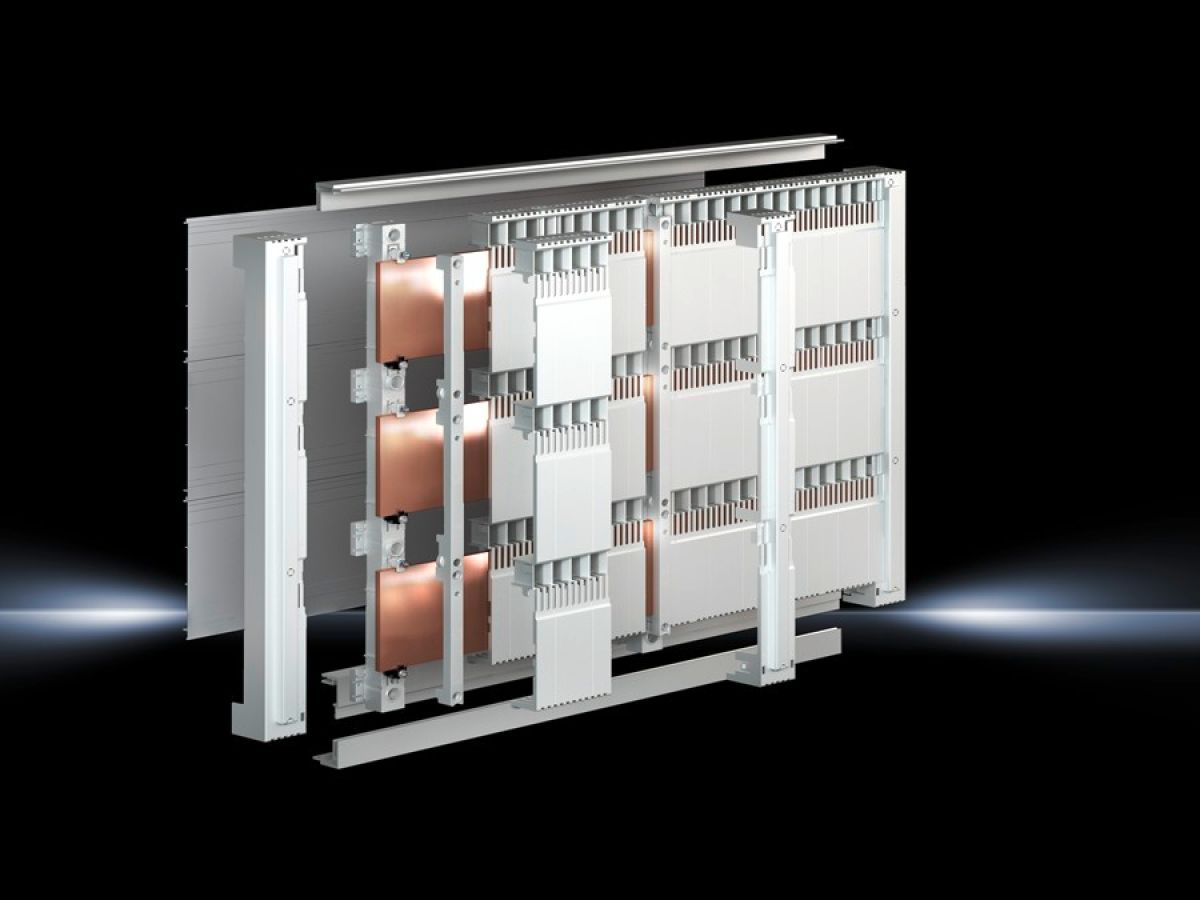

Rittal SV 9677.500, Busbar support (185 mm)
Rittal SV 9677.500, Busbar support (185 mm)
Regular price
€115,59
Regular price
Sale price
€115,59
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.500
For flat copper bars 40/60/80/100/120 x 10 mm
| Article number: | SV 9677.500 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Including assembly components for contact hazard protection cover (base tray) |
| Number of poles | 3-pole185 mm |
| To fit busbars | 40 x 10 mm |
| Number of poles | 3-pole |
| Rated operating voltage | 1000 V, 3~ |
| Packs of | 2 pc(s). |
| Net weight | 1.72 kg |
| Gross weight | 1.92 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177705326 |
| ETIM 9 | EC001166 |
| ECLASS 8.0 | 27400607 |
| Product description | SV Busbar support, 3-pole, 185 mm bar centre distance, for busbar WH: 40x10/60-120x10 mm |
