Rittal
Rittal SV 9677.521, System attachment for VX, TS
Rittal SV 9677.521, System attachment for VX, TS
Regular price
€112,16
Regular price
Sale price
€112,16
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.521

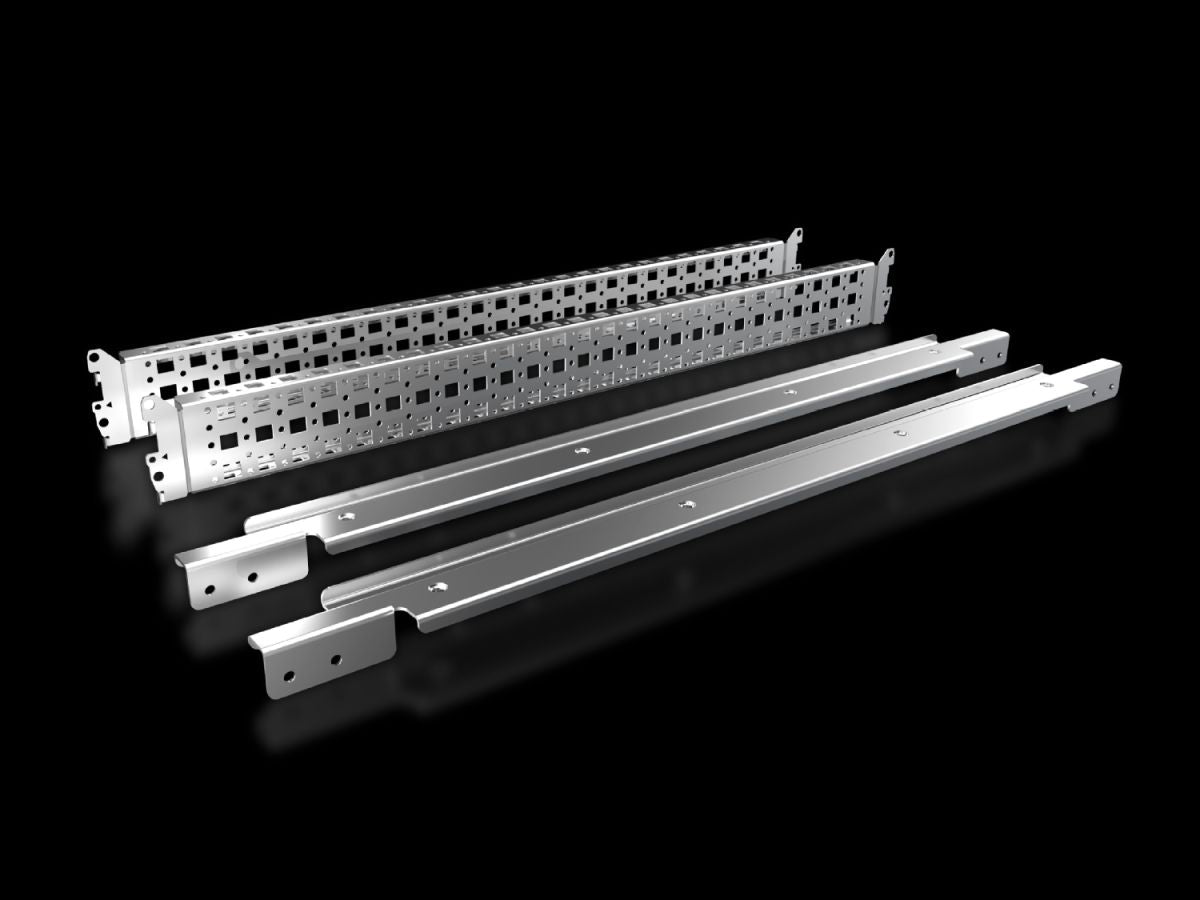

For attaching busbar systems with 185 mm centre-to-centre spacing in enclosures.
| Article number: | SV 9677.521 |
| Product description | For attaching busbar systems with 185 mm centre-to-centre spacing inside the enclosure. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | 2 system attachments (left/right)2 punched sections without mounting flangesAssembly parts |
| Assembly instruction | For variable depth adjustment of the busbar system in the enclosure, the punched section with mounting flange 23 x 64 mm for VX (for the inner mounting level) is additionally required. Select according to the enclosure depth. |
| Packs of | 1 pc(s). |
| Net weight | 3.54 kg |
| Gross weight | 3.74 kg |
| PCF per pack (cradle-to-gate) | 14.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73182900 |
| EAN | 4028177923317 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27400613 |
| Product description | SV system attachment for VX (W: 800 mm), for busbar holder SV 9677500 |
