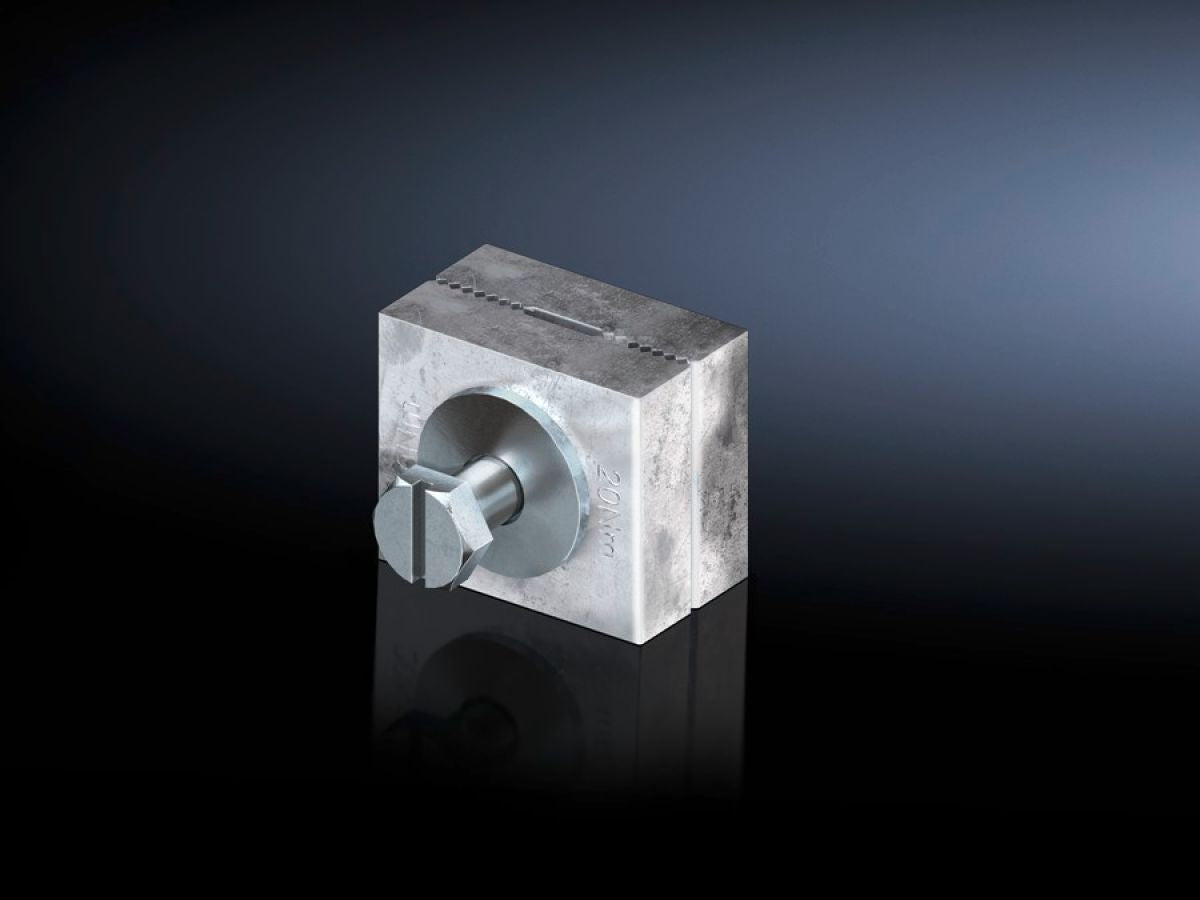

Rittal SV 9677.610, Busbar connector
Rittal SV 9677.610, Busbar connector
Regular price
€30,48
Regular price
Sale price
€30,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.610
For connecting busbars from 40 x 10 to 120 x 10 mm, no drilling required.
| Article number: | SV 9677.610 |
| Product description | For connecting rectangular busbars, no drilling required. |
| Material | E-Cu |
| Surface finish | Tin-plated |
| Length | 40 mm |
| For busbar dimensions (mm) / Required quantity per busbar | 40 x 10 / 180 x 10 / 2100 x 10 / 1 |
| Note | If using a 100 x 10 mm busbar, one 9677.610 and one 9677.620 are required |
| To fit busbars | 40 x 10 mm |
| Dimensions | Length: 40 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.44 kg |
| Gross weight | 0.5 kg |
| Copper weight (kg per piece) | 0.407 |
| Customs tariff number | 74071000 |
| EAN | 4028177705388 |
| ETIM 9 | EC000713 |
| ECLASS 8.0 | 27400606 |
| Product description | SV Busbar connector, for E-Cu 40/80/100x10 mm, L: 40 mm |
