Rittal

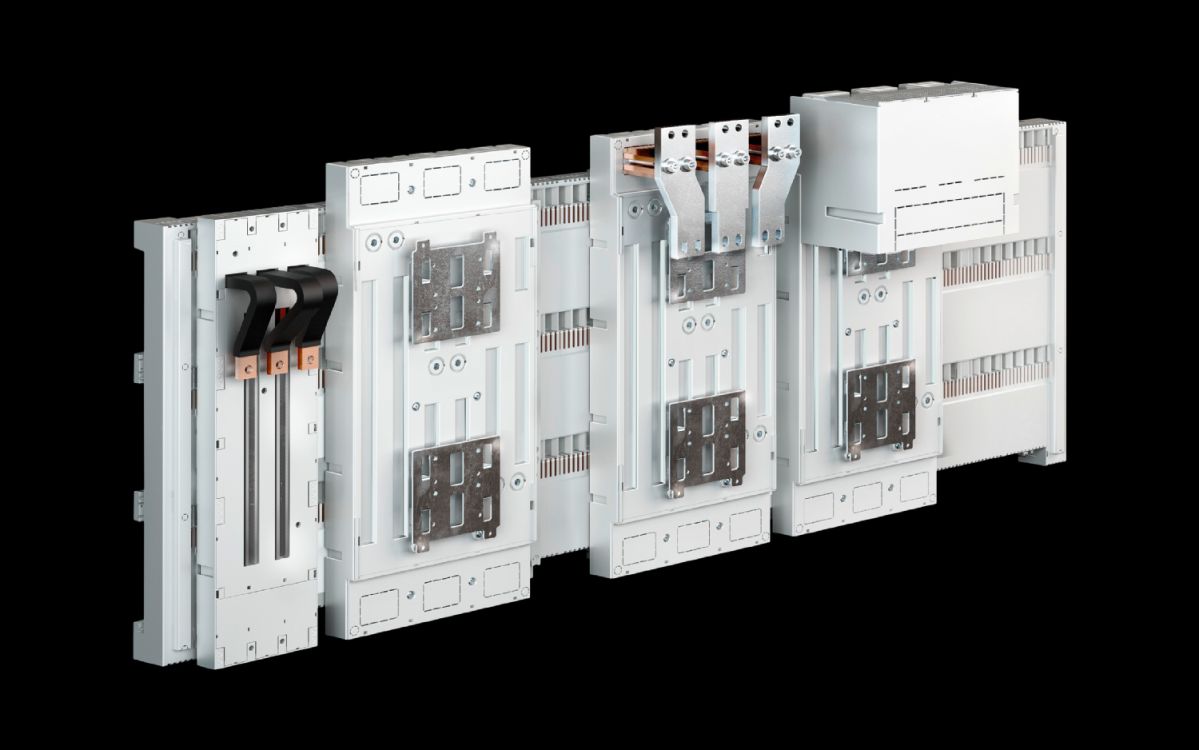

Rittal SV 9677.710, Component adaptor clamping attachment
Rittal SV 9677.710, Component adaptor clamping attachment
Regular price
€647,96
Regular price
Sale price
€647,96
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.710
For circuit-breakers from ABB, Eaton, Schneider Electric and Siemens. For bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.710 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Bottom |
| Installation type | Clamping attachment |
| Number of poles | 3-pole |
| Rated current max. | 1,600 A |
| Rated operating voltage | 690 V, 3~ |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Dimensions | Width: 300 mmHeight: 652 mm |
| To fit busbars | Height: 10 mm |
| To fit manufacturer (model) | ABB (Tmax T7 - 1250 A/1600 A) |
| Packs of | 1 pc(s). |
| Net weight | 21.12 kg |
| Gross weight | 22.2 kg |
| Copper weight (kg per piece) | 14.68 |
| Customs tariff number | 85369095 |
| EAN | 4028177707078 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Component adaptor, 1600 A, 690 V, 3-pole, 185 mm, clamping attachment |
