Rittal

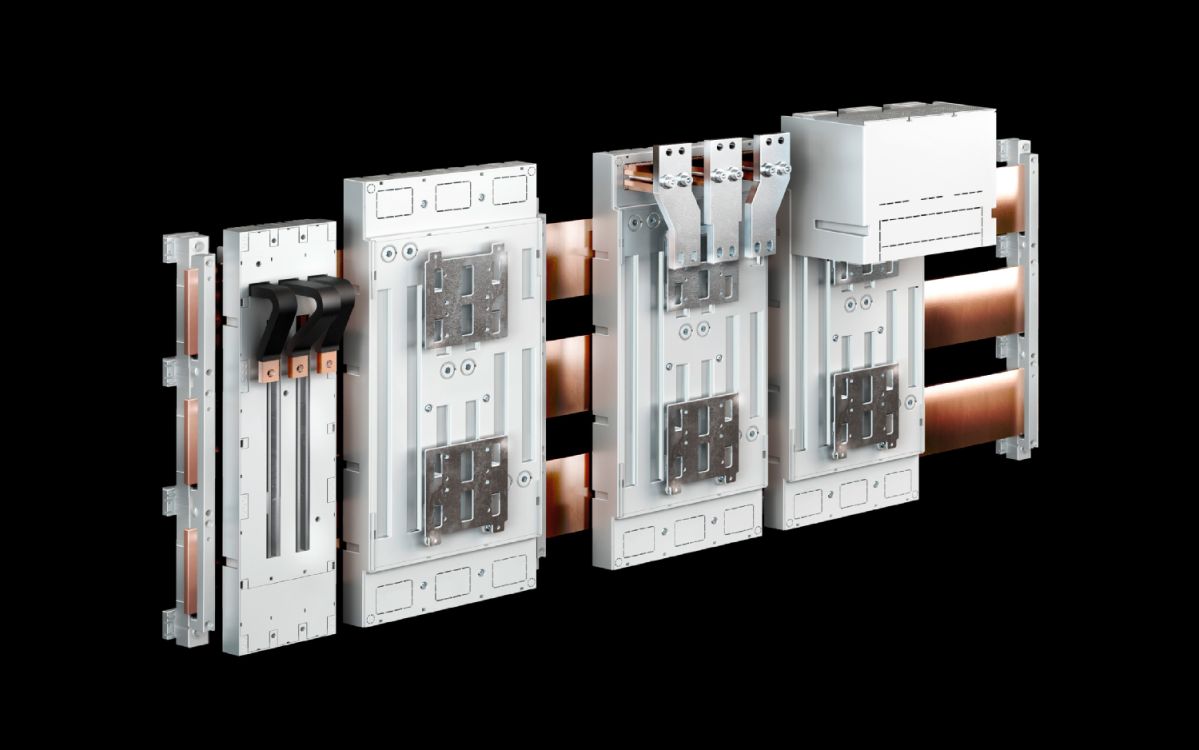

Rittal SV 9677.780, Component adaptor screw attachment
Rittal SV 9677.780, Component adaptor screw attachment
Regular price
€586,10
Regular price
Sale price
€586,10
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.780
For circuit-breakers from ABB, Eaton, Schneider Electric and Siemens. For bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.780 |
| Material | PolyamideFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Connection straps |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Bottom |
| Installation type | Screw attachment |
| Number of poles | 3-pole |
| Rated current max. | 630 A |
| Rated operating voltage | 690 V, 3~ |
| Note | Cable outlet: Switch outlet or as outgoing cable from the switchgear |
| Dimensions | Width: 150 mmHeight: 585 mm |
| To fit busbars | Height: 10 mm |
| To fit manufacturer (model) | ABB (Tmax T5) |
| Packs of | 1 pc(s). |
| Net weight | 5.92 kg |
| Gross weight | 6.32 kg |
| Copper weight (kg per piece) | 3.652 |
| Customs tariff number | 85369095 |
| EAN | 4028177802315 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Component adaptor, 630 A, 690 V, 3-pole, 185 mm, screw attachment |
