Rittal

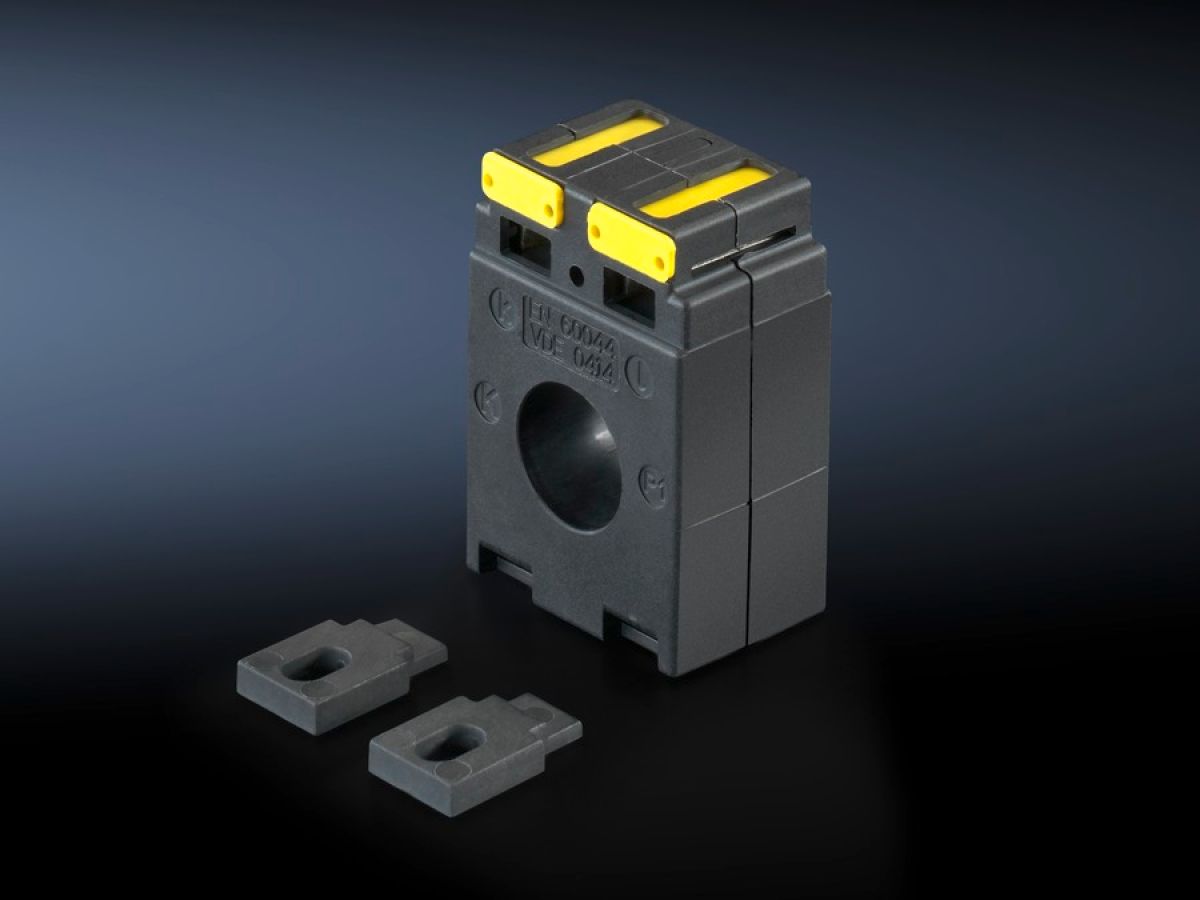

Rittal SV 9677.810, Current transformer
Rittal SV 9677.810, Current transformer
Regular price
€52,47
Regular price
Sale price
€52,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.810
For inductive measurement of current flow.
| Article number: | SV 9677.810 |
| Product description | Compact design without altering the installation depth via mechanical integration into the top-mounting components (185 mm centre-to-centre spacing); this allows space-saving assembly. |
| Material | Polyamide |
| For size | 00 |
| To fit Model No. | 9677.000 |
| Rated power input | 2.5 VA |
| Type of electrical connection | Screw terminals |
| Insuslation material (class) | E |
| Primary current | 150 A |
| Secondary current | 5 A |
| Accuracy Class | 1 |
| Test specification | IEC 60 044-1 |
| Connection of round conductors | 2.5 ‐ 4 mm² |
| Rated frequency | 50 ‐ 60 Hz |
| Packs of | 1 pc(s). |
| Net weight | 0.2 kg |
| Gross weight | 0.21 kg |
| Customs tariff number | 85043129 |
| EAN | 4028177705234 |
| ETIM 9 | EC002048 |
| ECLASS 8.0 | 27141146 |
| Product description | SV Current transformer, for, NH slimline fuse-switch disconnector/, NH slimeline switch-disconnector, size 00 (SV 9677XXX) |
