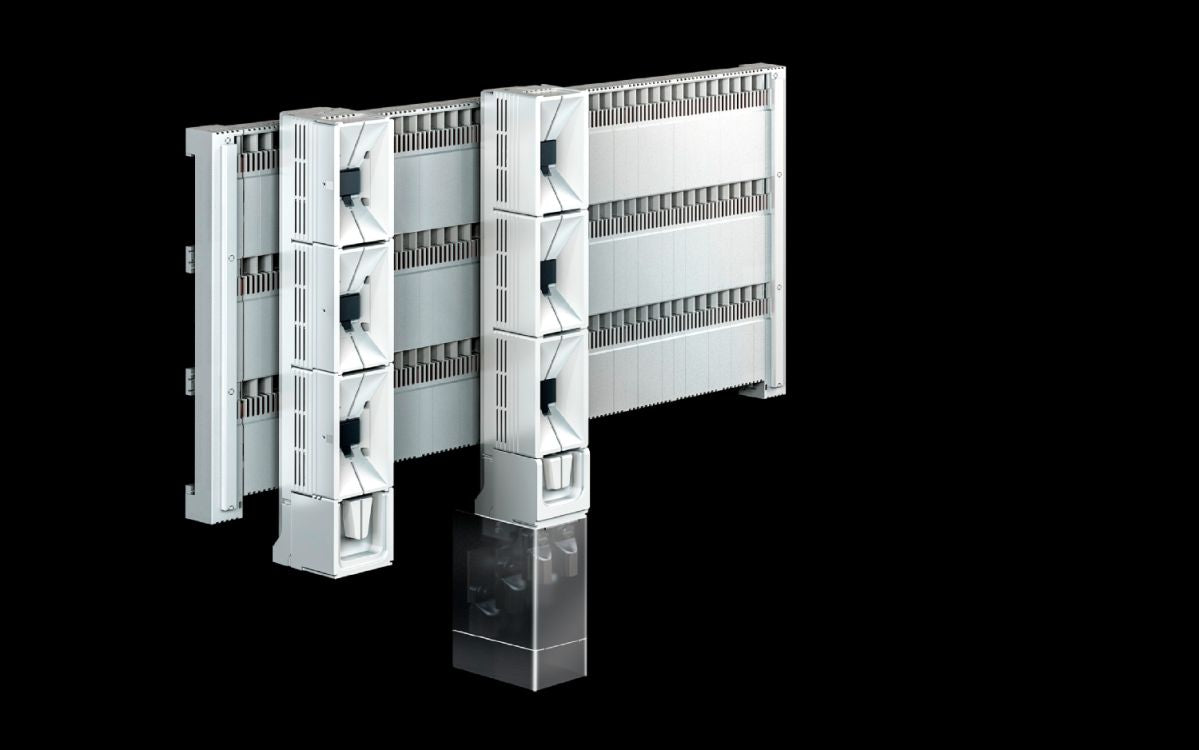

Rittal SV 9677.900, Connection adaptor
Rittal SV 9677.900, Connection adaptor
Regular price
€252,11
Regular price
Sale price
€252,11
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.900
For the connection of round conductors. For bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.900 |
| Material | Chassis: Fibreglass-reinforced polyesterFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M12 |
| Number of poles | 3-pole |
| Rated current max. | 800 A |
| Rated operating voltage | 690 V, 3~ |
| Note | When using components on busbars with contact hazard protection cover, the contact terminal must be used |
| Dimensions | Width: 100 mmHeight: 665 mm |
| Connection of round conductors | 6 ‐ 240 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 4.5 kg |
| Gross weight | 5 kg |
| Copper weight (kg per piece) | 3.128 |
| Customs tariff number | 85369010 |
| EAN | 4028177705289 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Busbar connection adaptor, 800 A, 690 V, 3-pole, 185 mm, cable outlet at the top/bottom, 6-240 mm² |
