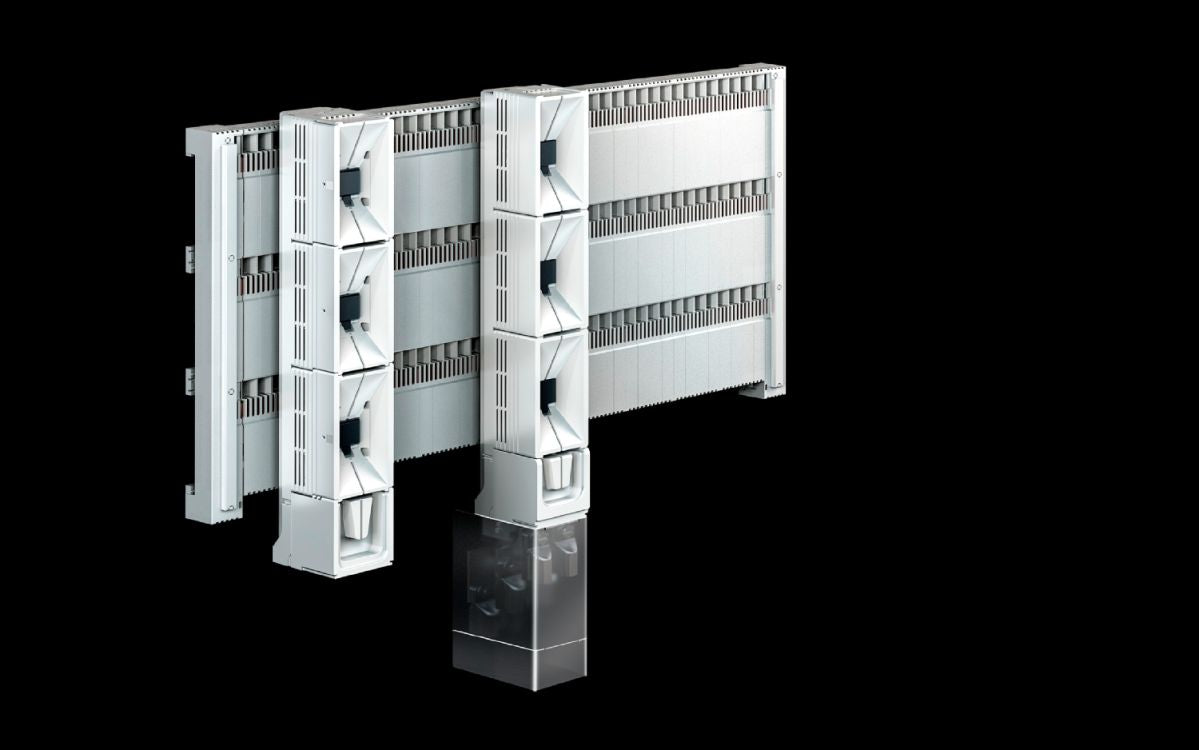

Rittal SV 9677.905, Connection adaptor
Rittal SV 9677.905, Connection adaptor
Regular price
€1.079,03
Regular price
Sale price
€1.079,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9677.905
For the connection of round conductors. For bar systems with 185 mm centre-to-centre spacing.
| Article number: | SV 9677.905 |
| Material | Chassis: Fibreglass-reinforced polyesterFire protection corresponding to UL 94-V0 |
| Colour | RAL 7035 |
| Supply includes | Contact hazard protection cover plate |
| For bar systems with centre-to-centre spacing | 185 mm |
| Cable outlet | Top/bottom |
| Type of electrical connection | Screw M12 |
| Number of poles | 3-pole |
| Rated current max. | 1,400 A |
| Rated operating voltage | 690 V, 3~ |
| Note | When using components on busbars with contact hazard protection cover, the contact terminal must be used |
| Dimensions | Width: 100 mmHeight: 960 mm |
| Connection of round conductors | 6 ‐ 300 mm² |
| To fit busbars | Height: 10 mm |
| Packs of | 1 pc(s). |
| Net weight | 11 kg |
| Gross weight | 11.5 kg |
| Copper weight (kg per piece) | 4.41 |
| Customs tariff number | 85369010 |
| EAN | 4028177705296 |
| ETIM 9 | EC001531 |
| ECLASS 8.0 | 27370304 |
| Product description | SV Connection adaptor, 1400 A, 690 V, 3-pole, 185 mm, cable outet bottom, round conductor connection 6-300 mm² |
