Rittal

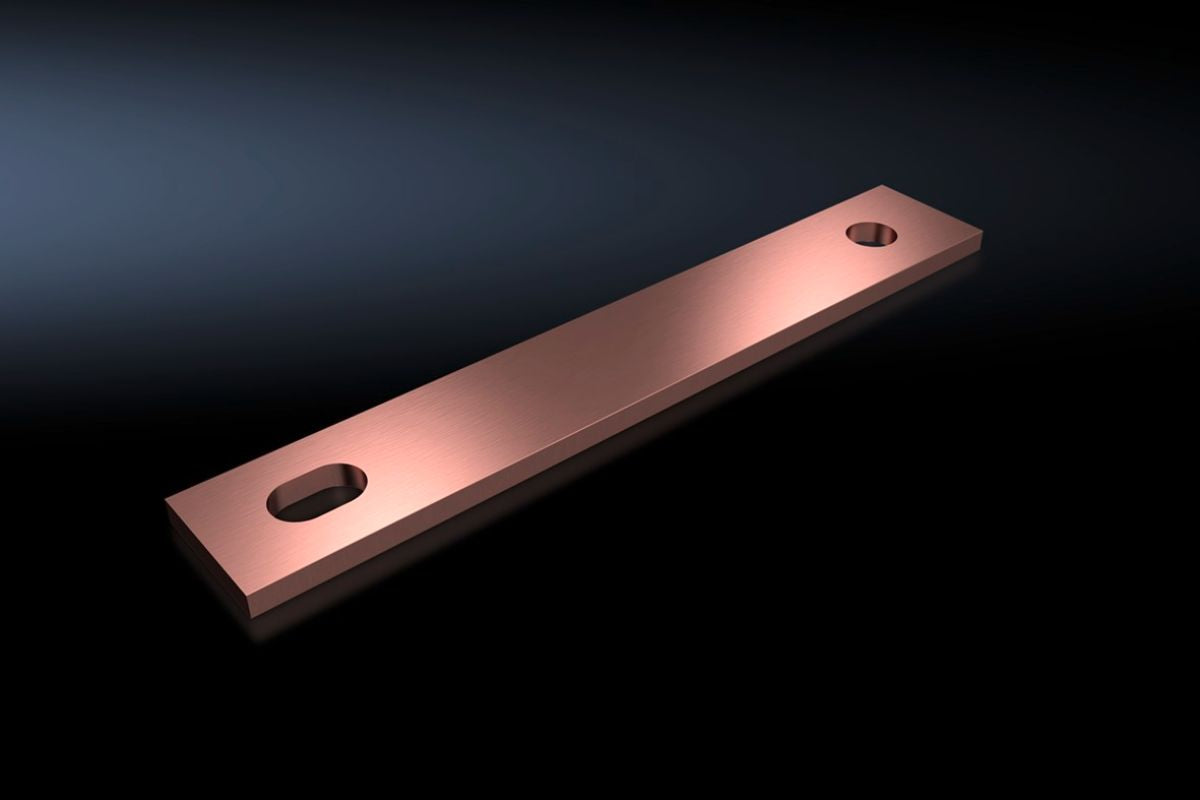

Rittal SV 9686.529, PE/PEN baying bracket E-Cu
Rittal SV 9686.529, PE/PEN baying bracket E-Cu
Regular price
€39,91
Regular price
Sale price
€39,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9686.529
The PE/PEN combination, consisting of a busbar, angle bracket and baying bracket, supports type-tested configurations to IEC 61 439-1.
| Article number: | SV 9686.529 |
| Product description | For connecting the busbars from enclosure to enclosure. |
| Material | E-Cu |
| Dimensions | Length: 180 mm |
| Cross-section | 30 mm x 5 mm |
| Packs of | 2 pc(s). |
| Net weight | 0.51 kg |
| Copper weight (kg per piece) | 0.23 |
| Customs tariff number | 74198090 |
| EAN | 4028177935938 |
| ETIM 9 | EC002270 |
| ECLASS 8.0 | 27409221 |
| Product description | SV PE/PEN baying bracket E-Cu, WH: 30x5 mm, L: 180 mm |
