Rittal

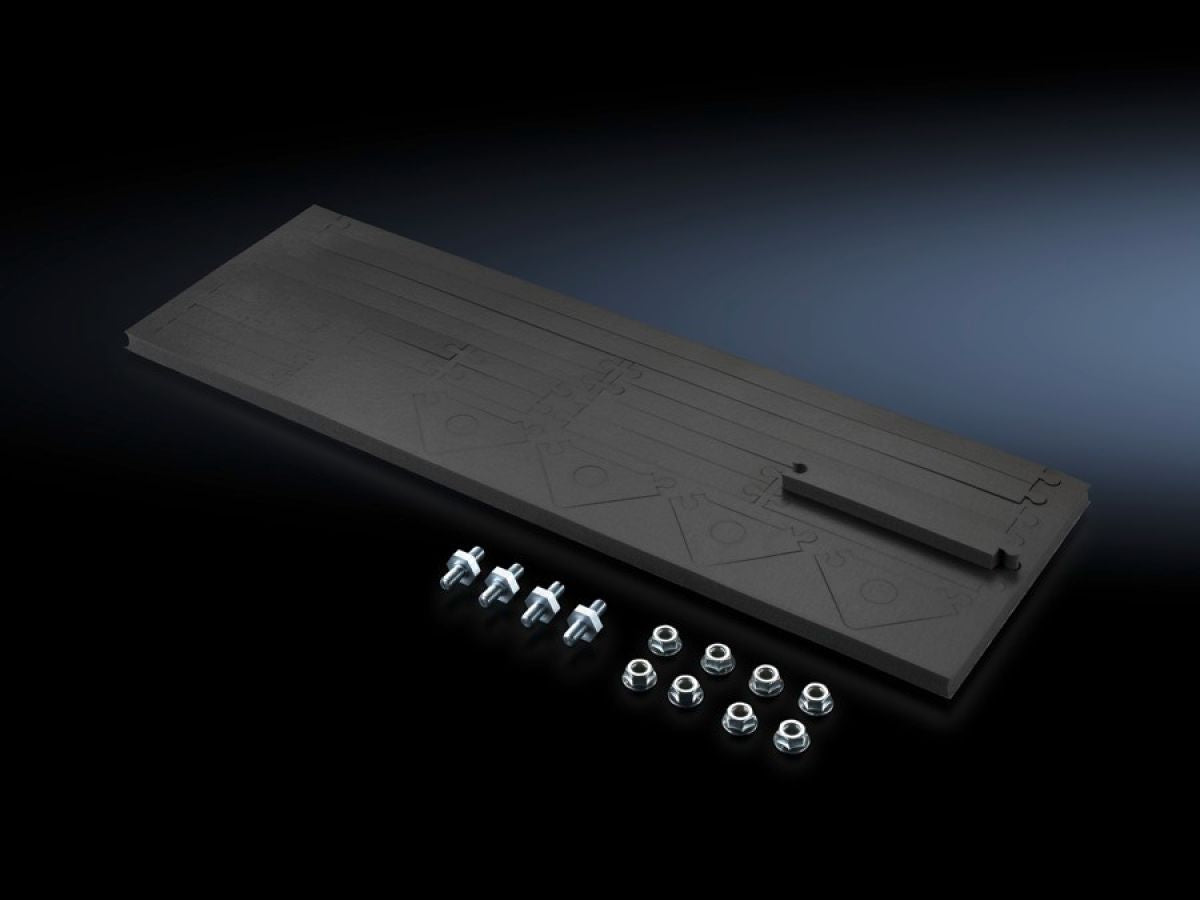

Rittal SZ 1199.100, Baying kit for AX, KX, AE, KL
Rittal SZ 1199.100, Baying kit for AX, KX, AE, KL
Regular price
€46,62
Regular price
Sale price
€46,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 03.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 1199.100
For baying AX/KX enclosures. The additional cut-outs are to be provided by the customer.
| Article number: | SZ 1199.100 |
| Product description | For baying AX/KX enclosures. The additional cut-outs are to be provided by the customer. |
| Benefits | Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures |
| Supply includes | Special screws and nutsSealing elements, self-adhesive |
| Note | 1 pack is sufficient for a baying point up to H x D = 800 x 350 mm |
| To fit | Enclosure type: AXKXAEKLHeight: ≤ 800 mmDepth: ≤ 350 mm |
| Type rating to UL 50E | Type 1 |
| IP protection category to IEC 60 529 | IP 66 if installed correctly |
| Packs of | 1 pc(s). |
| Net weight | 0.219 kg |
| Gross weight | 0.26 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177602373 |
| ETIM 9 | EC002622 |
| ETIM 8 | EC002622 |
| ECLASS 8.0 | 27189263 |
| Product description | SZ Baying kit, for KL, AE, HD: 800x350 mm |
