Rittal

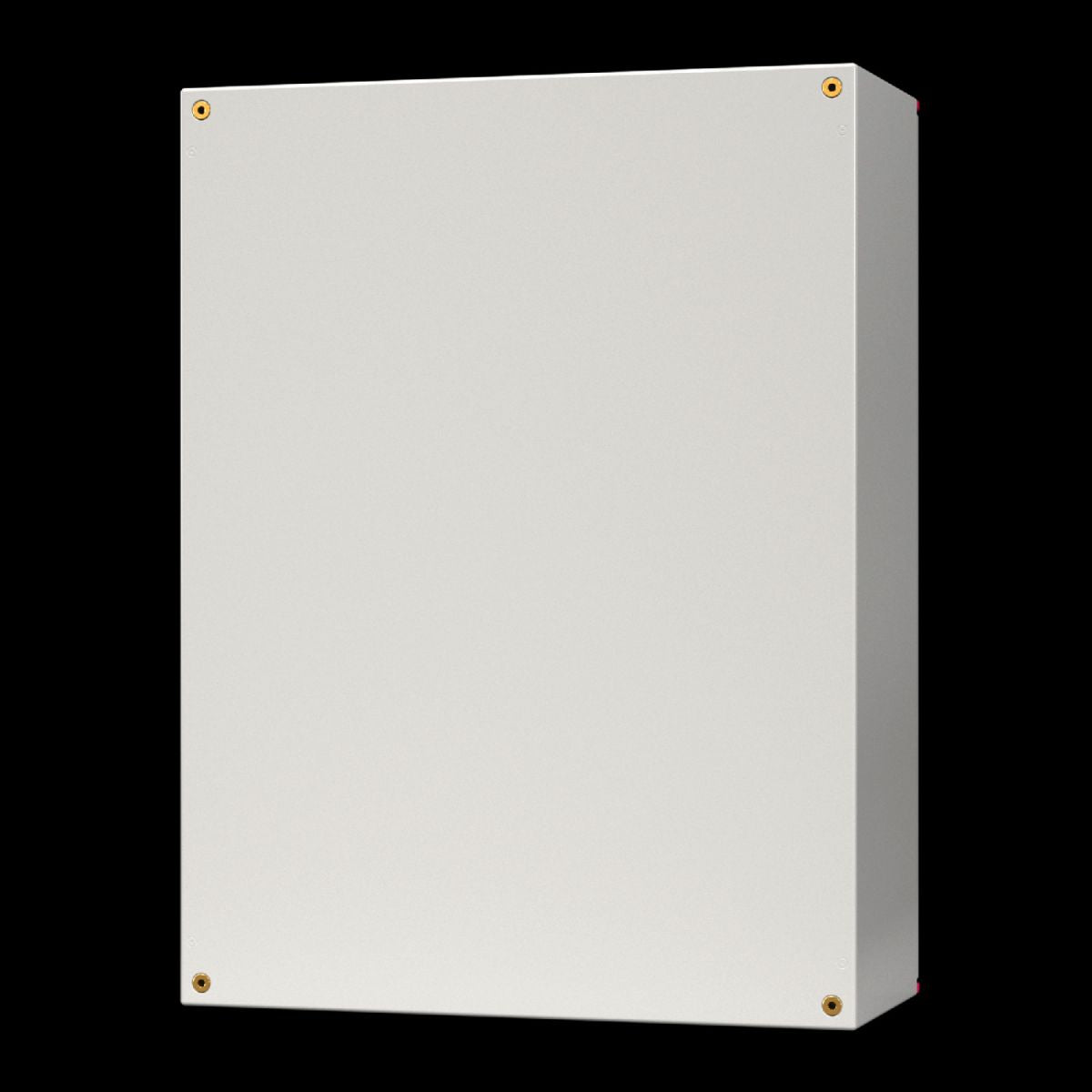

Rittal SZ 1485.766, Interior door for AX plastic enclosures
Rittal SZ 1485.766, Interior door for AX plastic enclosures
Regular price
€96,31
Regular price
Sale price
€96,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 1485.766
For reliable access protection. Separation of the operating and equipment levels.
| Article number: | SZ 1485.766 |
| Material | Door and door frame: Sheet steel |
| Surface finish | Door: Powder-coated, textured paintDoor frame: Zinc-plated |
| Colour | Door: RAL 7035 |
| Supply includes | DoorCam lock with 3 mm double-bit insertAssembly screws |
| Installation options | In AX plastic, on mounting bosses in the side panels |
| Note | Standard double-bit lock insert may be exchanged for 27 mm lock inserts, type A |
| To fit enclosure type | AX plastic |
| Suitable for width | = 600 mm |
| Suitable for height | = 600 mm |
| Material thickness - door | 1 mm |
| Door opening angle | 105° |
| Packs of | 1 pc(s). |
| Net weight | 4 kg |
| Gross weight | 4.12 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177965867 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | SZ internal door for AX plastic enclosures, for WxH: 600x600 mm |
