Rittal

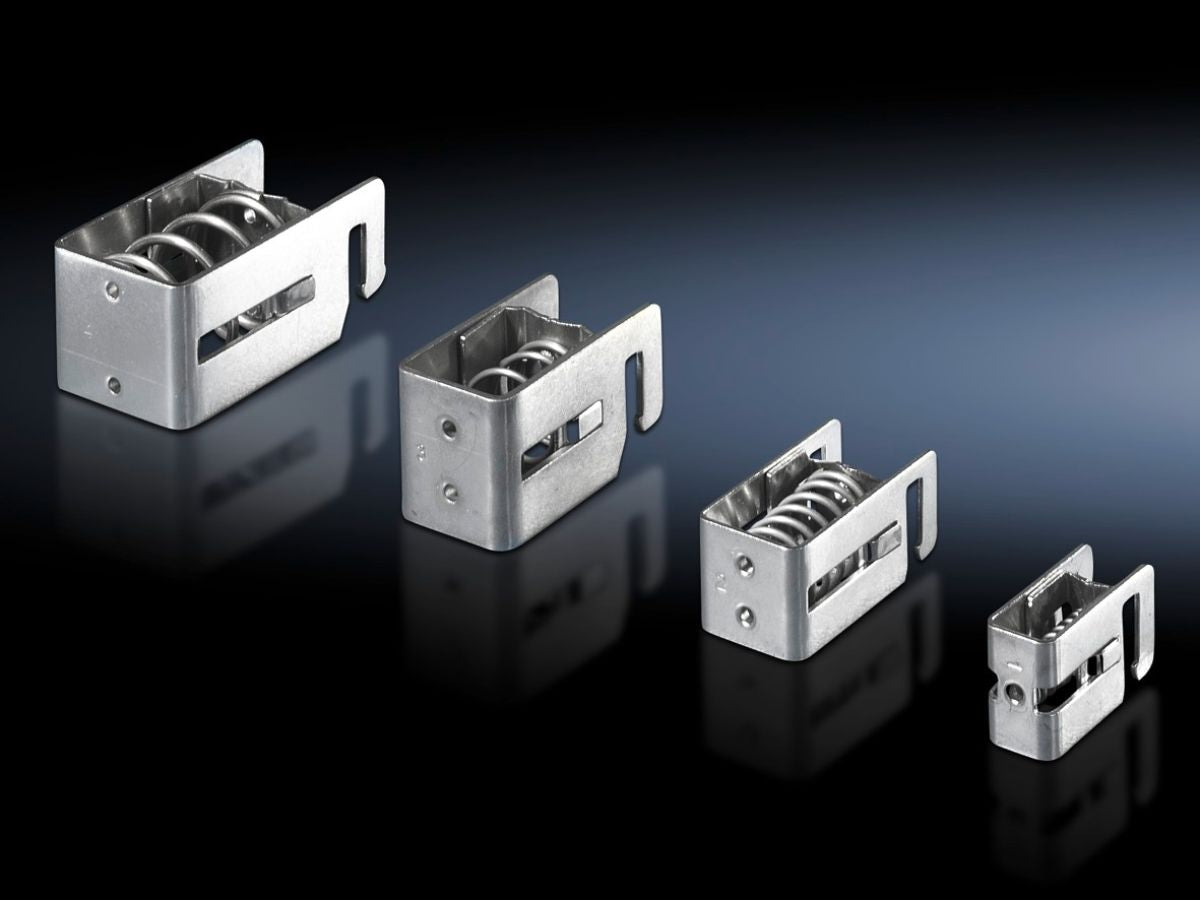

Rittal SZ 2388.200, EMC shielding bracket
Rittal SZ 2388.200, EMC shielding bracket
Regular price
€75,18
Regular price
Sale price
€75,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2388.200
Toolless quick assembly: Press the EMC shielding bracket against the cable shield and clip into the rail, diameter changes are compensated in full by the spring.
| Article number: | SZ 2388.200 |
| Product description | Quick assembly without the use of tools: Press the EMC shielding bracket against the cable shield and clip into the rail. Diameter changes are compensated in full by the spring of the EMC shielding bracket. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Shield diameter (min.) | 10 ‐ 20 mm |
| Packs of | 10 pc(s). |
| Net weight | 0.33 kg |
| Gross weight | 0.361 kg |
| PCF per pack (cradle-to-gate) | 1.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177318250 |
| ETIM 9 | EC002020 |
| ETIM 8 | EC002020 |
| ECLASS 8.0 | 27141150 |
| Product description | SZ EMC shielding bracket, for cable diameter 10-20 mm |
