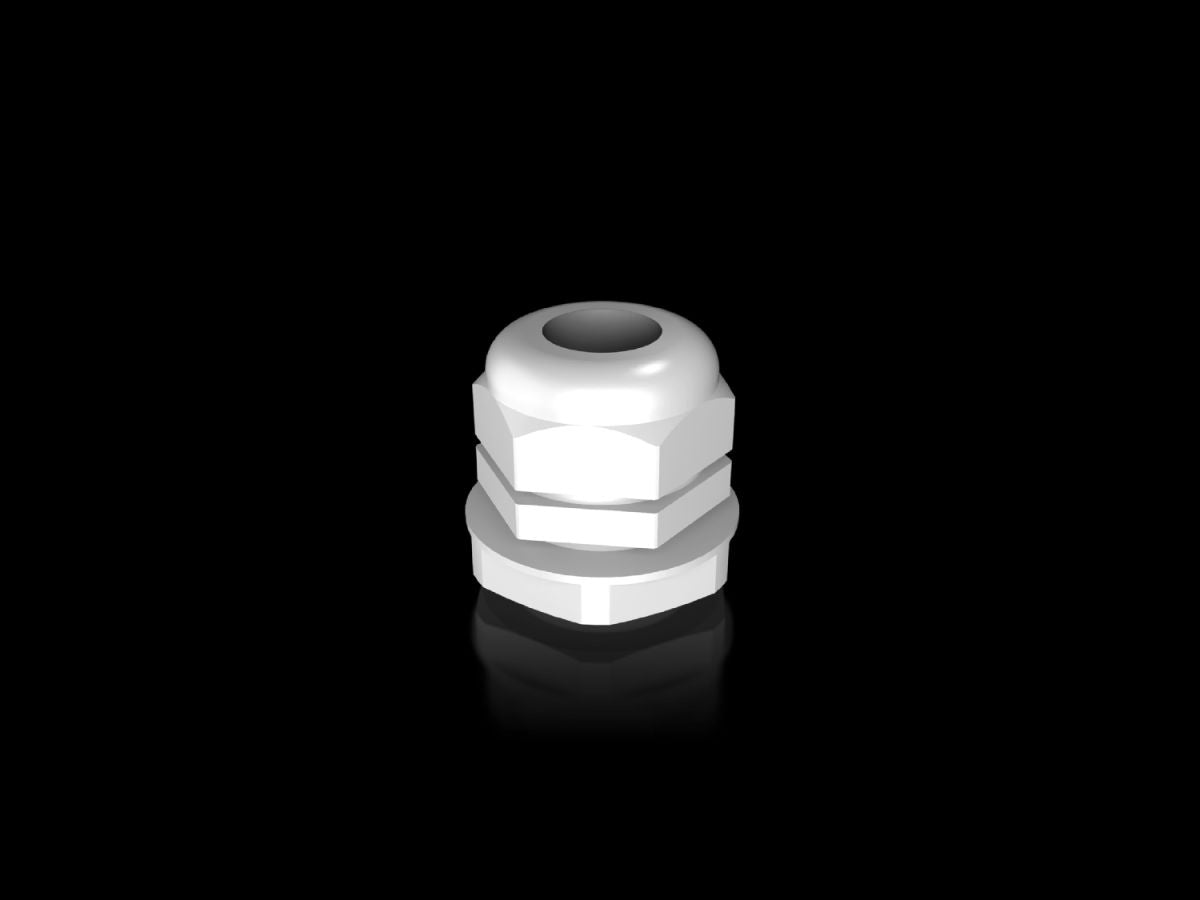

Rittal SZ 2411.621, Cable gland, polyamide
Rittal SZ 2411.621, Cable gland, polyamide
Regular price
€38,62
Regular price
Sale price
€38,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2411.621
Integrated clamping membranes ensure reliable tightening and strain relief to protect the cables.
| Article number: | SZ 2411.621 |
| Benefits | Because the gland and lock nut are sold together in a single pack, this saves additional ordering and storage. |
| Material | Polyamide 6Seal: CR/NBR |
| Colour | RAL 7035 |
| IP protection category to IEC 60 529 | IP 68 (5 bar, 30 min) |
| Dimensions | Height: 28 mm |
| Thread | M20 x 1.5 |
| Thread length | 10 mm |
| Min. cable diameter | 6 mm |
| Max. cable diameter | 12 mm |
| Operating temperature range | -30 °C...100 °C |
| torque | 5.5 Nm |
| Width across flats | 24 mm |
| Dimensions | Thread: M20 x 1.5Thread length: 10 mm |
| Type rating to UL 50E | Type 1 |
| Packs of | 50 pc(s). |
| Net weight | 0.55 kg |
| Gross weight | 0.615 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177809987 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ Cable gland, polyamide, size: M20x1,5, for cables ø 6-12 mm |
