Rittal

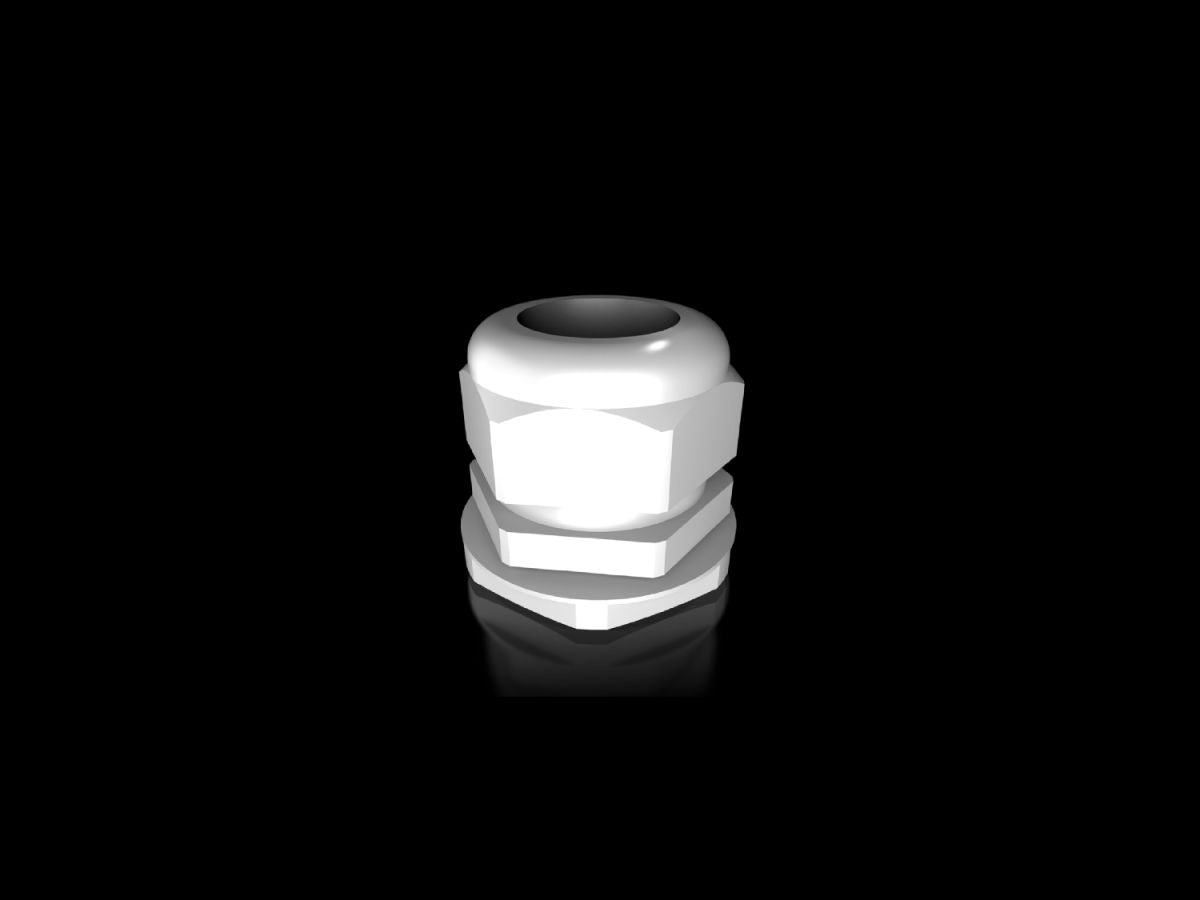

Rittal SZ 2411.641, Cable gland, polyamide
Rittal SZ 2411.641, Cable gland, polyamide
Regular price
€35,77
Regular price
Sale price
€35,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2411.641
Integrated clamping membranes ensure reliable tightening and strain relief to protect the cables.
| Article number: | SZ 2411.641 |
| Benefits | Because the gland and lock nut are sold together in a single pack, this saves additional ordering and storage. |
| Material | Polyamide 6Seal: CR/NBR |
| Colour | RAL 7035 |
| IP protection category to IEC 60 529 | IP 68 (5 bar, 30 min) |
| Dimensions | Height: 42 mm |
| Thread | M32 x 1.5 |
| Thread length | 10 mm |
| Min. cable diameter | 15 mm |
| Max. cable diameter | 21 mm |
| Operating temperature range | -30 °C...100 °C |
| torque | 12 Nm |
| Width across flats | 36 mm |
| Dimensions | Thread: M32 x 1.5Thread length: 10 mm |
| Type rating to UL 50E | Type 1 |
| Packs of | 15 pc(s). |
| Net weight | 0.48 kg |
| Gross weight | 0.503 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177809963 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ Cable gland, polyamide, size: M32x1,5, for cables ø 15-21 mm |
