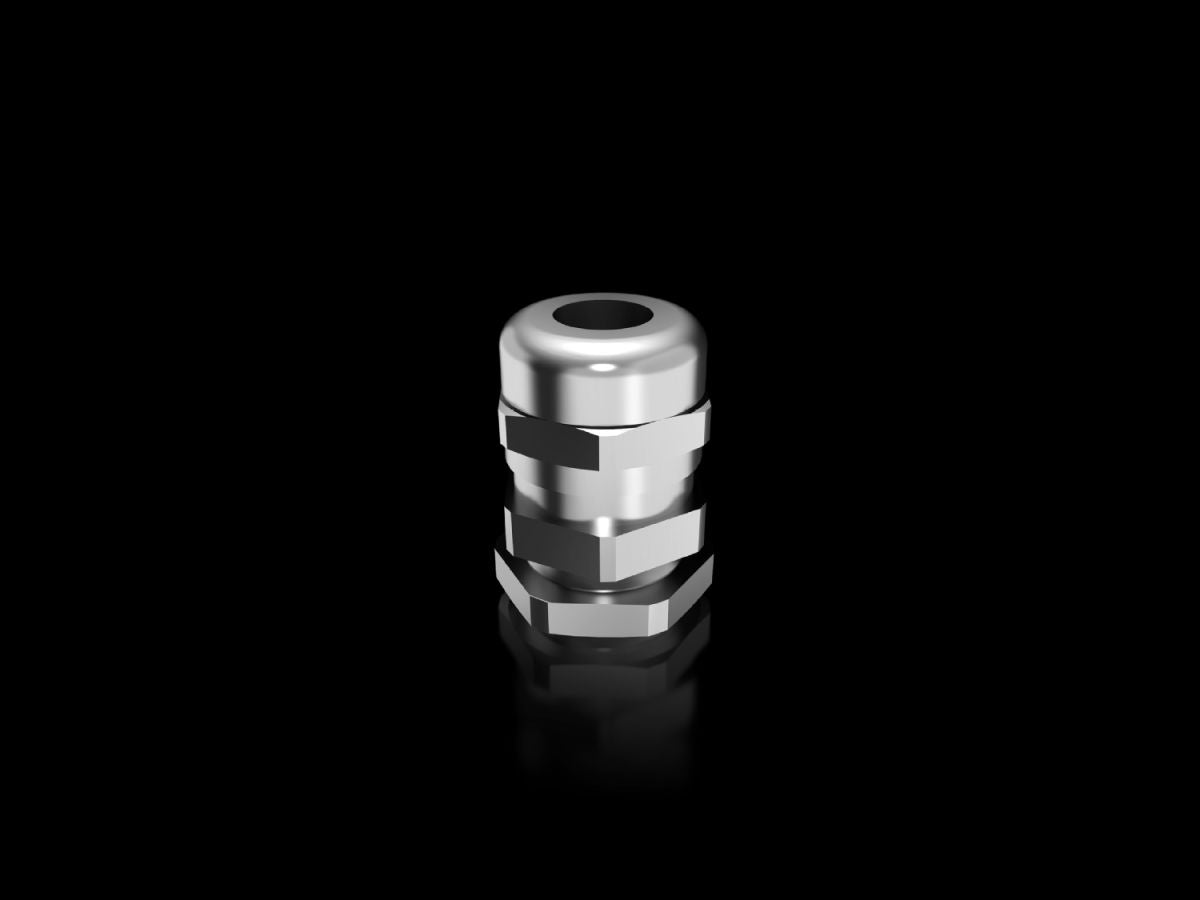

Rittal SZ 2411.801, Cable gland, brass
Rittal SZ 2411.801, Cable gland, brass
Regular price
€30,77
Regular price
Sale price
€30,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2411.801
Integrated clamping membrane ensure safe tightening and cable-friendly strain relief.
| Article number: | SZ 2411.801 |
| Benefits | Because the gland and lock nut are sold together in a single pack, this saves additional ordering and storage. |
| Material | BrassSeal: CR/NBR |
| Surface finish | Nickel-plated |
| IP protection category to IEC 60 529 | IP 68 (5 bar, 30 min) |
| Dimensions | Height: 22 mm |
| Thread | M12 x 1.5 |
| Thread length | 6 mm |
| Min. cable diameter | 3 mm |
| Max. cable diameter | 6.5 mm |
| Operating temperature range | -40 °C...100 °C |
| torque | 5.5 Nm |
| Width across flats | 14 mm |
| Dimensions | Thread: M12 x 1.5Thread length: 6 mm |
| Type rating to UL 50E | Type 4X |
| Packs of | 15 pc(s). |
| Net weight | 0.195 kg |
| Gross weight | 0.222 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177809994 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ Cable gland, brass, size: M12x1,5, for cables ø 3-6.5 mm |
