Rittal

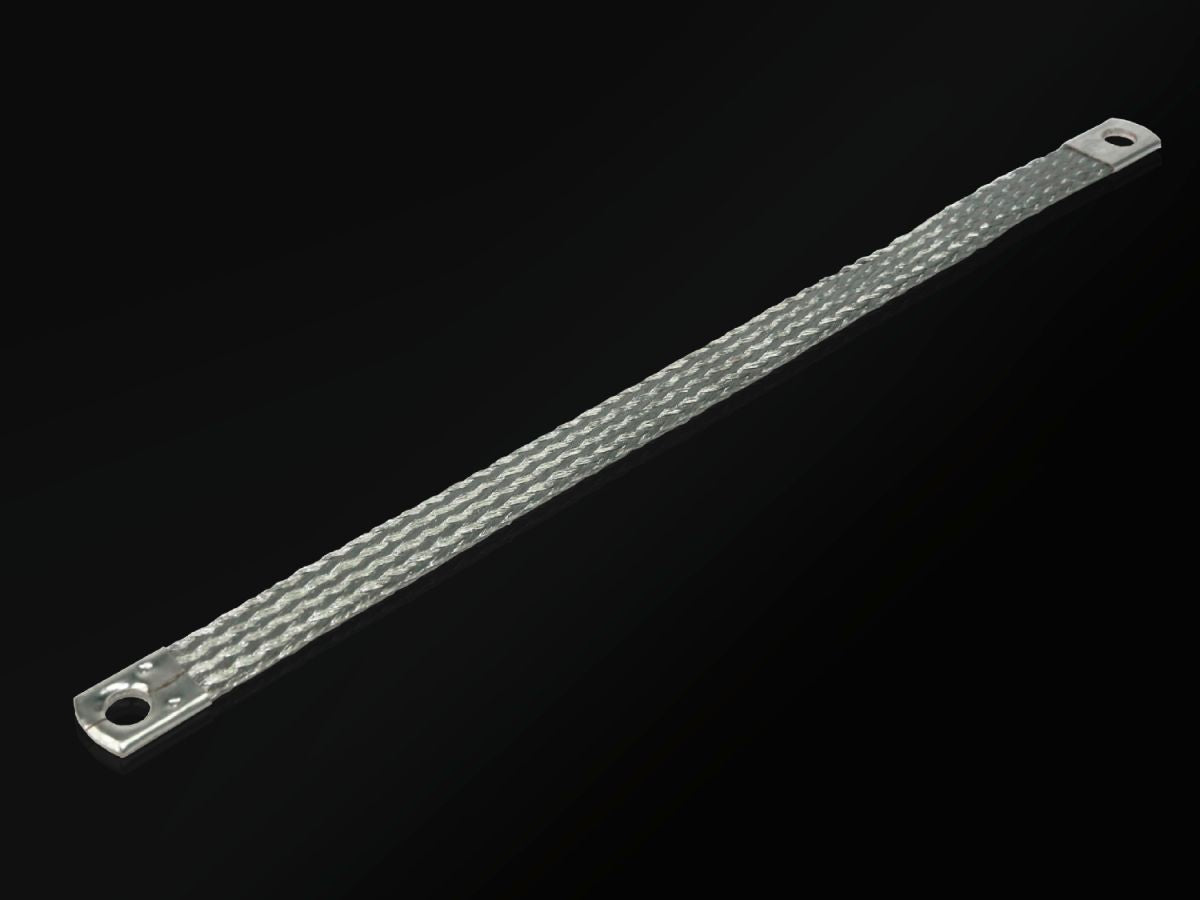

Rittal SZ 2412.316, Earthing braid
Rittal SZ 2412.316, Earthing braid
Regular price
€98,31
Regular price
Sale price
€98,31
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2412.316
Tin-plated copper, in various lengths and cross sections with press-fitted contact rings, earthing straps counteract the current displacement effect at high frequencies, flexible connection opportunities.
| Article number: | SZ 2412.316 |
| Product description | Tin-plated copper, in various lengths and cross-sections with press-fitted contact rings. Earthing braids counteract the current displacement effect at high frequencies, whilst at the same time offering highly flexible connection opportunities. |
| Cross-section | 16 mm² |
| Connection | M8 – M8 |
| Note | Please observe the assembly instructions or PE conductor brochure for the relevant enclosure or case system. |
| Dimensions | Length: 300 mm |
| Packs of | 10 pc(s). |
| Net weight | 0.42 kg |
| Gross weight | 0.52 kg |
| Customs tariff number | 74198010 |
| EAN | 4028177022591 |
| ETIM 9 | EC000839 |
| ETIM 8 | EC000839 |
| ECLASS 8.0 | 27062302 |
| Product description | SZ Earthing strap, size: M8, for diameter 16 mm² |
