Rittal

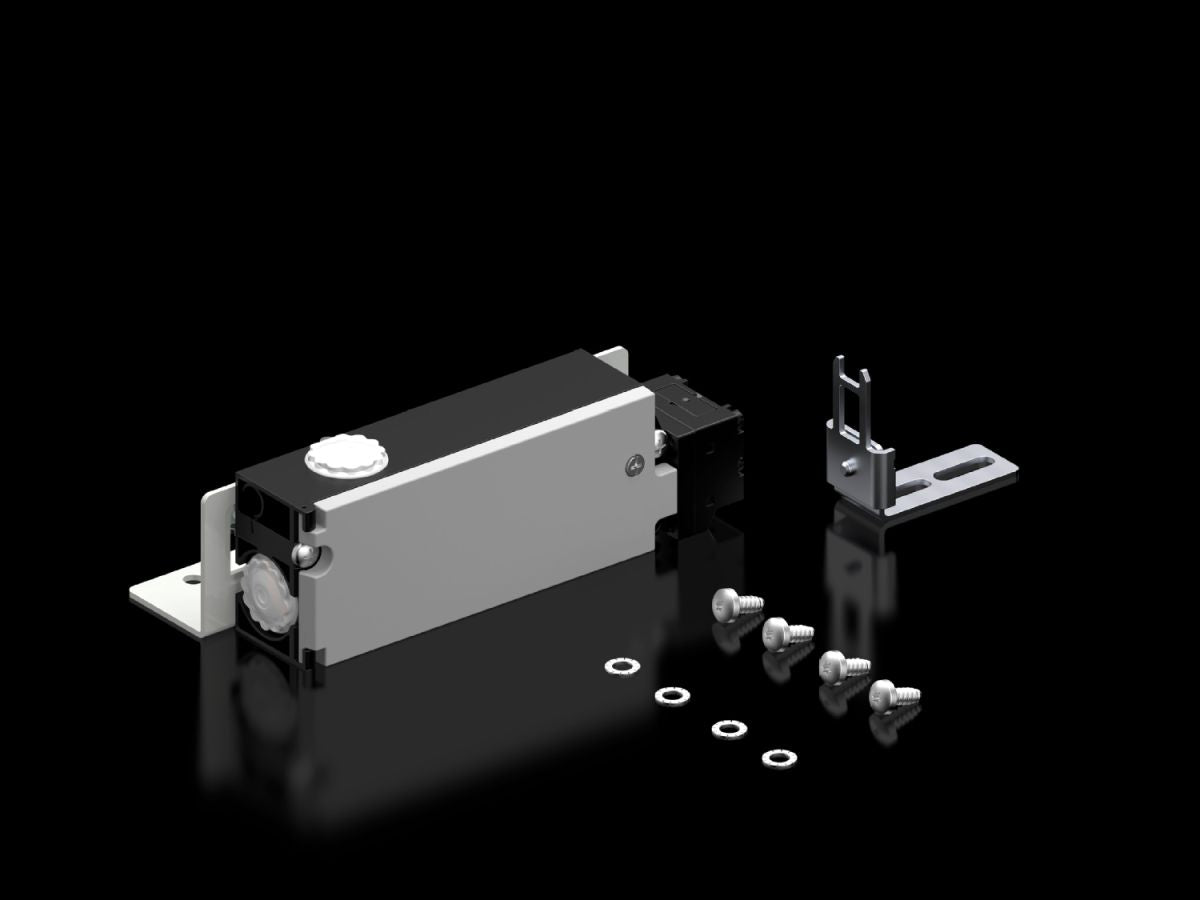

Rittal SZ 2418.000, Safety lock
Rittal SZ 2418.000, Safety lock
Regular price
€291,09
Regular price
Sale price
€291,09
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2418.000
Fitted to doors, to protect against contact with live electrical equipment whilst the master switch is ON.
| Article number: | SZ 2418.000 |
| Product description | Fitted to doors, to protect against contact with live electrical equipment whilst the master switch is ON. |
| Function principle | Locks the door when the master switch is ON. |
| Supply includes | LockActuatorAngle bracketAssembly parts |
| Assembly instruction | In two-door enclosures, the door-operated switch is required for the overlapping door, to indicate "enclosure door closed" |
| To fit | Enclosure type: VXEnclosure type: VX SEEnclosure type: TSEnclosure type: AX |
| Power consumption Pel | With DC: 8 W |
| Rated operating voltage | 24 V (DC) |
| Rated insulation voltage | 400 V AC |
| Rated impulse withstand voltage, phase to phase | 4000 V AC |
| Packs of | 1 pc(s). |
| Net weight | 0.76 kg |
| Gross weight | 0.847 kg |
| Customs tariff number | 83015000 |
| EAN | 4028177022690 |
| ETIM 9 | EC002626 |
| ETIM 8 | EC002626 |
| ECLASS 8.0 | 27189266 |
| Product description | SZ Security lock, 24 V DC |
