Rittal

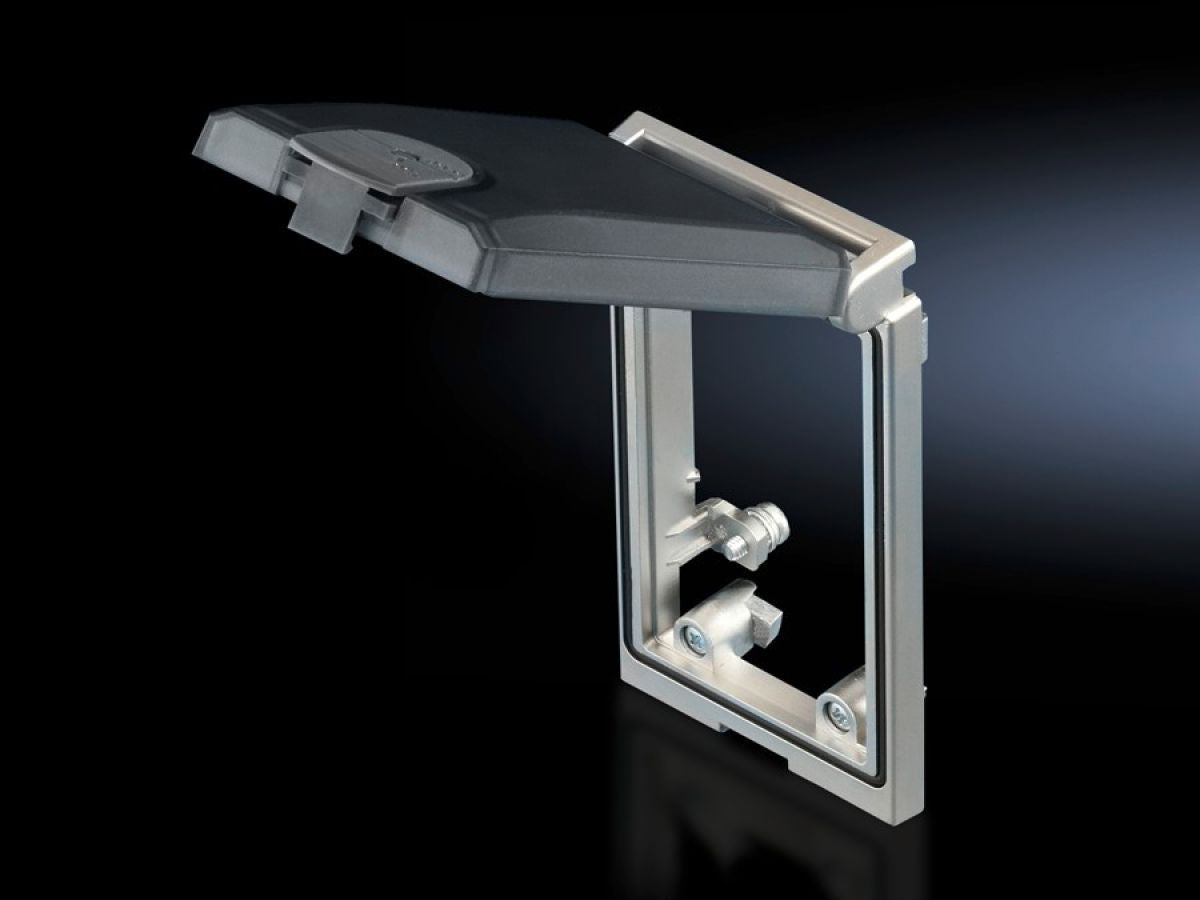

Rittal SZ 2482.300, Mounting frame, interface flap, modular
Rittal SZ 2482.300, Mounting frame, interface flap, modular
Regular price
€39,48
Regular price
Sale price
€39,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2482.300
Suitable for universal use, for rapid access to interfaces and sockets, the affected enclosure remains closed.
| Article number: | SZ 2482.300 |
| Design | Mounting frame, single, with plastic flap (semi-transparent) |
| Product description | For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access. |
| Function principle | The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°. |
| Material | Lock: PolycarbonateMounting frame, refined die-cast zincPlastic flap: Polycarbonate (semi-transparent) |
| Surface finish | Mounting frame: Matt nickel-plated |
| Colour | Lock: RAL 7024Screw terminals: yellow (RAL 1016) |
| Mounting cut-out | Cut-out width: 52 mmCut-out height: 91 mm |
| Installation options | In small and compact enclosures as a programming interface for controllers |
| Dimensions | Width: 65 mmHeight: 120 mm |
| IP protection category to IEC 60 529 | IP 65 with sealed flap and proper assembly |
| Packs of | 1 pc(s). |
| Net weight | 0.199 kg |
| Gross weight | 0.208 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177311695 |
| ETIM 9 | EC002625 |
| ETIM 8 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | SZ Interface flap, modular, mounting frame, single, with plastic flap, semi-transparent |
