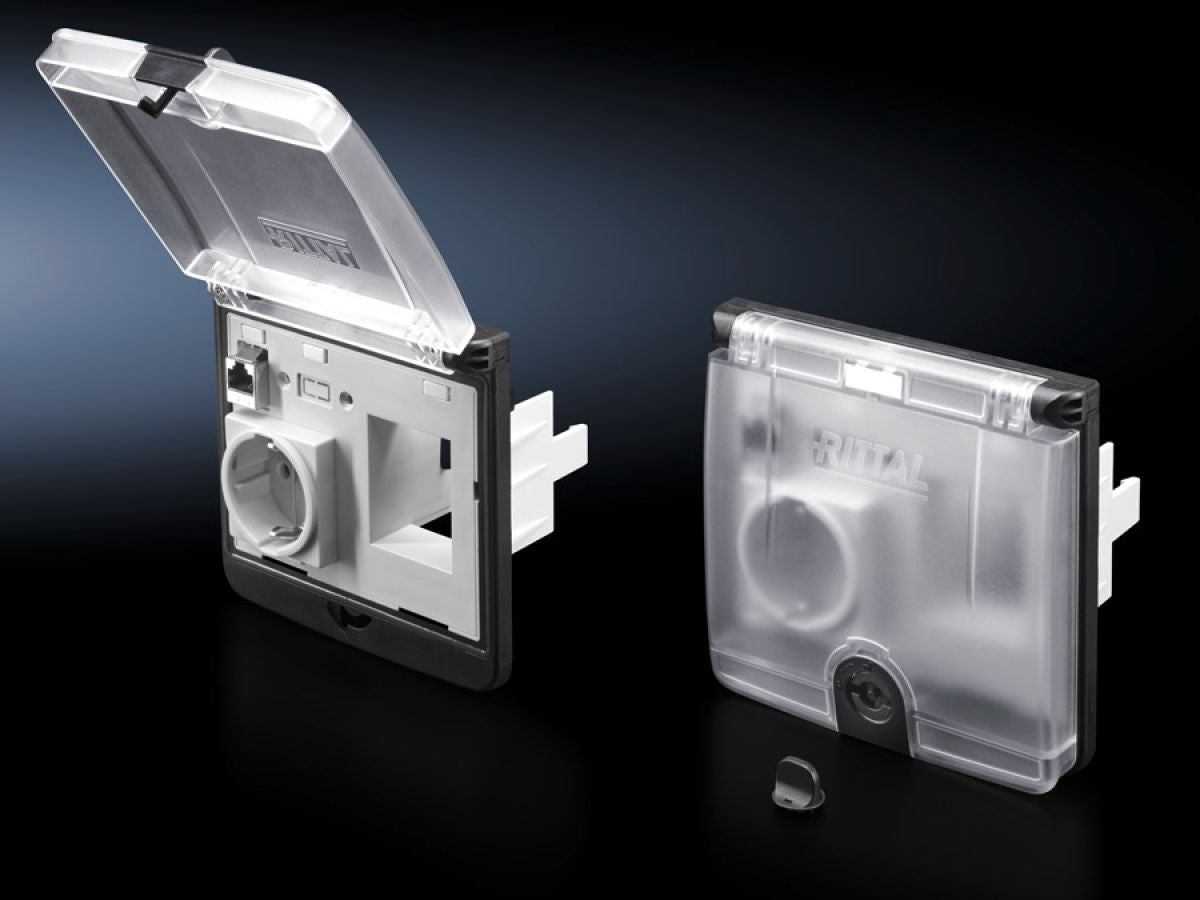

Rittal SZ 2482.600, Interface flap for RC circuit-breaker
Rittal SZ 2482.600, Interface flap for RC circuit-breaker
Regular price
€120,59
Regular price
Sale price
€120,59
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2482.600
According to standard EN 60 204-1, all circuits with a rated current of ≤ 20 A that supply sockets in or on machine enclosures must be fused with a residual-current circuit-breaker with a rated differential current of ≤ 30 mA. Prepared for the installation of standard, 2-pole RCBO circuit-breakers.
| Article number: | SZ 2482.600 |
| Design | Spring-action terminals max. 2 x 2.5 mm, connection at rear |
| Product description | According to standard EN 60 204-1, all circuits with a rated current of ≤ 20 A that supply sockets in or on machine enclosures must be fused with a residual-current circuit-breaker with a rated differential current of ≤ 30 mA. Prepared for the installation of standard, 2-pole RCBO circuit-breakers. |
| Benefits | Protection against fault currents and overload |
| Applications | As programming interface for controllers |
| Function principle | A snap fastener ensures reliable sealing. This may be locked if required. |
| Material | Mounting frame: Plastic PBT (black)Plastic flap: Polycarbonate (semi-transparent) |
| Supply includes | Interface flap, complete, consisting of plastic frame, socket (VDE), RJ 45 (jack/jack, Cat 5e) and cut-out for RC circuit-breakerKnockout provided for USB A (jack/jack)3 mm double-bit with slot-in rotary knob |
| Mounting cut-out | Cut-out width: 117 mmCut-out height: 91 mm |
| Note | Interface flap may only be used with fitted RC circuit-breaker |
| Dimensions | Width: 131 mmHeight: 127 mm |
| Rated operating voltage | 250 V, 1~, 50 Hz/60 Hz |
| Rated current 230 V, 50 Hz | 10 ‐ 16 A |
| IP protection category to IEC 60 529 | IP 65 |
| Packs of | 1 pc(s). |
| Net weight | 0.56 kg |
| Gross weight | 0.569 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177803732 |
| ETIM 9 | EC002625 |
| ETIM 8 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | SZ Interface flap, complete, mounting frame and interface inserts, with plastic flap, semi-transparent, RJ45, sockel modules Germany, knock-out for RDC protective switch |
