Rittal

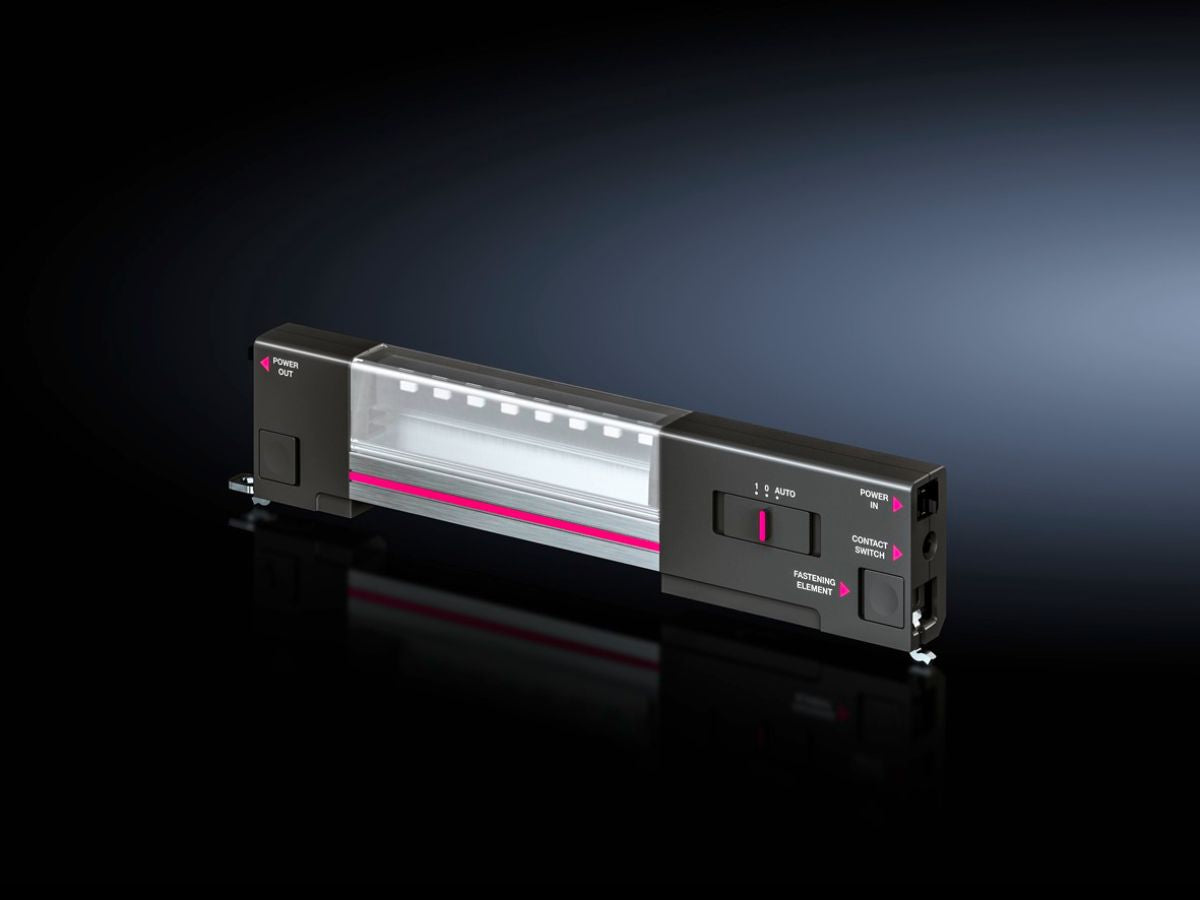

Rittal SZ 2500.104, LED system light
Rittal SZ 2500.104, LED system light
Regular price
€88,89
Regular price
Sale price
€88,89
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2500.104
LED system light – the first light especially for enclosures! Highly innovative LED technology for even more light into the very last corner.
| Article number: | SZ 2500.104 |
| Design | Without socket |
| Benefits | Optimum illumination of the entire enclosure |
| Design | Without socket |
| Material | Light body: Extruded aluminiumLight cover: PolycarbonateLight ends: PC-ABS |
| Colour | Enclosure: RAL 7016 |
| Supply includes | Assembly screws |
| Power consumption | 5 W |
| Connection options | Infeed, 2-pole |
| Protection class | II (all-insulated) |
| Light – installation type | Screw-fastening |
| Installation options | The internal mounting rail AX and the mounting bracket are required when installing in compact enclosures |
| Luminous flux | 400 lm |
| Light colour | 4000 K (neutral white) |
| Note | Connection accessories should be ordered separately |
| Dimensions | Width: 262 mmHeight: 55 mmDepth: 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| IP protection category to IEC 60 529 | IP 20 |
| Packs of | 1 pc(s). |
| Net weight | 0.28 kg |
| Gross weight | 0.287 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177920538 |
| ETIM 9 | EC000321 |
| ETIM 8 | EC000321 |
| ECLASS 8.0 | 27189241 |
| Product description | SZ LED system light, 400 lumens, L: 262 mm, 100-230 V, UL |
