Rittal

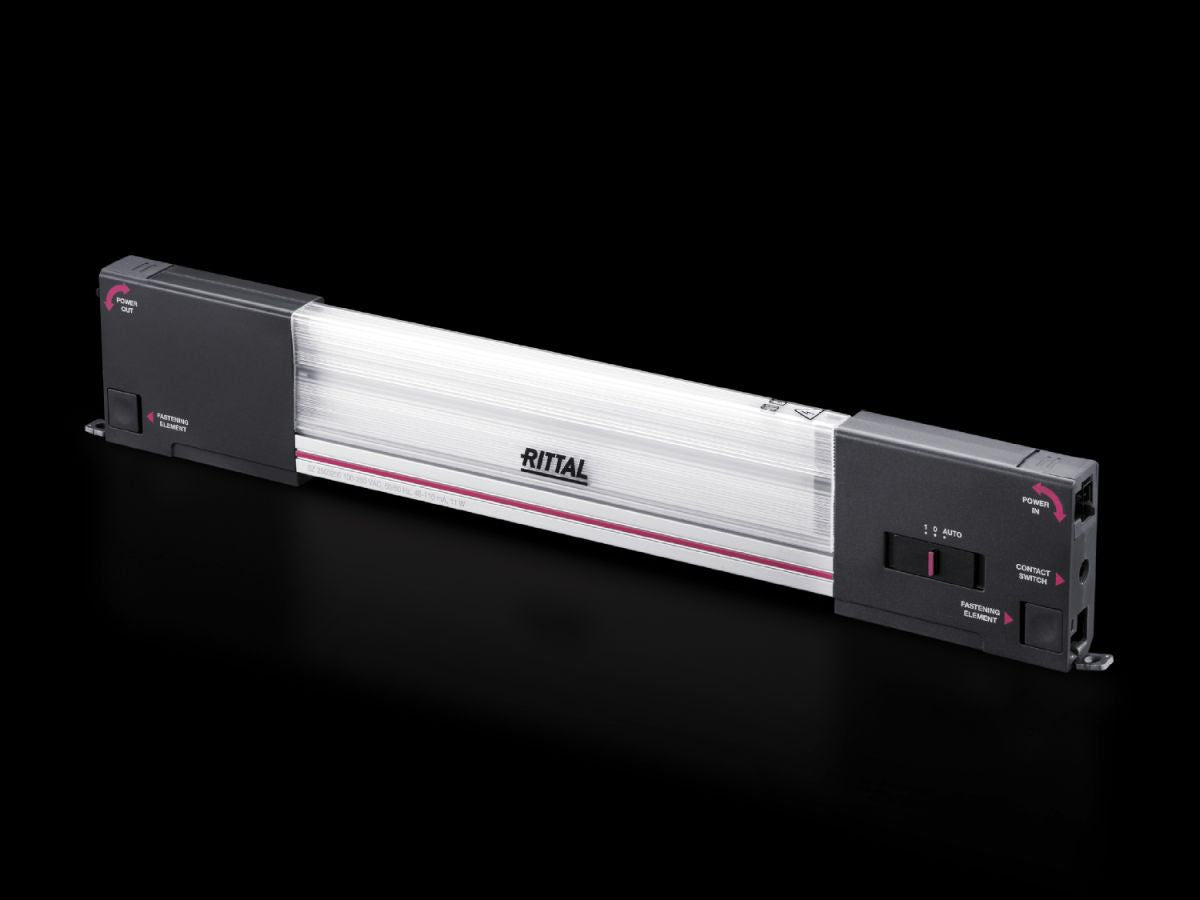

Rittal SZ 2500.220, LED system light
Rittal SZ 2500.220, LED system light
Regular price
€151,29
Regular price
Sale price
€151,29
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2500.220
LED system light – the first light especially for enclosures! Highly innovative LED technology for even more light into the very last corner.
| Article number: | SZ 2500.220 |
| Design | Without socket |
| Benefits | Optimum illumination of the entire enclosure |
| Design | 90° rotating connector |
| Material | Light body: Extruded aluminiumLight cover: PolycarbonateLight ends: PC-ABS |
| Colour | Enclosure: RAL 7016 |
| Supply includes | Assembly screws |
| Power consumption | 11 W |
| Connection options | Infeed, 2-pole |
| Protection class | III (SELV) |
| Light – installation type | Screw-fastening |
| Installation options | Directly onto the enclosure section with 25 mm pitch pattern |
| Luminous flux | 900 lm |
| Light colour | 4000 K (neutral white) |
| Note | Connection accessories should be ordered separately |
| Dimensions | Width: 437 mmHeight: 75 mmDepth: 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 24 V (DC) |
| IP protection category to IEC 60 529 | IP 20 |
| Packs of | 1 pc(s). |
| Net weight | 0.394 kg |
| Gross weight | 0.52 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177806979 |
| ETIM 9 | EC000321 |
| ETIM 8 | EC000321 |
| ECLASS 8.0 | 27189241 |
| Product description | SZ System Light LED, 900 Lumen, L: 437 mm, 24 V DC |
