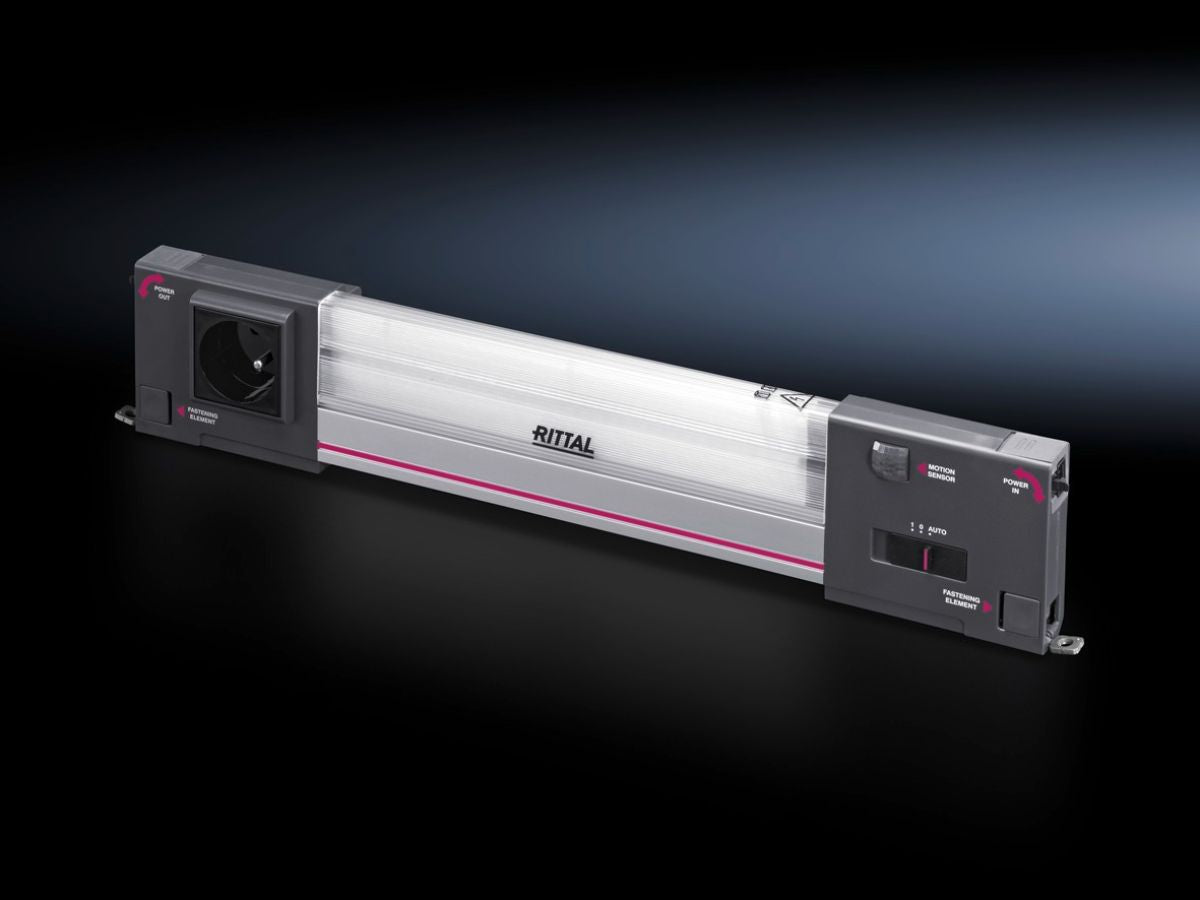

Rittal SZ 2500.312, LED system light
Rittal SZ 2500.312, LED system light
Regular price
€247,25
Regular price
Sale price
€247,25
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2500.312
LED system light – the first light especially for enclosures! Highly innovative LED technology for even more light into the very last corner.
| Article number: | SZ 2500.312 |
| Design | with socket, with motion detector |
| Benefits | Optimum illumination of the entire enclosure |
| Design | Motion sensor |
| Material | Light body: Extruded aluminiumLight cover: PolycarbonateLight ends: PC-ABS |
| Colour | Enclosure: RAL 7016 |
| Supply includes | Assembly screws |
| Power consumption | 13 W |
| Connection options | Infeed, 3-pole |
| Motion detector | Yes |
| Overvoltage category | II |
| Protection class | II (all-insulated) |
| Light – installation type | Screw-fastening |
| Rated impulse withstand voltage, phase to earth | 2500 V AC |
| Rated insulation voltage | 300 V AC |
| Installation options | Directly onto the enclosure section with 25 mm pitch pattern |
| Luminous flux | 1,200 lm |
| Light colour | 4000 K (neutral white) |
| Note | Connection accessories should be ordered separately |
| Dimensions | Width: 437 mmHeight: 85 mmDepth: 44 mm |
| Operating temperature range | -20 °C...55 °C |
| Sockets | F/B (type E, CEE 7/5) |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| Socket version | F/B (type E, CEE 7/5) |
| IP protection category to IEC 60 529 | IP 20 |
| Packs of | 1 pc(s). |
| Net weight | 0.63 kg |
| Gross weight | 0.707 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177811300 |
| ETIM 9 | EC000321 |
| ETIM 8 | EC000321 |
| ECLASS 8.0 | 27189241 |
| Product description | SZ LED system light, 1200 lumens, L: 437 mm, 100-230 V, with motion detector |
