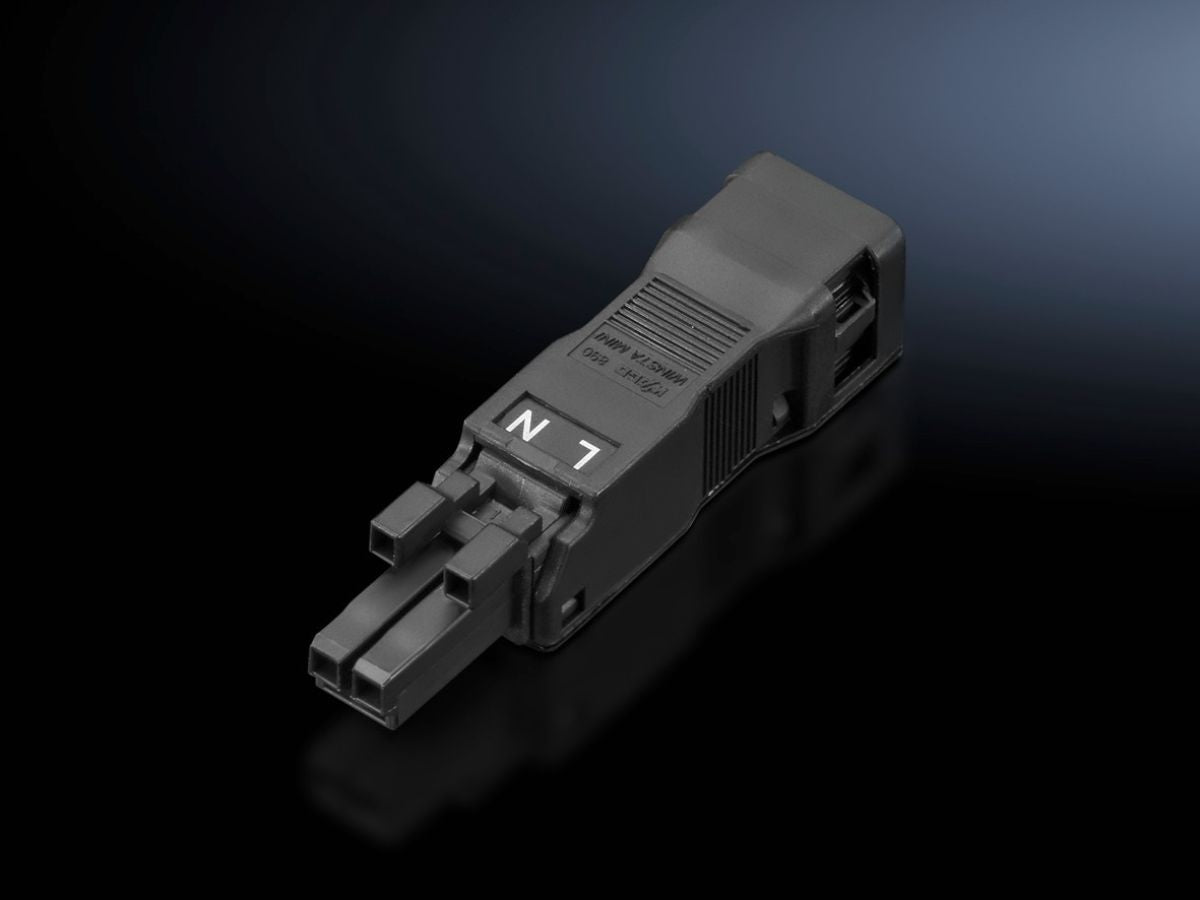

Rittal SZ 2500.620, Connection accessories for self-assembly for LED system light, connector/jack
Rittal SZ 2500.620, Connection accessories for self-assembly for LED system light, connector/jack
Regular price
€44,62
Regular price
Sale price
€44,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2500.620
Sockets and connectors for individual assembly of connection cables.
| Article number: | SZ 2500.620 |
| Design | Jack, 2-pole |
| Cross-section, nominal | 1.5 mm² |
| Dimensions | Width: 15.6 mmHeight: 13.2 mmDepth: 61.6 mm |
| Connection of round conductors, single-wire | 0.25 ‐ 1.5 mm² |
| Connection of round conductors, single-wire AWG | AWG 16 ‐ AWG 22 |
| Connection of round conductors, multi-wire | 0.25 ‐ 1 mm² |
| Connection of round conductors, multi-wire | AWG 18 ‐ AWG 22 |
| Rated operating voltage | 100 V - 240 V |
| Packs of | 5 pc(s). |
| Net weight | 0.05 kg |
| Gross weight | 0.067 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177918757 |
| ETIM 9 | EC002567 |
| ETIM 8 | EC000458 |
| ECLASS 8.0 | 27440314 |
| Product description | SZ Jack, for power supply and through-wiring, 2-pole, 100-240 V, Connection accessories for self-assembly |
