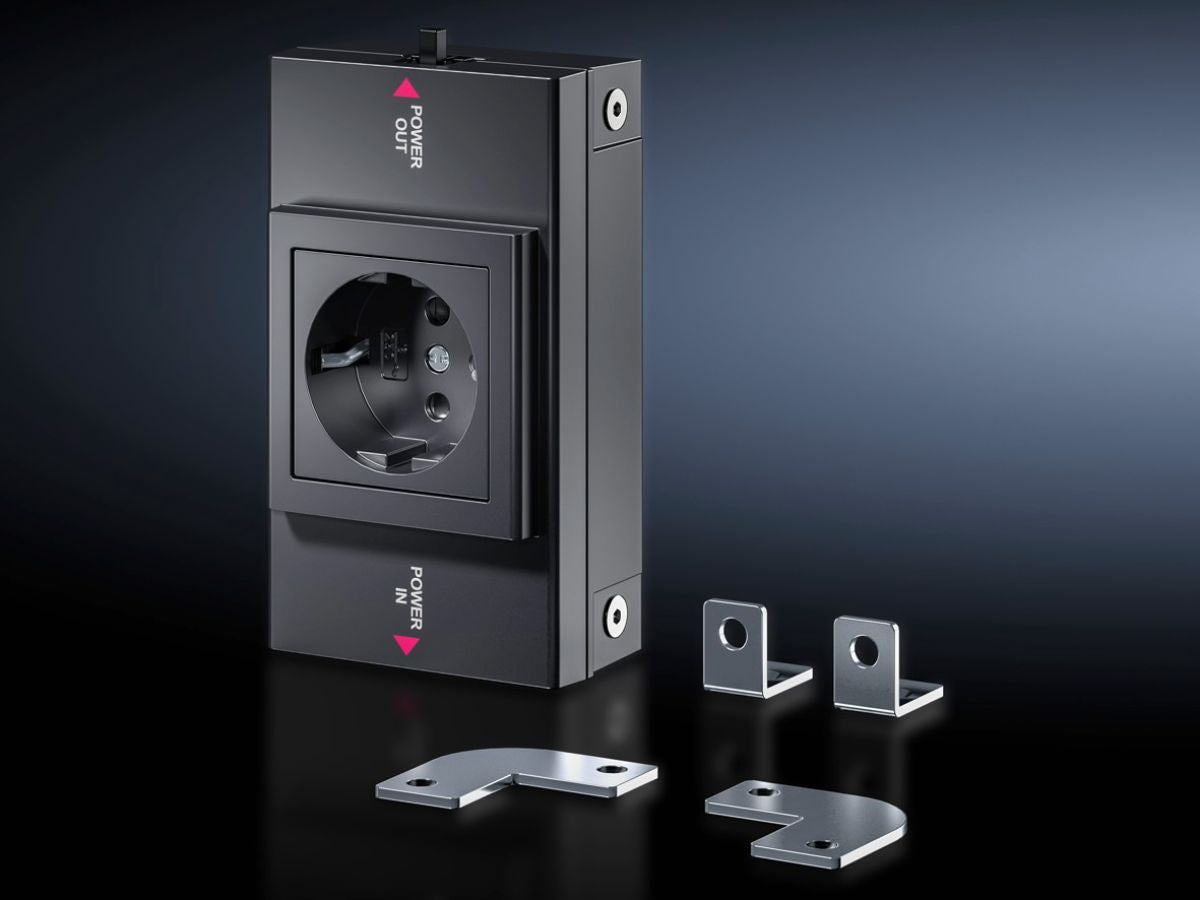

Rittal SZ 2500.710, Socket box for LED system light
Rittal SZ 2500.710, Socket box for LED system light
Regular price
€54,04
Regular price
Sale price
€54,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2500.710
In combination with the LED system light, the socket box creates a flexible modular system for international use.
| Article number: | SZ 2500.710 |
| Product description | In combination with the LED system light, the socket box creates a flexible modular system for international use. |
| Benefits | Identical connection accessories as for LED system light |
| Material | Plastic |
| Colour | RAL 7016 |
| Supply includes | Assembly parts |
| Connection options | Infeed, 3-pole |
| Note | Depending on the application, through-wiring or a 3-pole infeed may be required |
| Dimensions | Width: 163 mmHeight: 68 mmDepth: 43.5 mm |
| Operating temperature range | -20 °C...55 °C |
| Sockets | D, earthing-pin (type F, CEE 7/3) |
| Rated operating voltage | 195 V - 250 V, 50 Hz/60 Hz |
| Packs of | 1 pc(s). |
| Net weight | 0.26 kg |
| Gross weight | 0.28 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177956896 |
| ETIM 9 | EC000330 |
| ETIM 8 | EC000330 |
| ECLASS 8.0 | 27142604 |
| Product description | Socket box for LED system light, with socket for Germany, with earthing-pin (type F, CEE 7/3) |
