Rittal

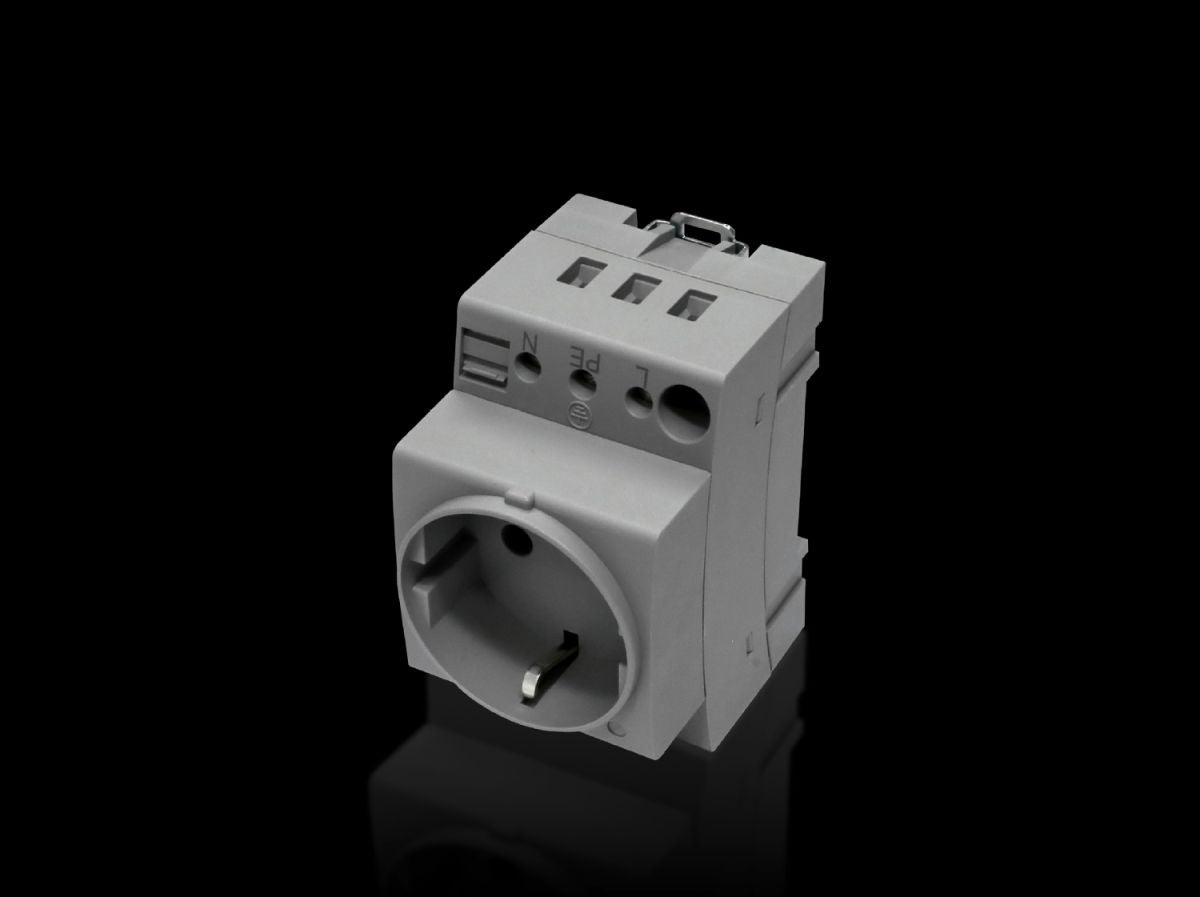

Rittal SZ 2506.120, Socket
Rittal SZ 2506.120, Socket
Regular price
€28,05
Regular price
Sale price
€28,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2506.120
For mounting on support rails TS 35/7.5 and TS35/15 to EN 60 715. Screw terminals uniformly from one side.
| Article number: | SZ 2506.120 |
| Product description | For mounting on support rails TS 35/7.5 and TS 35/15 to EN 60 715 Screw terminals uniformly accessible from one side. Enclosure width 45 mm. |
| Material | Polyamide |
| Colour | Grey |
| Rated voltage | 250 V AC |
| Rated current (max.) | 16 A |
| Sockets | D, earthing-pin (type F, CEE 7/3) |
| Packs of | 2 pc(s). |
| Net weight | 0.15 kg |
| Gross weight | 0.166 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177935600 |
| ETIM 9 | EC000330 |
| ETIM 8 | EC000330 |
| ECLASS 8.0 | 27142604 |
| Product description | SZ Socket for mounting on support rails, Schuko, CEE 7/4 |
