Rittal

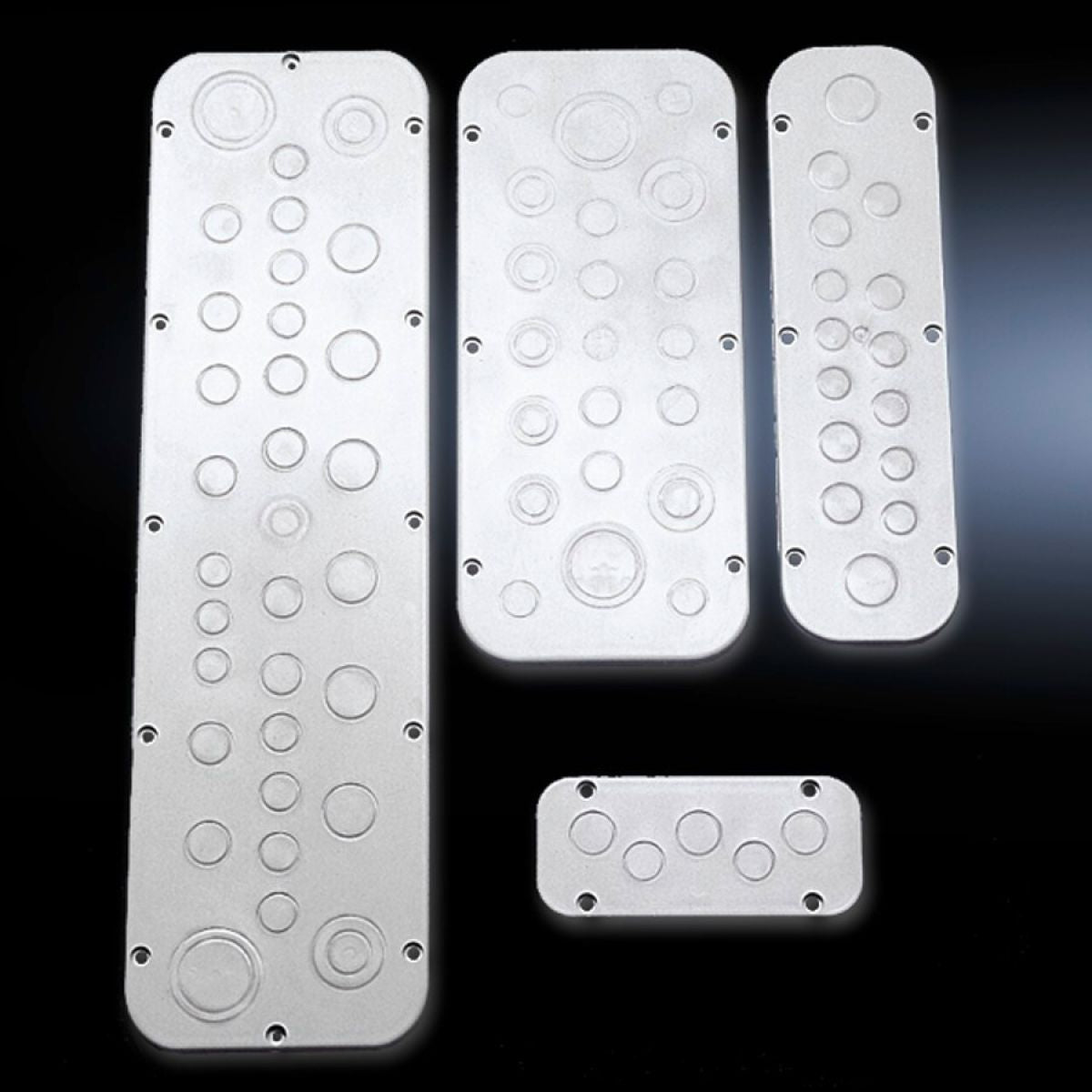

Rittal SZ 2561.010, Plastic cable gland plates with metric knockouts
Rittal SZ 2561.010, Plastic cable gland plates with metric knockouts
Regular price
€120,16
Regular price
Sale price
€120,16
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2561.010
With pre-punched holes for cable glands.
| Article number: | SZ 2561.010 |
| Product description | With pre-punched holes for cable glands. Use seal for standard gland plates. |
| Colour | RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| No. of metric knockouts | 3 x M165 x M204 x M252 x M322 x M40 |
| Dimensions | Width: 330 mmDepth: 90 mm |
| To fit | Enclosure type: AE |
| Gland plate | Size: 3 |
| Operating temperature range | -40 °C...70 °C |
| Protection category to IEC 60 529 | IP 55 if installed correctly |
| Number knockouts | 35422 |
| Metric diameter | M16 |
| Packs of | 10 pc(s). |
| Net weight | 1.13 kg |
| Gross weight | 1.396 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177550261 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Plastic cable gland plate, with metric knock-outs, WD: 330x90 mm, size: 3 |
