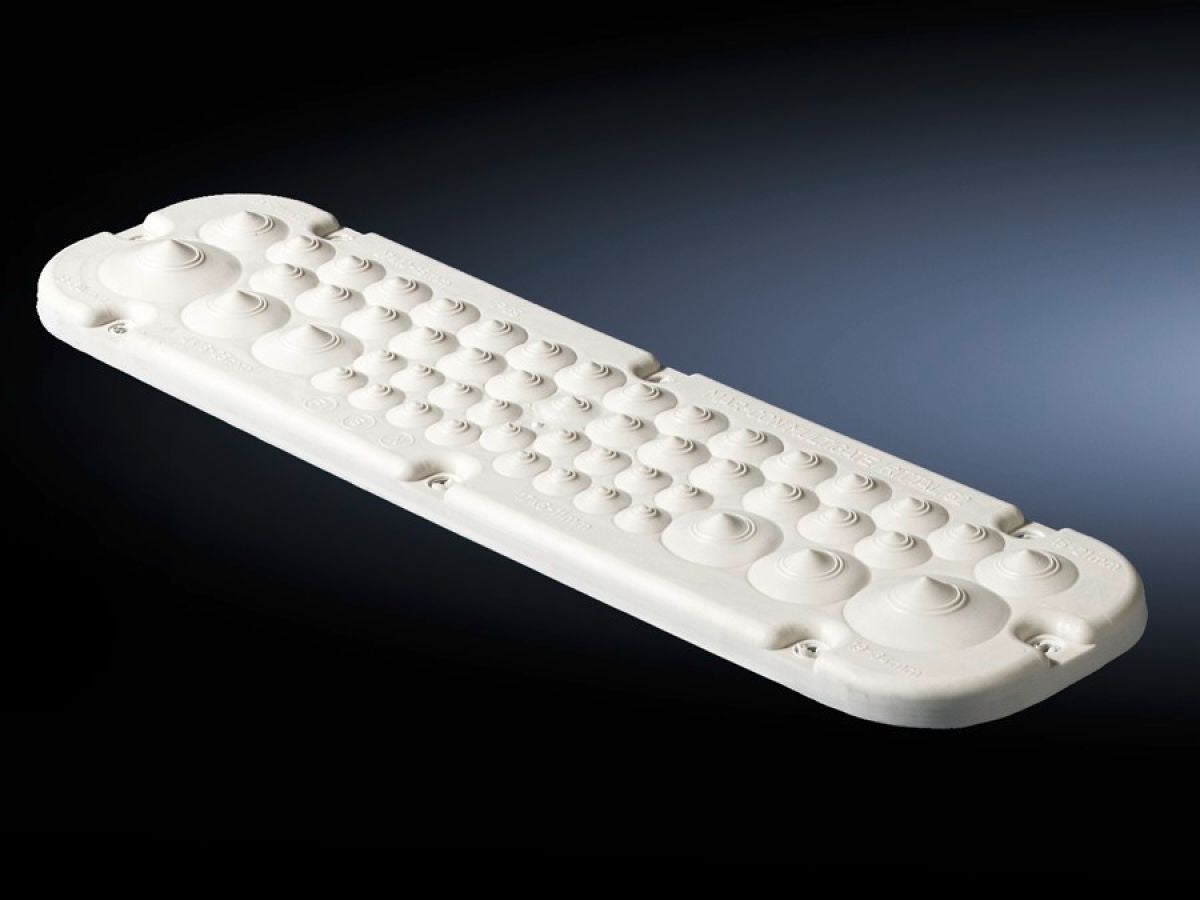

Rittal SZ 2561.500, Plastic cable gland plates with membranes
Rittal SZ 2561.500, Plastic cable gland plates with membranes
Regular price
€29,48
Regular price
Sale price
€29,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2561.500
Simply pierce the plastic and pull through the cable, protection category IP 65 with careful cable entry.
| Article number: | SZ 2561.500 |
| Product description | Simply pierce the plastic with a sharp object, and pull through the cable. |
| Material | Plastic to UL 94-V0Halogen free |
| Colour | Similar to RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| Dimensions | Width: 330 mmDepth: 90 mm |
| To fit | Enclosure type: AE |
| Gland plate | Size: 3 |
| Protection category to IEC 60 529 | IP 65 |
| No. of cable entries and Ø (mm) min.-max. | 17 x 6-11 |
| Packs of | 1 pc(s). |
| Net weight | 0.365 kg |
| Gross weight | 0.37 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177325593 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Plastic cable gland plate, with membranes, WD: 330x90 mm, size: 3 |
