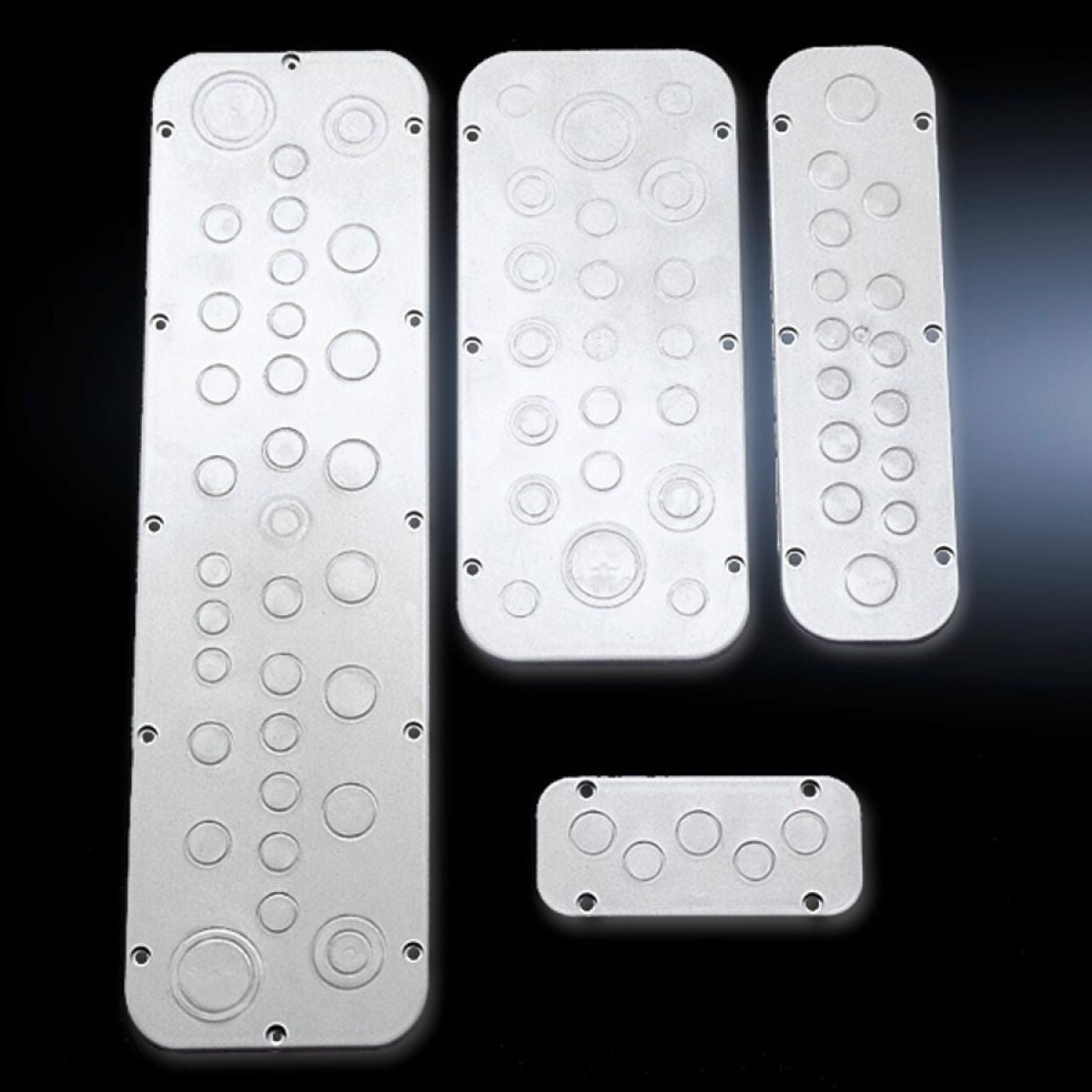

Rittal SZ 2563.010, Plastic cable gland plates with metric knockouts
Rittal SZ 2563.010, Plastic cable gland plates with metric knockouts
Regular price
€107,02
Regular price
Sale price
€107,02
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2563.010
With pre-punched holes for cable glands.
| Article number: | SZ 2563.010 |
| Product description | With pre-punched holes for cable glands. Use seal for standard gland plates. |
| Colour | RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| No. of metric knockouts | 2 x M124 x M168 x M2013 x M256 x M324 x M402 x M50 |
| Dimensions | Width: 530 mmDepth: 149 mm |
| To fit | Enclosure type: AE |
| Gland plate | Size: 5 |
| Operating temperature range | -40 °C...70 °C |
| Protection category to IEC 60 529 | IP 55 if installed correctly |
| Number knockouts | 24813642 |
| Metric diameter | M12 |
| Packs of | 5 pc(s). |
| Net weight | 1.75 kg |
| Gross weight | 1.949 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177550285 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Plastic cable gland plate, with metric knock-outs, WD: 530x149 mm, size: 5 |
