Rittal

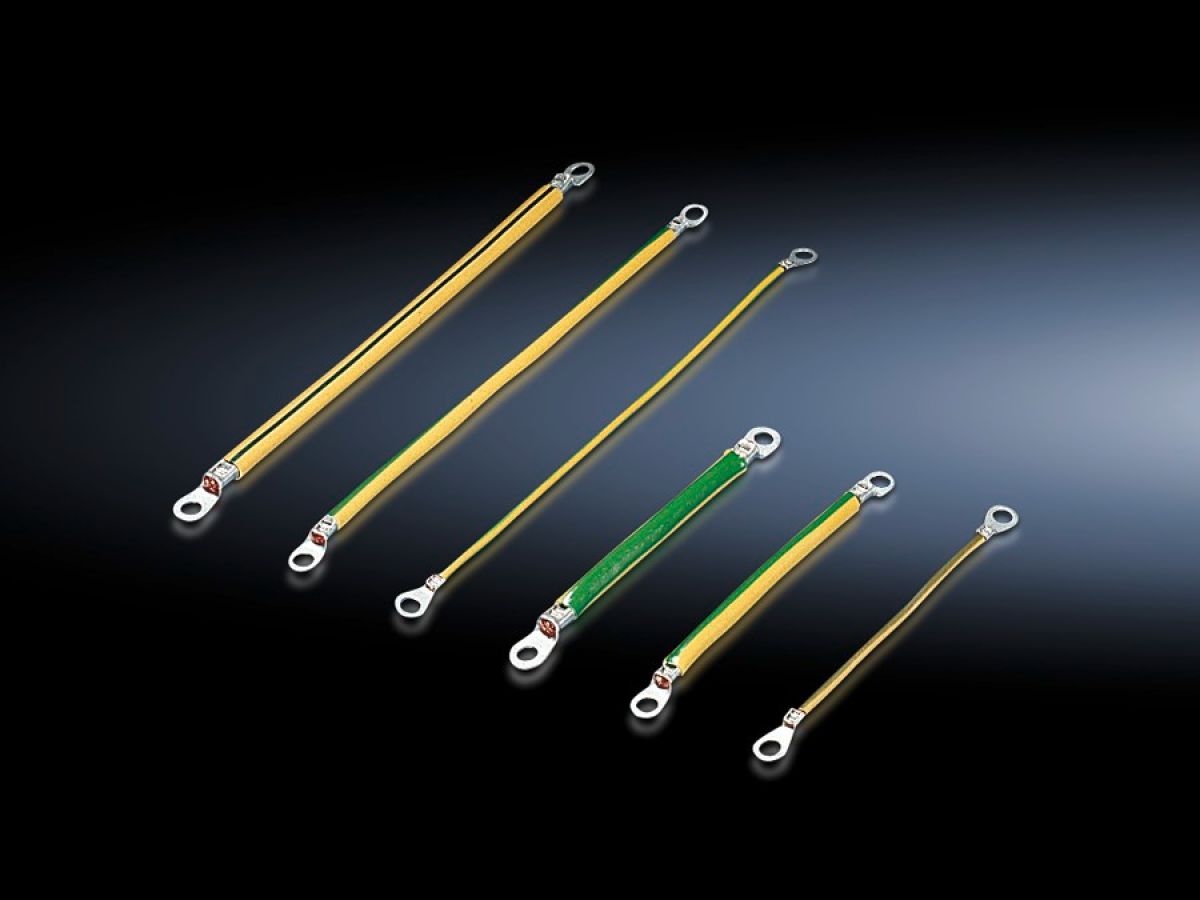

Rittal SZ 2565.110, Earth straps
Rittal SZ 2565.110, Earth straps
Regular price
€32,77
Regular price
Sale price
€32,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2565.110
For configuring a reliable earthing connection with perfect contact: With ring terminals in M6 and M8 to match the earthing screw, length-optimised and ready to install.
| Article number: | SZ 2565.110 |
| Product description | For configuring a reliable earthing connection with perfect contact. |
| Benefits | With ring terminals in M6 and M8 to match the earthing screws |
| Cross-section | 10 mm² |
| Connection | M6 – M8 |
| Installation options | HD connection options: Door/cover M6, enclosure M6, mounting plate M8 |
| Note | Please observe the assembly instructions or PE conductor brochure for the relevant enclosure or case system. |
| Dimensions | Length: 300 mm |
| Packs of | 5 pc(s). |
| Net weight | 0.17 kg |
| Gross weight | 0.179 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177319332 |
| ETIM 9 | EC000839 |
| ETIM 8 | EC000839 |
| ECLASS 8.0 | 27062302 |
| Product description | SZ Earth strap, connection: M6-M8, for diameter 10 mm², L: 300 mm |
