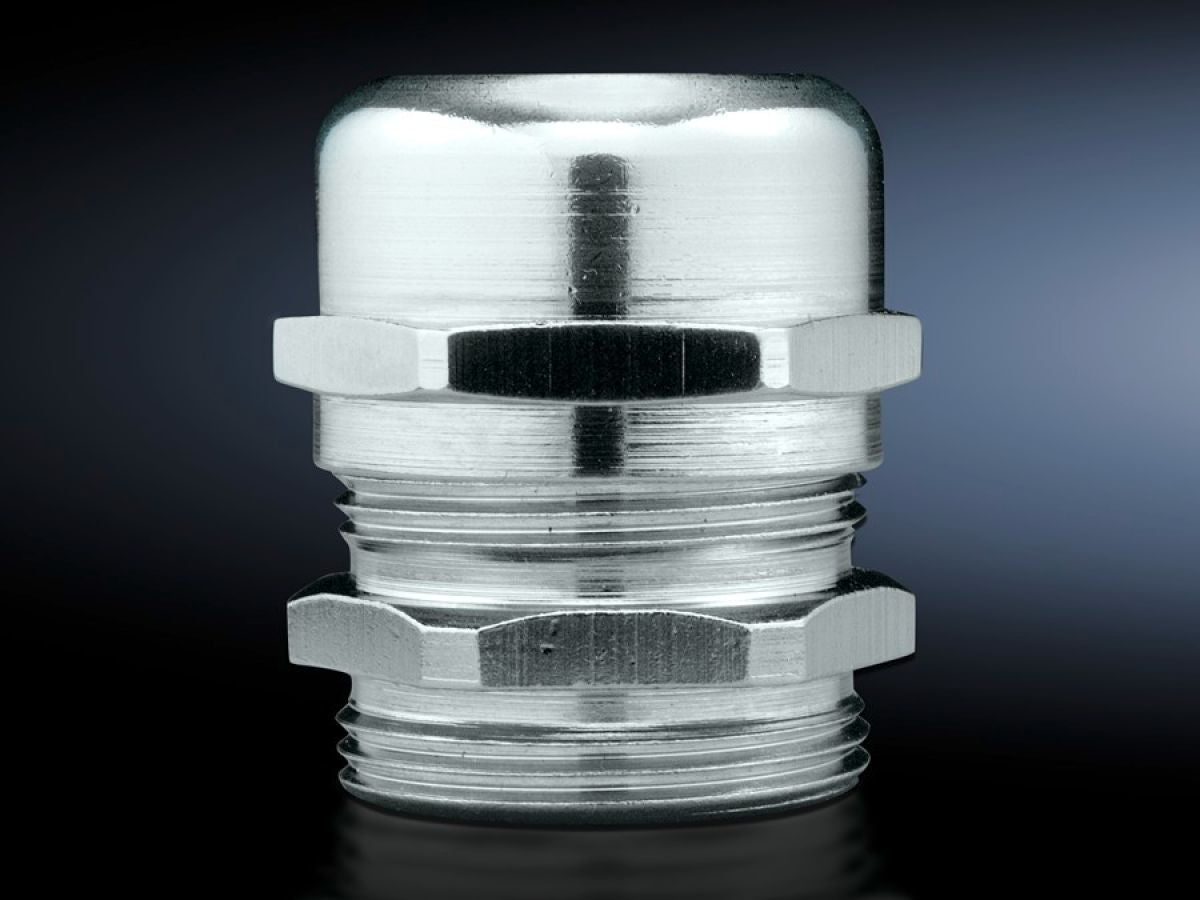

Rittal SZ 2843.400, EMC cable glands
Rittal SZ 2843.400, EMC cable glands
Regular price
€30,91
Regular price
Sale price
€30,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2843.400
Integrated clamping membranes ensure reliable tightening and strain relief to protect the cables.
| Article number: | SZ 2843.400 |
| Design | Cable glands, metric |
| Product description | The cable sheathing may optionally be interrupted at the contact point or removed completely inside the enclosure. The cable shielding in the enclosure is retained. The supplied lock nut cuts automatically into the paint when screwed onto spray-finished enclosure surfaces, thus creating a conductive connection. |
| Material | BrassSeal: CR/NBR |
| Surface finish | Nickel-plated |
| Note | Minimum shield diameter = cable diameter less cable sheathing |
| Min. cable diameter | 19 mm |
| Max. cable diameter | 28 mm |
| Protection category IP69K | IP 69K |
| IP protection category to IEC 60 529 | IP 68 |
| Shield diameter (min.) | 15 mm |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 0.17 kg |
| Gross weight | 0.18 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177247055 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ EMC cable glands, metric, size: M40 |
