Rittal

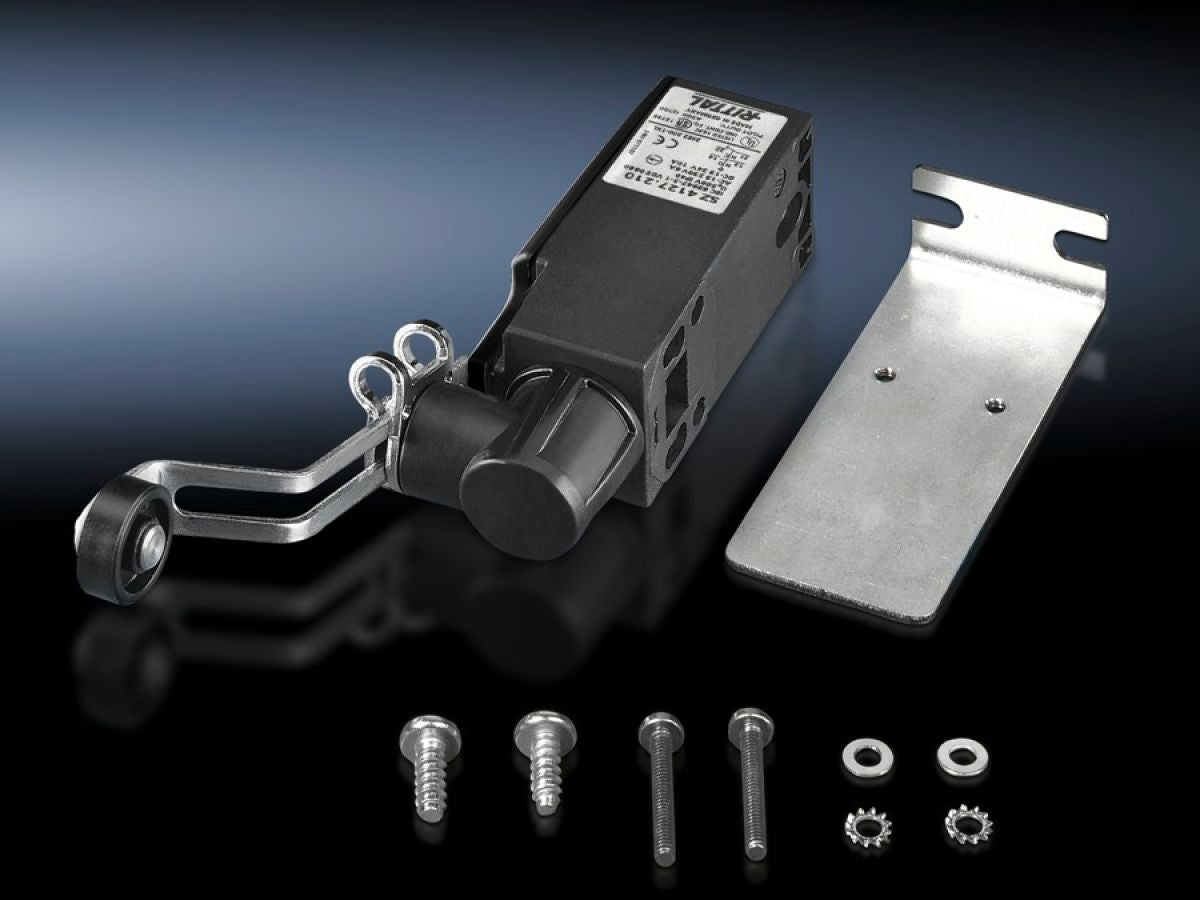

Rittal SZ 4127.210, Door-operated switch
Rittal SZ 4127.210, Door-operated switch
Regular price
€76,61
Regular price
Sale price
€76,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 4127.210
with mounting accessories, with or without connection cable.
| Article number: | SZ 4127.210 |
| Design | with toggle for swing frame, without connection cable |
| Function principle | The toggle is actuated via the tubular door frame of the sheet steel door, or in the case of glazed doors, via an adaptor included with the supply. |
| Note | For installation in VX IT only in conjunction with VX mounting bracket for door-operated switch |
| Rated impulse withstand voltage, phase to phase | 6000 V AC |
| Rated insulation voltage | 400 V AC |
| Installation options | for TS enclosures with installed large swing frame |
| Electrical connection | 240 V AC/6 A125 V AC/8 A24 V AC/6 A24 V DC/6 A |
| Rated operating voltage | 400 V |
| IP protection category to IEC 60 529 | IP 40 |
| Packs of | 1 pc(s). |
| Net weight | 0.231 kg |
| Gross weight | 0.235 kg |
| Customs tariff number | 85365019 |
| EAN | 4028177581326 |
| ETIM 9 | EC002626 |
| ETIM 8 | EC002626 |
| ECLASS 8.0 | 27189266 |
| Product description | SZ Door-operated switch, with toggle, without connection cable, UL |
