Rittal

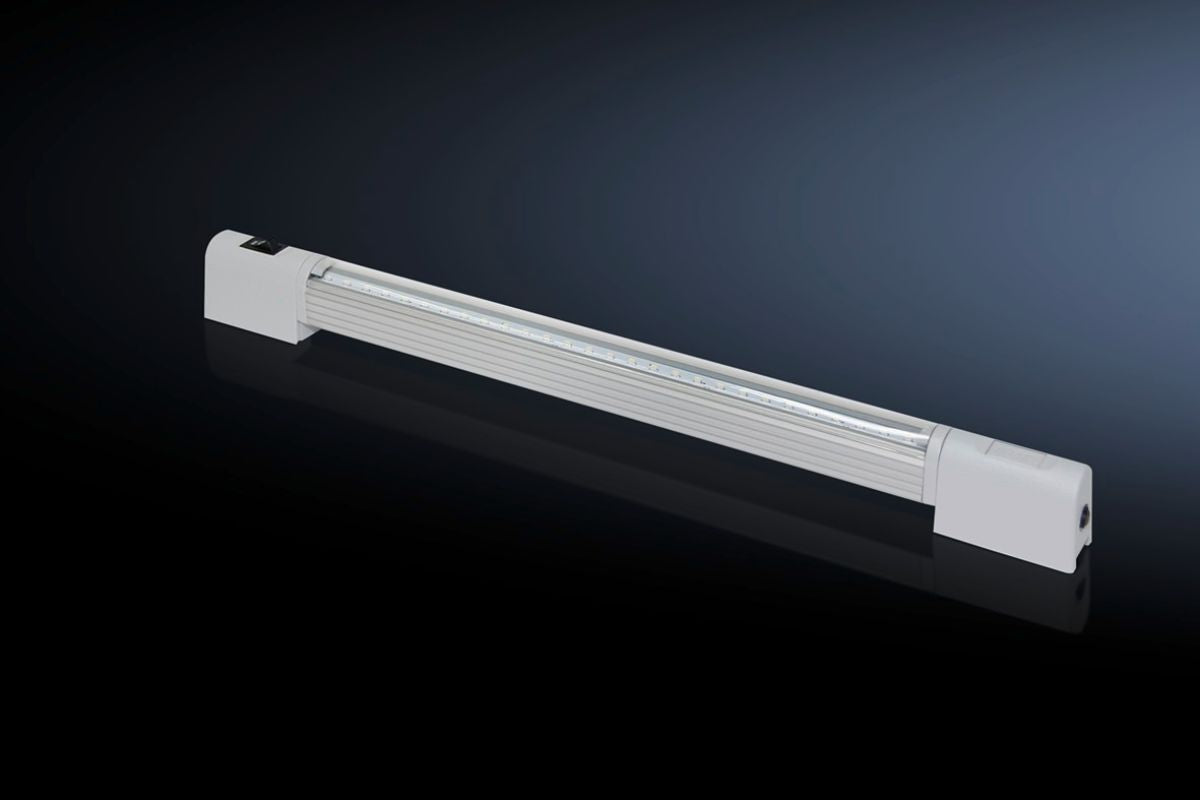

Rittal SZ 4140.820, LED compact system light
Rittal SZ 4140.820, LED compact system light
Regular price
€134,30
Regular price
Sale price
€134,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 4140.820
Supply voltage: 24 V DC
| Article number: | SZ 4140.820 |
| Benefits | Max. EMC capacity. |
| Function principle | Integral through-wiring. |
| Material | Light body: Extruded aluminiumLight cover: Polycarbonate (halogen-free)Light ends: PC-ABS |
| Colour | Similar to RAL 7035 |
| Supply includes | LED compact system lightLightLight coverAssembly parts |
| Mounting distance screws | 350 mm |
| Connection options | Power supply via connectors |
| Light | LEDs, cold white |
| Protection class | III (SELV) |
| Switch (type) | Integral on/off/door-operated switch |
| Light cover | Yes |
| Light – installation type | Screw-fastening |
| Rated impulse withstand voltage, phase to earth | Depending on the power pack |
| Rated impulse withstand voltage, phase to phase | Depending on the power pack |
| Rated insulation voltage | Depending on the power pack |
| Rated current max DC note | When configuring rows of lights, the maximum rated current is 2 amperes |
| With DC | 0.08 A |
| Number of LEDs | 20 |
| Mounting distance clip/magnet | 275 mm |
| Installation options | Directly onto the enclosure section with 25 mm pitch pattern |
| Note | Only intended for use in enclosures and sealed cases |
| Light cone adjustment | Yes |
| Dimensions | Width: 330 mmHeight: 32.8 mmDepth: 20.64 mm |
| Rated operating voltage | 24 V (DC) |
| IP protection category to IEC 60 529 | IP 20 |
| Packs of | 1 pc(s). |
| Net weight | 0.29 kg |
| Gross weight | 0.296 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177630130 |
| ETIM 9 | EC000321 |
| ETIM 8 | EC000321 |
| ECLASS 8.0 | 27189241 |
| Product description | SZ System light LED compact, WHD: 330x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode |
