Rittal
Rittal SZ 4347.000, System support rails
Rittal SZ 4347.000, System support rails
Regular price
€100,03
Regular price
Sale price
€100,03
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 4347.000

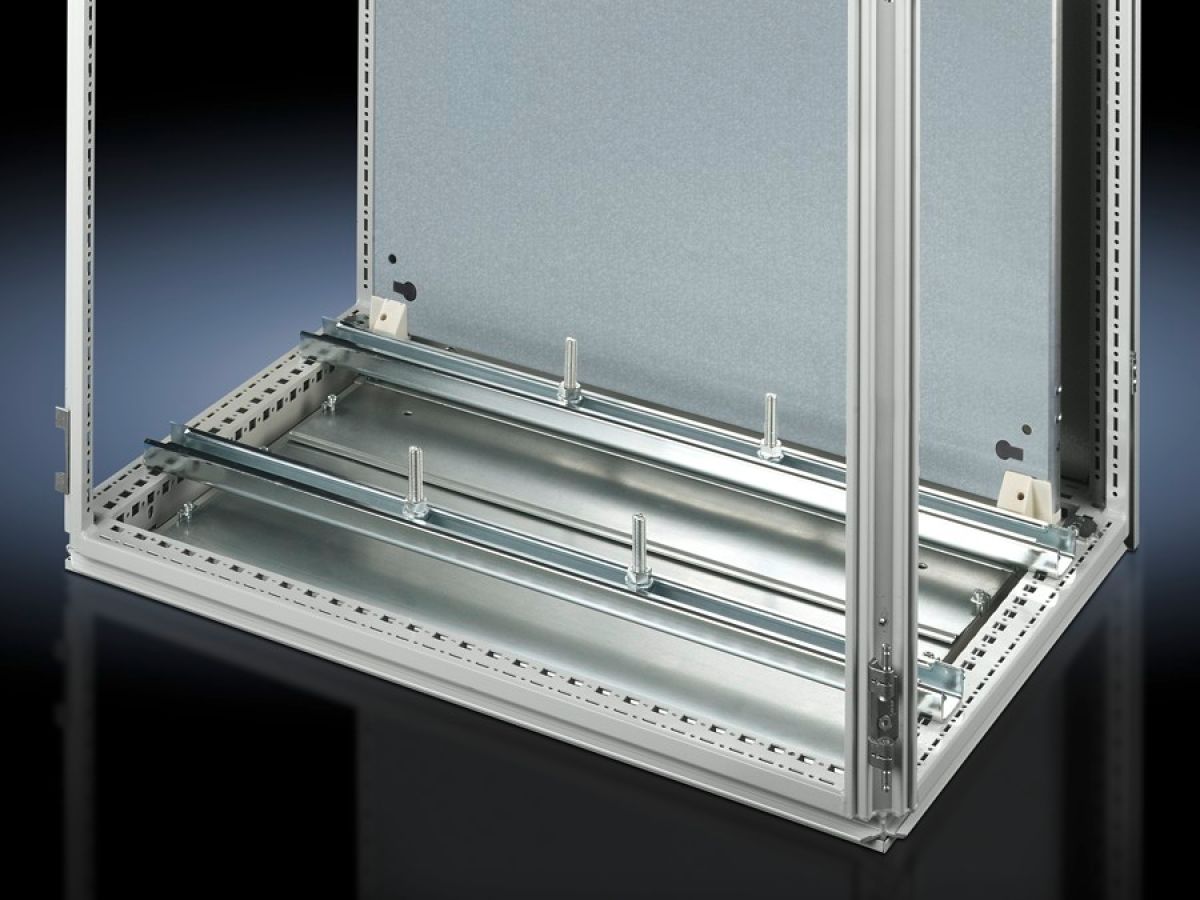

For heavy installed equipment such as transformers. T-head screw and slot in the support rail accommodate all mounting dimensions.
| Article number: | SZ 4347.000 |
| Product description | For heavy installed equipment such as transformers. T-head screw and slot in the support rail accommodate all mounting dimensions. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | 2 system support rails (45 x 25 mm)4 T-head screws M12 x 60 mmAssembly parts |
| Installation options | On the vertical TS enclosure section via snap-on nuts TS 8800.808 or adaptor rails for VX compatibility, height-offset, via TS punched rail 25 x 38 mm |
| To fit | Enclosure type: TSWidth: = 1,000 mm |
| Packs of | 2 pc(s). |
| Net weight | 4.64 kg |
| Gross weight | 4.839 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177099395 |
| ETIM 9 | EC000293 |
| ETIM 8 | EC001285 |
| ECLASS 8.0 | 27189261 |
| Product description | SZ Free-standing enclosure system, for W: 1000 mm |
