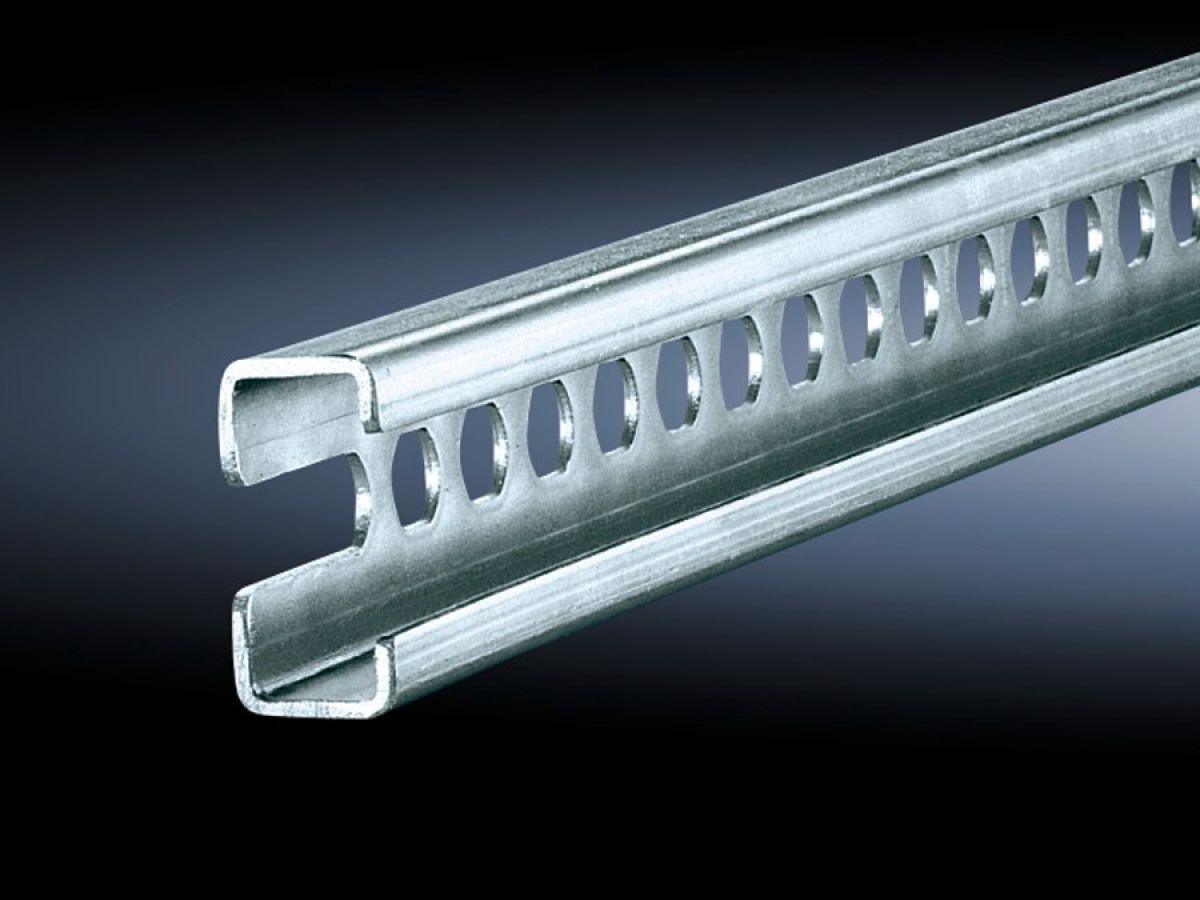

Rittal SZ 4944.000, C rails 30/15 to EN 60 715 for VX, TS, VX SE
Rittal SZ 4944.000, C rails 30/15 to EN 60 715 for VX, TS, VX SE
Regular price
€69,04
Regular price
Sale price
€69,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 4944.000
For direct external mounting on the horizontal enclosure section or vertical enclosure section with additional assembly components.
| Article number: | SZ 4944.000 |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Length | 555 mm |
| Installation options | On the inner mounting level of the VX enclosure section |
| VX base/plinth installation options | In base/plinth width 600 mm on the base/plinth trim panels, in conjunction with holder/spacer |
| AX base/plinth installation options | In base/plinth width 600 mm, in conjunction with metal multi-tooth screws |
| To fit | Enclosure type: VXTSAX wall-mounted enclosure, 3-partTo fit width/depth: 600 mm |
| To fit | Base/plinth system AX |
| Packs of | 6 pc(s). |
| Net weight | 2.118 kg |
| Gross weight | 2.4 kg |
| PCF per pack (cradle-to-gate) | 9.1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177114593 |
| ETIM 9 | EC000386 |
| ETIM 8 | EC000386 |
| ECLASS 8.0 | 27400602 |
| Product description | SZ C rail 30/15 to EN 60 715, for TS, SE, for W/D: 600 mm, L: 555 mm |
