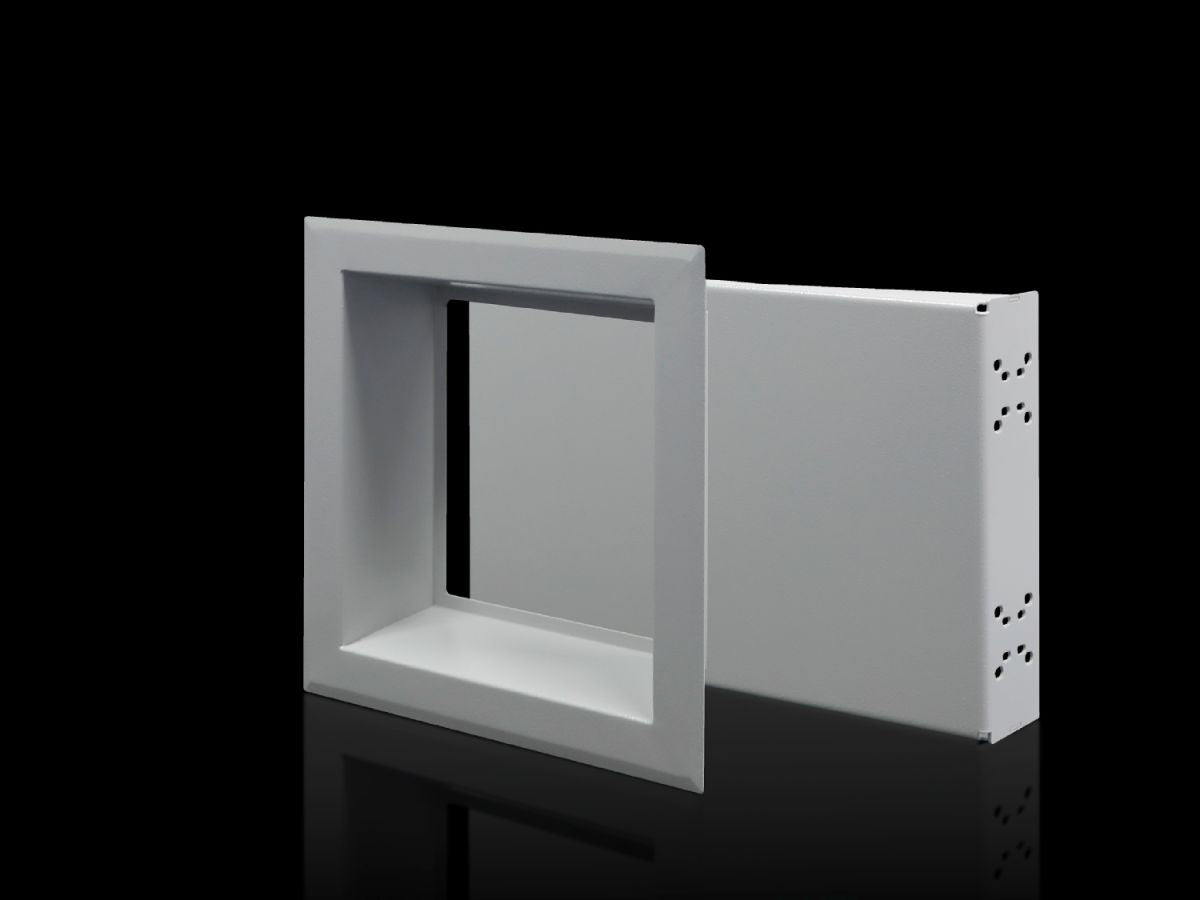

Rittal SZ 7993.146, Main switch installation adaptor for door installation
Rittal SZ 7993.146, Main switch installation adaptor for door installation
Regular price
€404,97
Regular price
Sale price
€404,97
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 7993.146
Master switch adaptor for installation in the Rittal enclosure system VX25, TS 8 and VX SE. The master switch adaptor allows a master switch handle to be fitted in a fixed, recessed position in the enclosure door.
| Article number: | SZ 7993.146 |
| Product description | Master switch adaptor for installation in the Rittal enclosure system VX25, TS 8 and VX SE. The master switch adaptor allows a master switch handle to be fitted in a fixed, recessed position in the enclosure door. |
| Material | Sheet steel, 1.5 mm |
| Surface finish | Powder-coated, textured paint |
| Colour | RAL 7035 |
| Supply includes | Switch holderSealing frameCellular polyethylene |
| To fit door width | 500 mm |
| Installation options | The switch holder to accommodate the rotating drive is mounted directly in front of the door on one or two punched sections with mounting flanges |
| Assembly instruction | The hole for inserting the rotating drive may be drilled individually. A cellular polyethylene adhesive seal for the rear of the sealing frame is supplied loose. Press onto the mounting plate with the door closed. |
| Dimensions | Width: 310 mmHeight: 450 mmDepth: 90 mm |
| To fit enclosure type | VX |
| IP protection category to IEC 60 529 | IP 55 |
| Packs of | 1 pc(s). |
| Net weight | 5.72 kg |
| Gross weight | 6.72 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177953109 |
| ETIM 9 | EC000327 |
| ECLASS 8.0 | 27409217 |
| Product description | SZ main switch installation adapter for door width 500 mm |
