Rittal

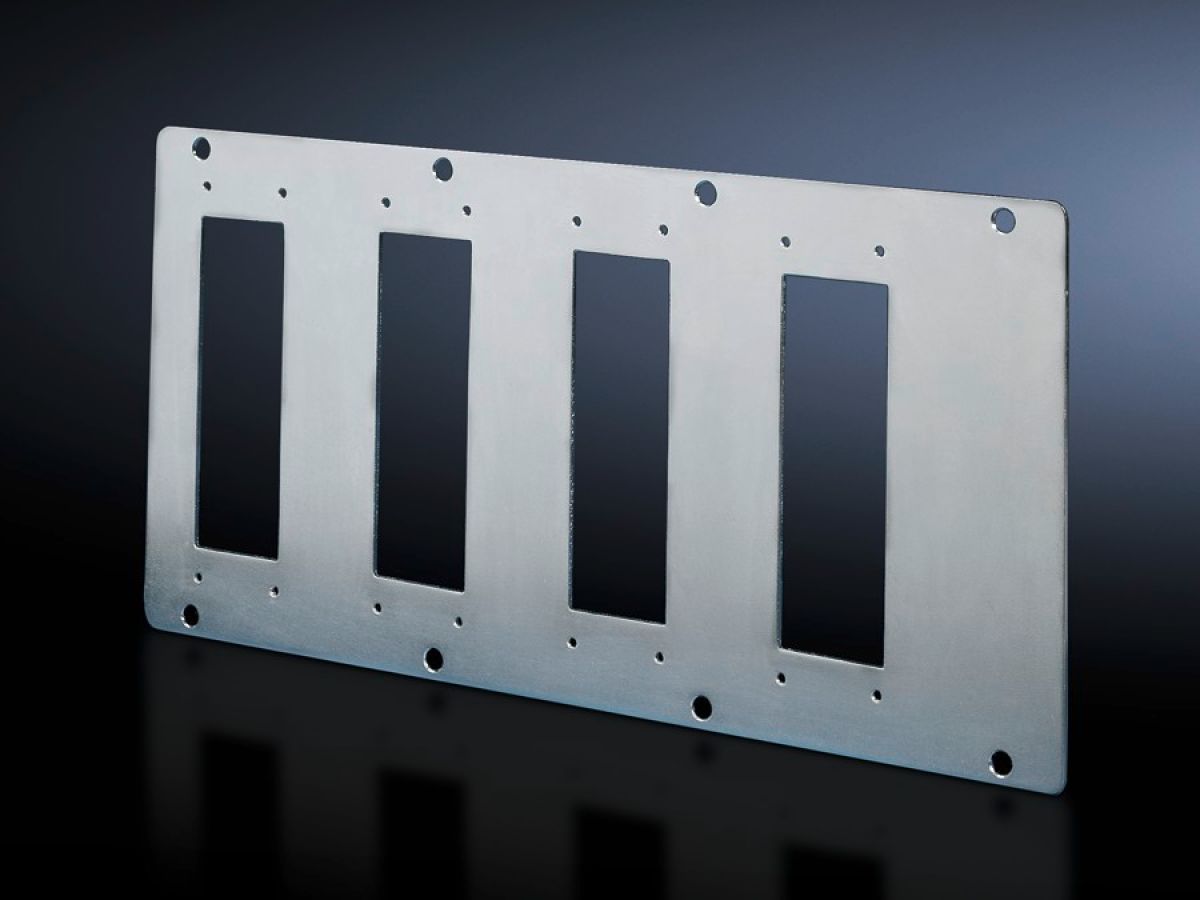

Rittal SZ 8609.140, Module plates for 16/24-pole connectors
Rittal SZ 8609.140, Module plates for 16/24-pole connectors
Regular price
€27,77
Regular price
Sale price
€27,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 8609.140
With cut-outs to accommodate connectors. In addition to mounting on divider panels, module plates may also be attached to the 25 mm pitch pattern of the enclosure and to the rails of the VX/TS system.
| Article number: | SZ 8609.140 |
| Design | for 24-pole connectors |
| Product description | With cut-outs to accommodate connectors. Module plates can be attached to divider panels for module plates. |
| Material | Sheet steel, 2 mm |
| Surface finish | Zinc-plated |
| Supply includes | Seal included |
| Number of cut-outs | 4 |
| Packs of | 1 pc(s). |
| Net weight | 0.66 kg |
| Gross weight | 0.68 kg |
| PCF per pack (cradle-to-gate) | 2.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177211766 |
| ETIM 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | TS Module panel, for 24-pole connectors |
