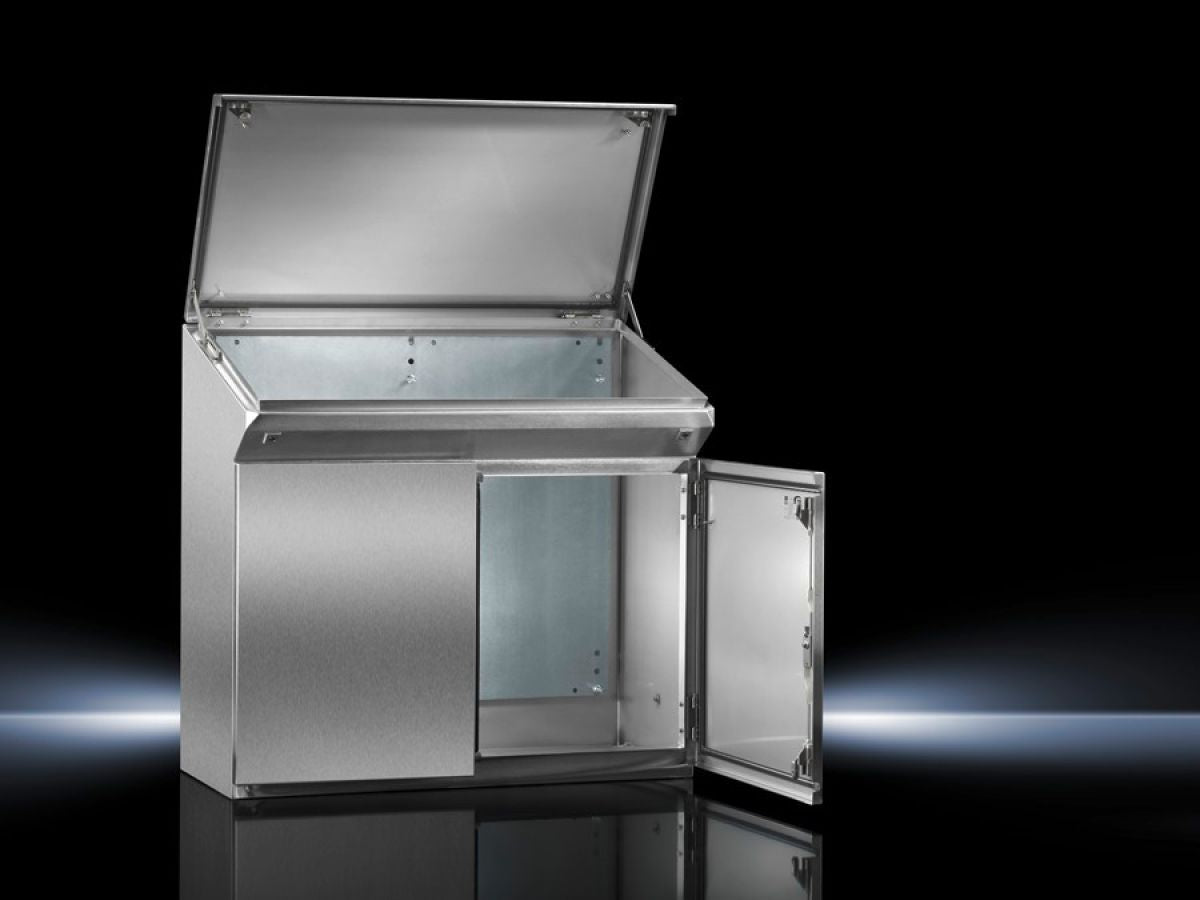

Rittal TP 2686.600, One-piece consoles Stainless steel
Rittal TP 2686.600, One-piece consoles Stainless steel
Regular price
€2.585,13
Regular price
Sale price
€2.585,13
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:TP 2686.600
Stainless steel one-piece consoles 1.4301, (AISI 304), ready-to-use unit with high protection category IP 55 in four different widths. Easy handling thanks to self-latching lid stay. Interchangeable lock insert. Easy cable entry thanks to divided gland plates
| Article number: | TP 2686.600 |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304), 1.5 mmDoor or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure, door, console lid and gland plates: Brushed, grain 400Mounting plate: Zinc-plated |
| Supply includes | Enclosure, solid back and sidesDoor or double door at front, with locking rodConsole lid with lid stay and cam lock latched in the enclosureLocks with double-bit insertGland plates, dividedMounting plate |
| Dimensions | Width: 1,200 mmHeight: 960 mm |
| Dimensions mounting plate (W x H) | 1,130 mm x 780 mm |
| Depth (top) | 480 mm |
| Depth (bottom) | 400 mm |
| Number of doors | 2 |
| IP protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Dimensions | Width: 1,200 mmHeight: 960 mmDepth (top): 480 mmDepth (bottom): 400 mm |
| Packs of | 1 pc(s). |
| Net weight | 83.1 kg |
| Gross weight | 90.3 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177031432 |
| ETIM 9 | EC000784 |
| ETIM 8 | EC000784 |
| ECLASS 8.0 | 27180504 |
| Product description | TP One-piece console, WHD: 1200x960x400/D2: 480 mm, stainless steel, 1.4301 |
